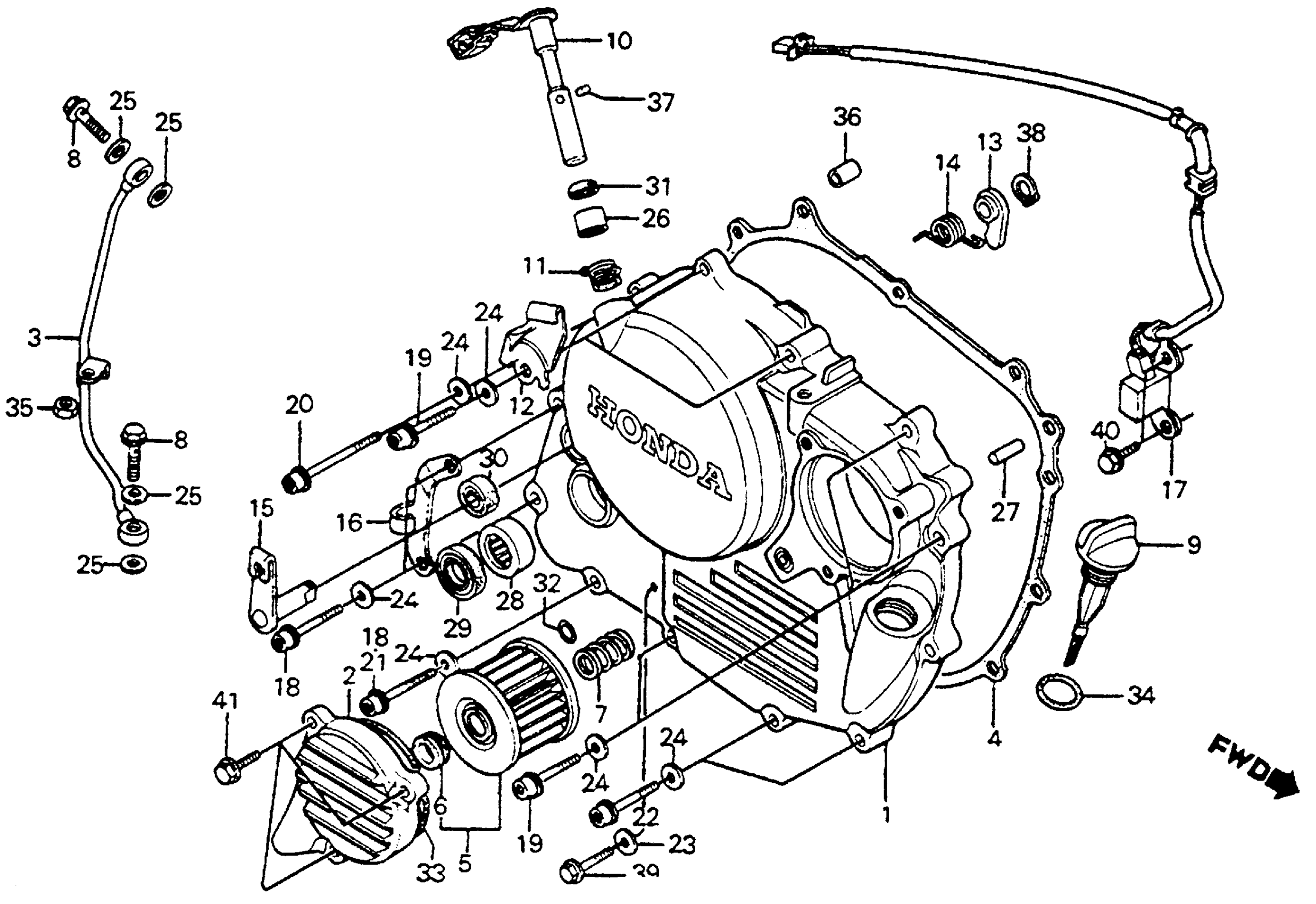

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-KF0-010.

11330-KF0-305

Unavailable

1

COVER, R. CRANKCASE (NA USE ALT:11330-KF0-305)

11330-KF0-020

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-KF0-305

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-KF0-770.

11330-KF0-305

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-KF0-000

Unavailable

3

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-KF0-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-KF0-000.

11394-KF0-306

Unavailable

4

GASKET, R. CRANKCASE COVER

11394-KF0-306

Unavailable

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.57

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.57

5

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.57

6

RUBBER, FILTER

15413-MC8-000

Unavailable

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

8

BOLT, FLANGE (7X23) This part replaces 15533-KF0-000.

15533-KL8-730

Unavailable

9

DIPSTICK, OIL This part replaces 15650-KF0-020.

15650-KR3-870

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE)

22810-KF0-000

Unavailable

11

SPRING, CLUTCH LEVER

22815-428-000

$3.14

12

HOLDER, CLUTCH CABLE (NOT AVAILABLE)

22838-KF0-000

Unavailable

13

FOLLOWER, CAM

28271-428-000

Unavailable

14

SPRING, FOLLOWER (NOT AVAILABLE)

28274-KF0-000

Unavailable

15

SHAFT, FOLLOWER

28280-KF0-000

Unavailable

16

RECEIVER B, DECOMPRESSION (NOT AVAILABLE)

28287-KF0-000

Unavailable

17

GENERATOR ASSY., PULSE (NOT AVAILABLE) This part replaces 30300-KG0-000.

30300-KG0-003

Unavailable

17

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-KG0-003

Unavailable

18

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.53

19

BOLT, FLANGE SOCKET (6X28)

90092-KF0-000

Unavailable

20

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.14

21

BOLT, FLANGE SOCKET (6X25)

90097-KF0-000

Unavailable

22

BOLT, FLANGE SOCKET (6X28)

90098-KF0-000

$3.56

24

WASHER, LOCK

90433-KF0-000

Unavailable

25

WASHER, SEALING (7MM)

90441-MC0-000

$2.21

26

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

26

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

27

PIN, DOWEL (6X19)

91101-KF0-000

$3.53

28

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-000.

91051-V19-003

$18.88

28

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$18.88

29

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.23

29

OIL SEAL (20X28X5)

91204-KF0-003

$6.23

29

OIL SEAL (20X28X5) This part replaces 91204-KF0-004.

91204-KF0-003

$6.23

30

OIL SEAL (12X22X5) This part replaces 91203-MC8-003.

91201-965-000

$3.87

30

OIL SEAL (12X22X5)

91201-965-000

$3.87

31

OIL SEAL (12X17X2.5) (ARAI)

91255-KF0-003

$4.89

31

OIL SEAL (12X17X2.5) (ARAI) This part replaces 91255-KF0-004.

91255-KF0-003

$4.89

32

GASKET, RUBBER (9.8MM)

91301-KF0-000

$3.74

33

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

34

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

34

O-RING (18X3)

91307-035-000

$2.75

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

35

NUT, HEX. (6MM)

94001-06200-0S

$1.31

36

PIN, DOWEL (8X20)

94301-08200

$2.76

37

PIN, SPRING (3X10)

94305-30102

$1.74

38

CIRCLIP (OUTER) (10MM)

94510-10000

$1.09

40

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

Unavailable

40

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

41

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.25

41

BOLT, FLANGE (6X20)

96001-06020-07

$1.25
