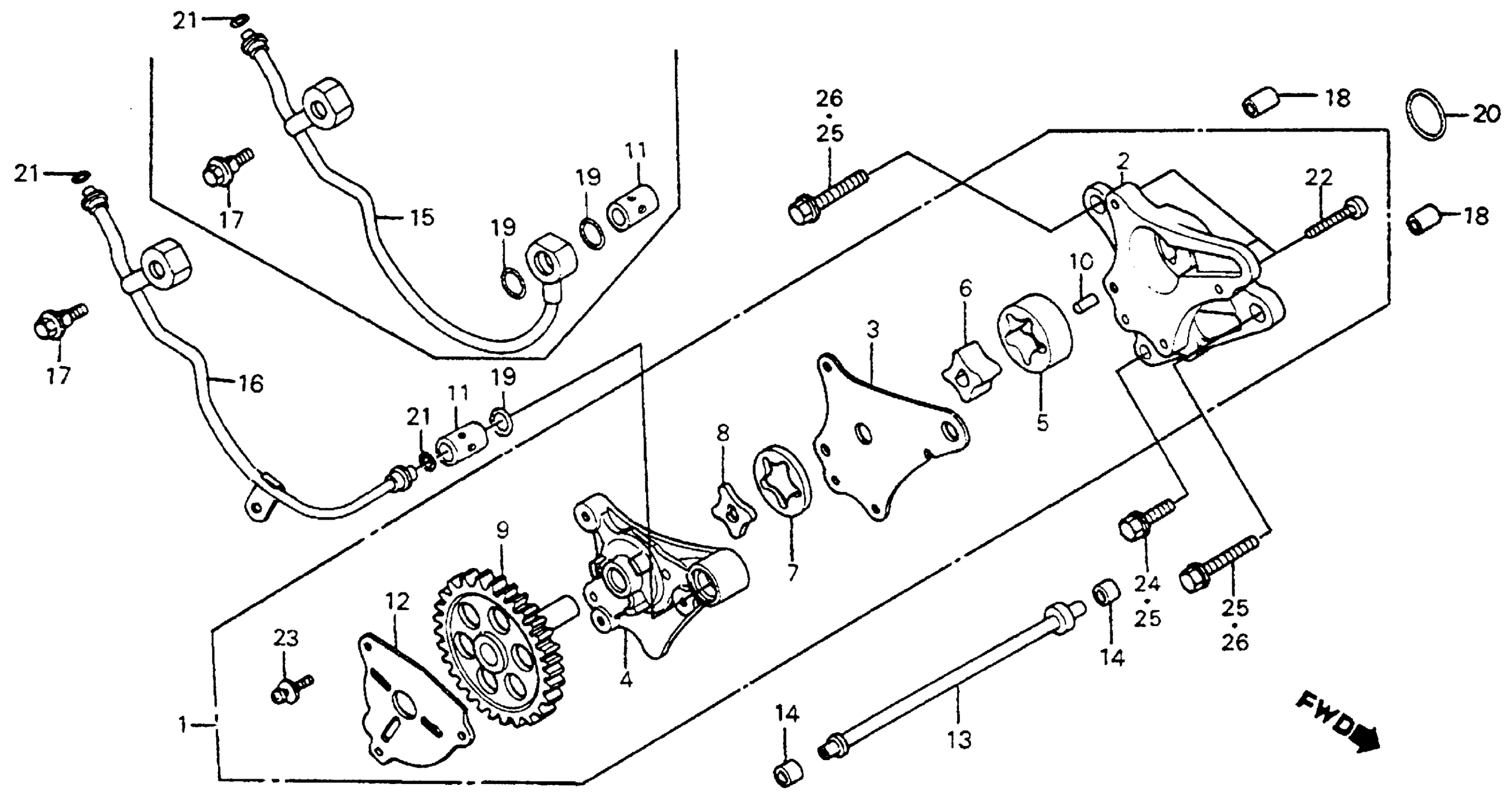

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 OIL PUMP 84 Diagram

#

Description
Price

1

PUMP SET, OIL | Use from Engine SN 5106061 This part replaces 15100-KF0-010.

15100-KG0-305

Unavailable

1

PUMP ASSY., OIL (NOT AVAILABLE) | Use up to Engine SN 5106060

15100-KG0-000

Unavailable

2

BODY, OIL PUMP | Use from Engine SN 5106061 This part replaces 15111-KF0-010.

15111-KAS-900

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 5106060

15111-KG0-000

Unavailable

3

PLATE, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 5106061

15112-KF0-000

Unavailable

3

PLATE, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 5106060

15112-KG0-000

Unavailable

4

COVER, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 5106061

15121-KF0-010

Unavailable

4

COVER, OIL PUMP | Use up to Engine SN 5106060

15121-KG0-000

Unavailable

5

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$30.62

6

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$23.70

7

ROTOR B, OIL PUMP (OUTER)

15124-KG0-000

Unavailable

8

ROTOR B, OIL PUMP (INNER)

15125-KG0-000

Unavailable

9

GEAR, OIL PUMP DRIVEN (NOT AVAILABLE) | Use from Engine SN 5106061

15140-KF0-010

Unavailable

9

GEAR, OIL PUMP DRIVEN (34T) (NOT AVAILABLE) | Use up to Engine SN 5106060

15140-KG0-000

Unavailable

10

ROLLER (6X8)

15141-KF0-000

$4.51

11

PIN, DOWEL (10X18) (NOT AVAILABLE)

15142-KF0-000

Unavailable

12

COVER, OIL PUMP GEAR (NOT AVAILABLE) | Use from Engine SN 5106061

15145-KF0-000

Unavailable

13

PIPE, OIL DRAW

15151-KG0-000

Unavailable

14

GASKET, OIL DRAW PIPE

15152-KG0-003

Unavailable

15

PIPE, OIL | Use up to Engine SN 5106060 This part replaces 15510-KF0-000.

15510-KF0-010

Unavailable

15

PIPE, OIL | Use up to Engine SN 5106060

15510-KF0-010

Unavailable

16

PIPE, OIL | Use from Engine SN 5106061 This part replaces 15510-KF0-770.

15510-KF0-771

Unavailable

17

BOLT, FLANGE (7X23) (NOT AVAILABLE)

15532-KF0-000

Unavailable

18

PIN, DOWEL (8X10)

91103-429-000

$2.56

19

O-RING (10X1.6) | Use up to Engine SN 5106060

91301-200-000

$3.01

19

O-RING (10X1.6) | Use from Engine SN 5106061

91301-200-000

$3.01

20

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

21

O-RING (4.5X1.5) (NOT AVAILABLE) | Use up to Engine SN 5106060

91351-KF0-003

$1.89

22

SCREW, PAN (5X22)

93500-05022-0A

$1.49

23

SCREW-WASHER (5X16) | Use from Engine SN 5106061

93892-05016-00

$1.49

24

BOLT, FLANGE (6X20) | Use up to Engine SN 5106060 This part replaces 95700-06020-08.

95701-06020-08

$1.49

24

BOLT, FLANGE (6X20) | Use up to Engine SN 5106060

95701-06020-08

$1.49

25

BOLT, FLANGE (6X22) | Use up to Engine SN 5106060 This part replaces 95700-06022-08.

95701-06022-08

$1.72

25

BOLT, FLANGE (6X22) | Use from Engine SN 5106061 This part replaces 95700-06022-08.

95701-06022-08

$1.72

25

BOLT, FLANGE (6X22) | Use up to Engine SN 5106060

95701-06022-08

$1.72

25

BOLT, FLANGE (6X22) | Use from Engine SN 5106061

95701-06022-08

$1.72

26

BOLT, FLANGE (6X50) | Use from Engine SN 5106061 This part replaces 95700-06050-08.

95701-06050-08

$2.16

26

BOLT, FLANGE (6X50) | Use from Engine SN 5106061

95701-06050-08

$2.16
