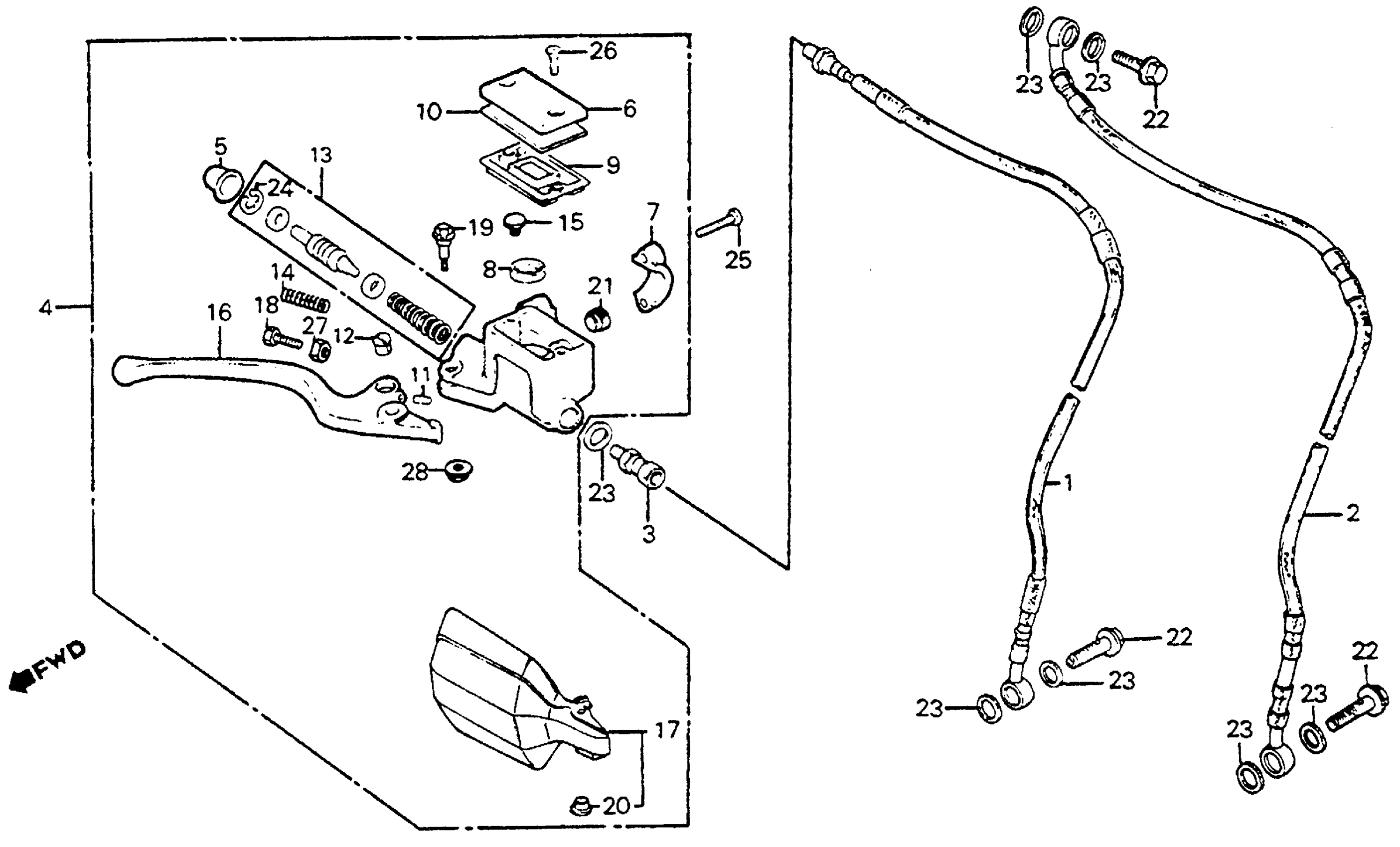

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 FRONT BRAKE MASTER CYLINDER 84-85 Diagram

#

Description
Price

1

HOSE, FR. BRAKE (NOT AVAILABLE) This part replaces 45125-KF0-771.

45125-KF0-773

Unavailable

1

HOSE, FR. BRAKE (NOT AVAILABLE) This part replaces 45125-KF0-772.

45125-KF0-773

Unavailable

1

HOSE, FR. BRAKE (NOT AVAILABLE)

45125-KF0-773

Unavailable

3

JOINT, BRAKE HOSE (NOT AVAILABLE) This part replaces 45127-MG3-003.

45127-MG3-013

Unavailable

3

JOINT, BRAKE HOSE (NOT AVAILABLE)

45127-MG3-013

Unavailable

4

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MG3-407)

45500-MG3-771

Unavailable

5

BOOT

45504-410-003

$12.16

6

CAP, MASTER CYLINDER (NOT AVAILABLE)

45513-MG3-672

Unavailable

7

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

8

SEPARATOR

45518-MG3-016

$12.02

9

DIAPHRAGM

45520-GE2-006

$9.58

9

DIAPHRAGM

45520-MG7-006

$10.61

11

ROD, PUSH (NOT AVAILABLE)

45526-KK1-771

Unavailable

11

ROD, PUSH This part replaces 45526-MG3-006.

45526-KK1-771

Unavailable

12

PIN, ADJ.

45527-MG3-006

Unavailable

13

MASTER CYLINDER SET

45530-HB9-006

Unavailable

13

MASTER CYLINDER SET This part replaces 45530-MG3-305.

45530-HB9-006

Unavailable

16

LEVER, R. HANDLEBAR This part replaces 53175-MG3-000.

53175-MG3-405

Unavailable

17

GUARD, R. KNUCKLE *R119* (FLASH RED) (NOT AVAILABLE)

53180-KF0-770ZA

Unavailable

19

BOLT, HANDLE LEVER PIVOT

90113-KF0-770

$5.73

20

COLLAR (6X4)

90127-KF0-770

$3.42

21

BOLT, PLUG (NOT AVAILABLE)

90130-MG3-006

Unavailable

22

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

22

BOLT, OIL

90145-300-010

$9.68

22

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

CIRCLIP

90651-MA5-671

$2.66

25

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, PAN (6X25)

93500-06025-0A

$1.49

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49
