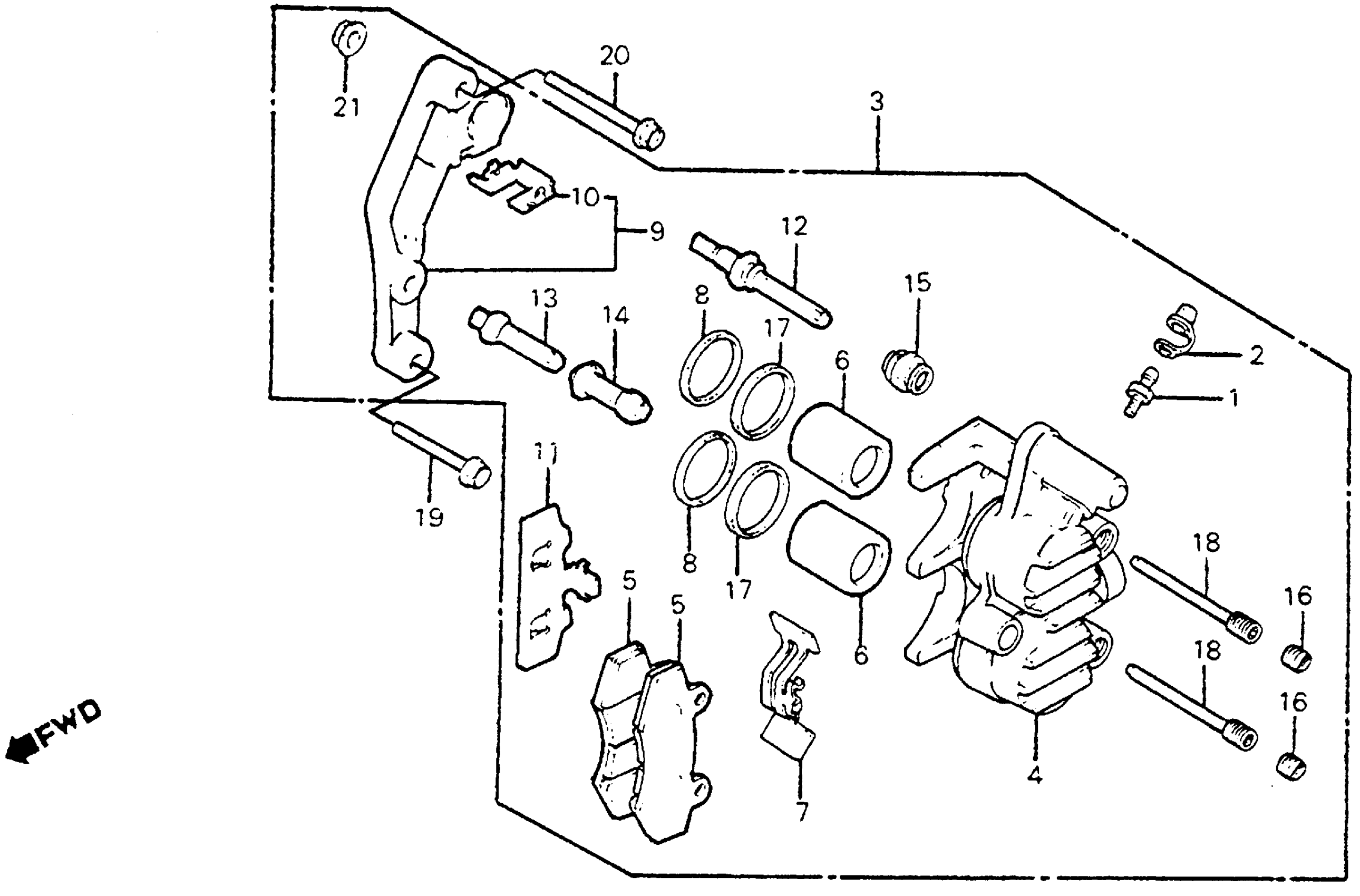

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 FRONT BRAKE CALIPER 84-85 Diagram

BRAKE PAD KIT

451A0-MG3-670

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-MG3-006.

45100-MG3-016

Unavailable

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MG3-016

Unavailable

CALIPER, L. FR. (NOT AVAILABLE)

45101-MG3-006

Unavailable

PAD (SEE KIT P/N--END OF BLOCK)

45105-MG3-006

Unavailable

PISTON This part replaces 45107-MG3-006.

45107-MG3-016

$41.28

PISTON

45107-MG3-016

$41.28

SPRING, PAD

45108-GE2-006

Unavailable

DUST SEAL

45109-GE2-006

$5.31

BRACKET, L. FR.

45110-MG3-006

Unavailable

RETAINER

45112-MG3-006

$7.27

SHIM (NOT AVAILABLE)

45116-MG3-006

Unavailable

BOLT A, PIN

45131-MG3-006

Unavailable

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

PLUG, PIN

45203-MG3-016

$5.12

SEAL, PISTON

45209-GE2-006

$6.91

PIN, HANGER This part replaces 45215-GE2-006.

45215-GE2-016

$11.52

PIN, HANGER

45215-GE2-016

$11.52

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$2.02

BOLT, FLANGE (8X50) This part replaces 90132-MG3-000.

95801-08050-00

$2.98

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

NUT, FLANGE (8MM)

94050-08080

$1.49
