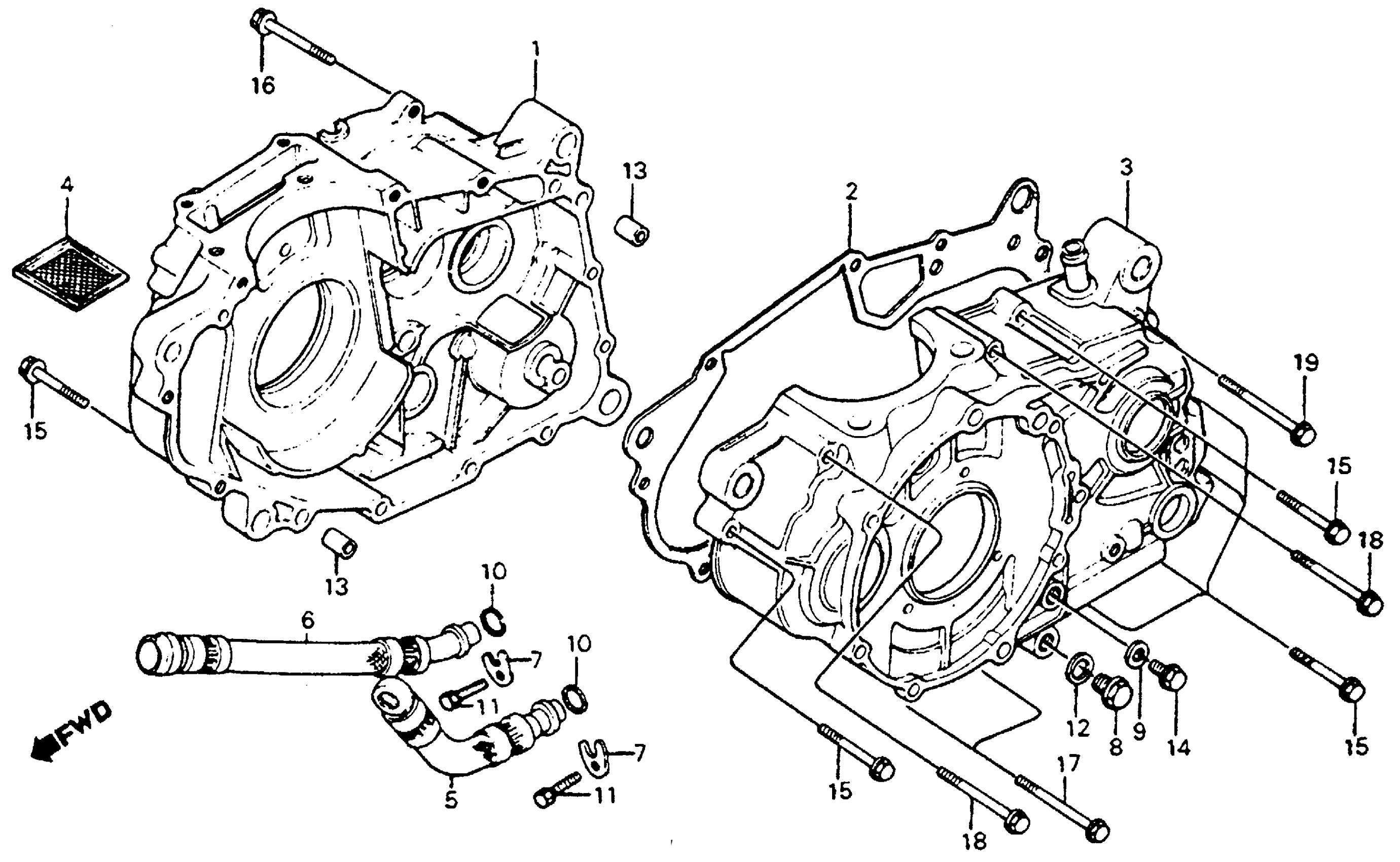

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 CRANKCASE Diagram

CRANKCASE, R. (NOT AVAILABLE) This part replaces 11100-KF0-000.

11100-KF0-010

Unavailable

CRANKCASE, R. (NOT AVAILABLE)

11100-KF0-010

Unavailable

GASKET, CRANKCASE This part replaces 11191-KF0-000.

11191-KF0-306

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-KF0-000

Unavailable

SCREEN, OIL FILTER

15421-428-000

$17.82

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

WASHER, OIL BOLT

90545-MC0-000

$3.39

WASHER, OIL BOLT

90545-300-000

$3.99

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (10X16)

95701-10016-07

$2.14

BOLT, FLANGE (10X16) This part replaces 95900-10016-07.

95701-10016-07

$2.14

BOLT, FLANGE SOCKET (6X35)

90092-MG3-000

$3.69

BOLT, FLANGE SOCKET (6X45)

90093-MG3-000

$4.89

BOLT, FLANGE SOCKET (6X50)

90094-MG3-000

Unavailable

BOLT, FLANGE SOCKET (6X60)

90094-KG0-000

Unavailable

BOLT, FLANGE SOCKET (6X65) (NOT AVAILABLE)

90095-KG0-000

Unavailable
