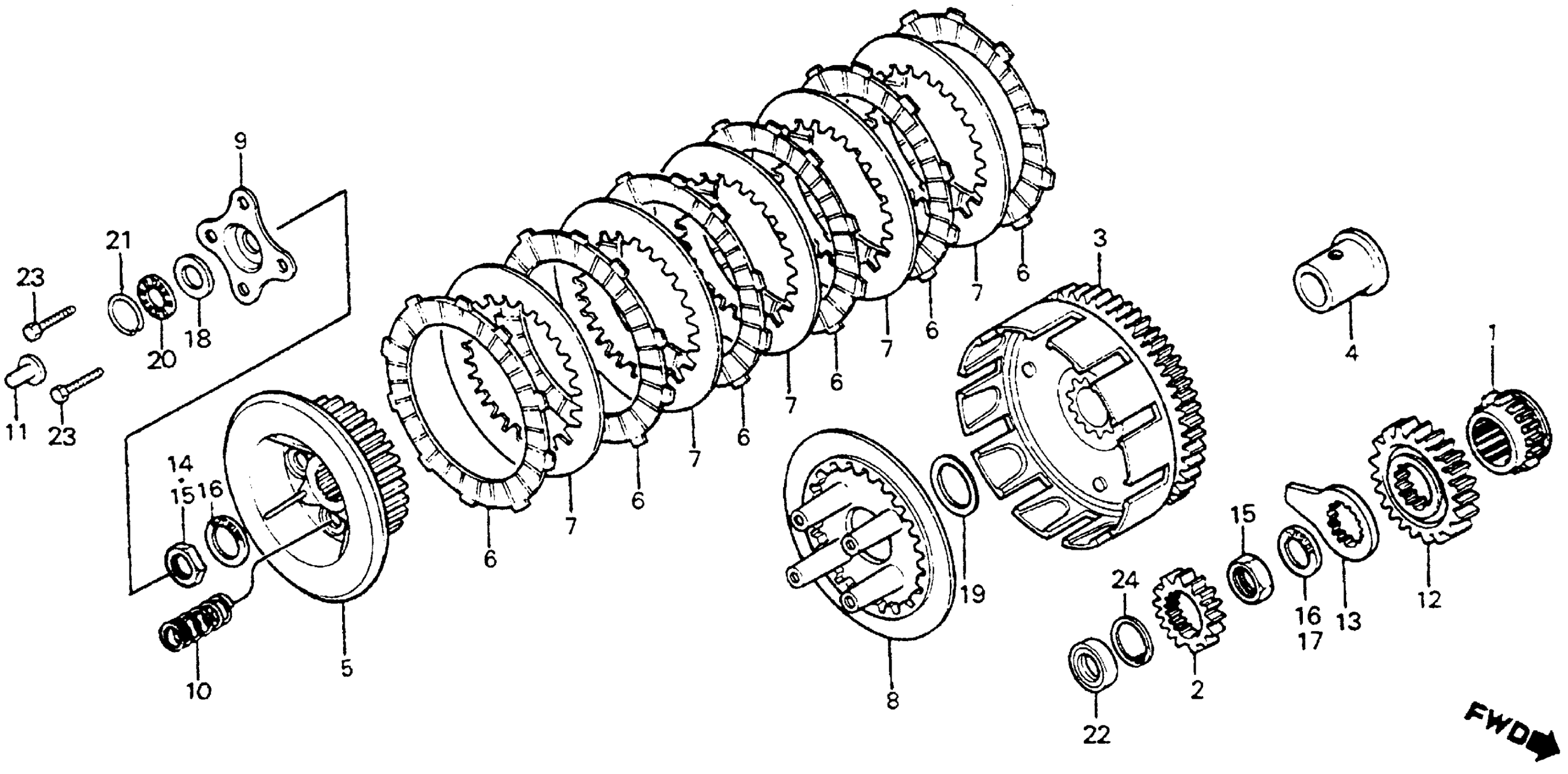

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING (NOT AVAILABLE)

14312-KF0-000

$43.72

2

GEAR, OIL PUMP DRIVE (17T)

15130-KF0-000

Unavailable

3

CLUTCH (OUTER) This part replaces 22100-KF0-000.

22100-KN5-671

Unavailable

3

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KN5-671

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-KF0-000

$29.02

5

CENTER, CLUTCH | Use up to Engine SN 5102667 This part replaces 22120-KF0-000.

22120-KF0-305

Unavailable

5

CENTER, CLUTCH | Use from Engine SN 5102668 This part replaces 22120-KF0-010.

22120-KN5-670

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 5102668

22120-KN5-670

Unavailable

6

DISK, CLUTCH FRICTION

22201-KAE-000

$19.37

6

DISK, CLUTCH FRICTION This part replaces 22201-KA3-712.

22201-KAE-000

$19.37

7

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$14.92

7

PLATE, CLUTCH

22321-KF0-770

$14.92

8

PLATE, CLUTCH PRESSURE This part replaces 22350-KF0-000.

22350-KW3-000

$71.20

8

PLATE, CLUTCH PRESSURE

22350-KW3-000

$71.20

9

PLATE, CLUTCH LIFTER

22361-KF0-000

Unavailable

10

SPRING, CLUTCH

22401-KF0-010

$5.39

11

PIN, CLUTCH LIFTER (NOT AVAILABLE)

22820-KF0-000

Unavailable

12

GEAR, PRIMARY DRIVE (23T) (NOT AVAILABLE)

23121-KF0-000

Unavailable

13

ROTOR, PULSE GENERATOR This part replaces 30220-KG0-003.

30220-KG0-013

Unavailable

13

ROTOR, PULSE GENERATOR (NOT AVAILABLE)

30220-KG0-013

Unavailable

14

NUT (18MM)

90235-KA4-000

$11.09

15

NUT, LOCK (18MM)

90235-428-000

Unavailable

16

WASHER, LOCK

90432-KF0-000

$9.63

18

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

19

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

20

BEARING, NEEDLE (12MM) (THOMPSON)

91001-147-006

$13.34

21

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-000.

91201-HM3-A61

$2.99

22

OIL SEAL (14X22X5) (ARAI)

91201-HM3-A61

$2.99

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-004.

91201-HM3-A61

$2.99

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-005.

91201-HM3-A61

$2.99

23

BOLT, HEX. (6X22) This part replaces 92022-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92022-06022-0A.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
