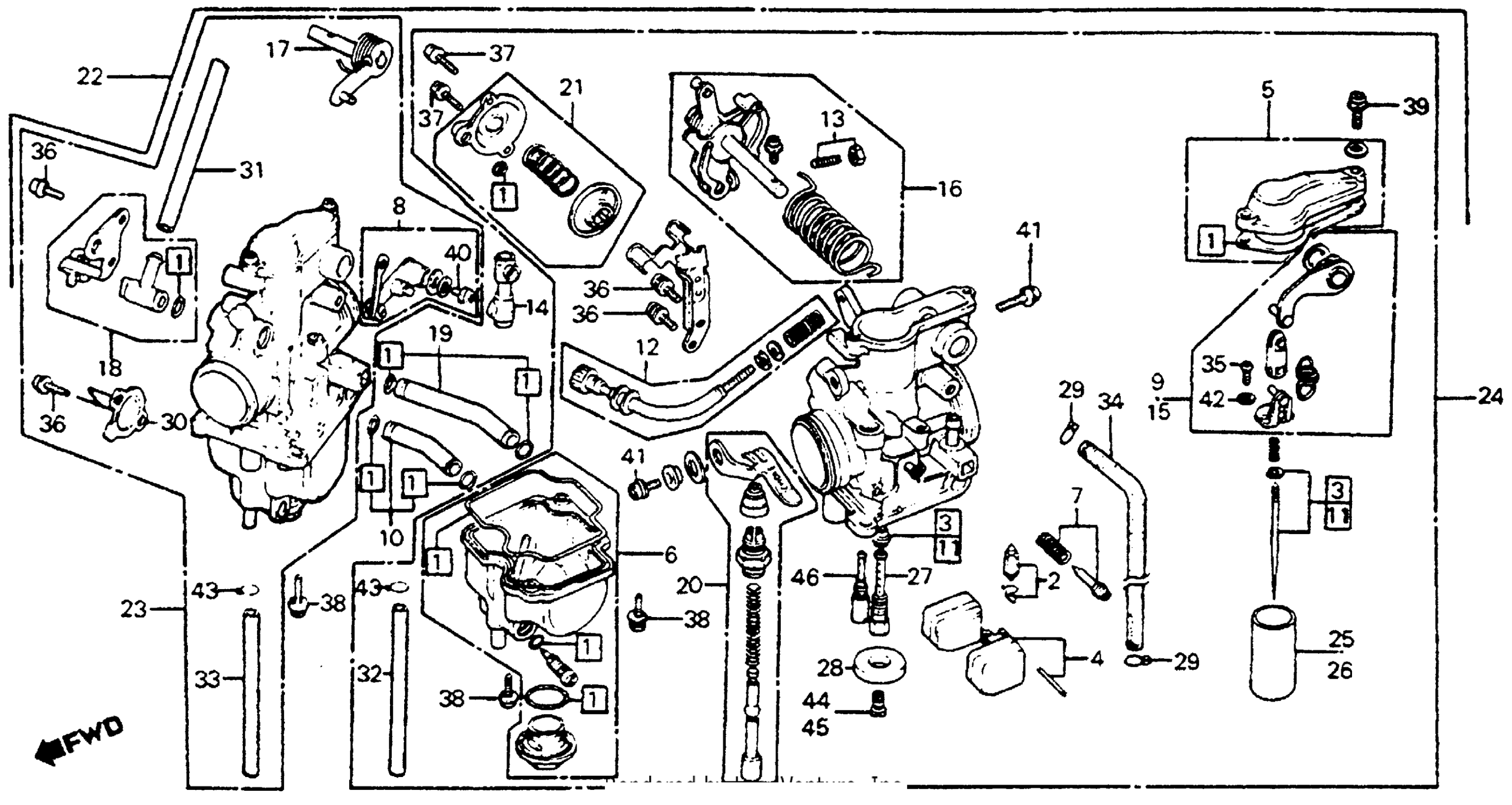

Honda XR350RA (84) MOTORCYCLE, JPN, VIN# JH2NE010-EM100006 TO JH2NE010-EM105444 CARBURETOR 83-84 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-KF0-004.

16010-KF0-305

$37.66

1

GASKET SET

16010-KF0-305

$37.66

2

VALVE SET, FLOAT

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, PRIMARY JET (NOT AVAILABLE)

16012-KF0-004

Unavailable

4

FLOAT SET This part replaces 16013-GC4-701.

16013-KG0-891

Unavailable

4

FLOAT SET

16013-KG0-891

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-KF0-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KF0-004

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-KF0-004

Unavailable

8

LEVER SET, LINK (NOT AVAILABLE)

16017-KF0-004

Unavailable

9

ARM SET, SECONDARY LINK (NOT AVAILABLE)

16018-KF0-004

Unavailable

10

JOINT SET, FUEL

16026-KF0-004

Unavailable

11

NEEDLE SET, SECONDARY JET (NOT AVAILABLE)

16027-KF0-771

Unavailable

12

SCREW SET (NOT AVAILABLE)

16028-KF0-004

Unavailable

13

SCREW SET This part replaces 16029-KF0-004.

16029-KG0-004

Unavailable

13

SCREW SET

16029-KG0-004

Unavailable

14

HOLDER SET, ADJ. (NOT AVAILABLE)

16030-KF0-004

Unavailable

15

ARM SET, PRIMARY LINK (NOT AVAILABLE)

16031-KF0-004

Unavailable

16

LINK SET, PRIMARY THROTTLE (NOT AVAILABLE)

16032-KF0-004

Unavailable

17

LINK SET, SECONDARY THROTTLE (NOT AVAILABLE)

16035-KF0-004

Unavailable

18

JOINT SET, FUEL (NOT AVAILABLE)

16037-KF0-004

Unavailable

19

JOINT SET, FUEL This part replaces 16042-KF0-004.

16042-KK0-771

$14.52

19

JOINT SET, FUEL (NOT AVAILABLE)

16042-KK0-771

$14.52

20

VALVE SET, STARTER (NOT AVAILABLE)

16046-KF0-004

Unavailable

21

VALVE SET, AIR CUT This part replaces 16048-KF0-004.

16048-MG2-305

Unavailable

22

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 5106283

16100-KF0-771

Unavailable

22

CARBURETOR ASSY. | Use from Engine SN 5106284

16100-KF0-772

Unavailable

22

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 5106284

16100-KF0-773

Unavailable

23

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-KF0-771

Unavailable

24

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-KF0-771

Unavailable

25

VALVE, PRIMARY THROTTLE (NOT AVAILABLE)

16111-KF0-004

Unavailable

26

VALVE, SECONDARY THROTTLE (NOT AVAILABLE)

16112-KF0-771

Unavailable

27

HOLDER, NEEDLE JET This part replaces 16165-KF0-771.

16165-KL3-671

Unavailable

27

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-KL3-671

Unavailable

28

HOLDER, JET (NOT AVAILABLE)

16168-KF0-004

Unavailable

29

CLIP, TUBE

16179-KE5-004

Unavailable

30

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

31

PIPE, L. AIR VENT This part replaces 16195-KF0-004.

16195-KE8-405

Unavailable

32

PIPE, OVERFLOW This part replaces 16198-KF0-014.

16198-ML4-405

Unavailable

32

PIPE, OVERFLOW (400MM)

16198-ML4-405

Unavailable

33

TUBE, OVERFLOW (440MM)

16198-ML4-405

Unavailable

33

PIPE, OVERFLOW This part replaces 16199-KF0-004.

16198-ML4-405

Unavailable

34

TUBE, AIR VENT This part replaces 16199-KF0-771.

16199-MG3-405

Unavailable

35

SCREW, PAN (3X8)

93500-03008-0H

$1.49

36

SCREW-WASHER (4X10)

93892-04010-08

$1.49

36

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

37

SCREW-WASHER (4X12)

93892-04012-08

$1.49

37

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

38

SCREW-WASHER (4X14)

93892-04014-08

$1.49

38

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

39

SCREW-WASHER (4X16)

93892-04016-08

$1.49

39

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

40

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

41

SCREW-WASHER (5X14)

93892-05014-08

$1.49

41

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

42

WASHER, SPRING (3MM)

94111-03800

$1.49

43

CLIP, TUBE (B8)

95002-02080

$1.80

44

JET, MAIN (#115) | Use up to Engine SN PH02A A

99101-357-1150

$18.70

44

JET, MAIN (#115) | Use from Engine SN PH05A B

99101-357-1150

$18.70

46

JET, SLOW (#42)

99103-MG3-0420

Unavailable
