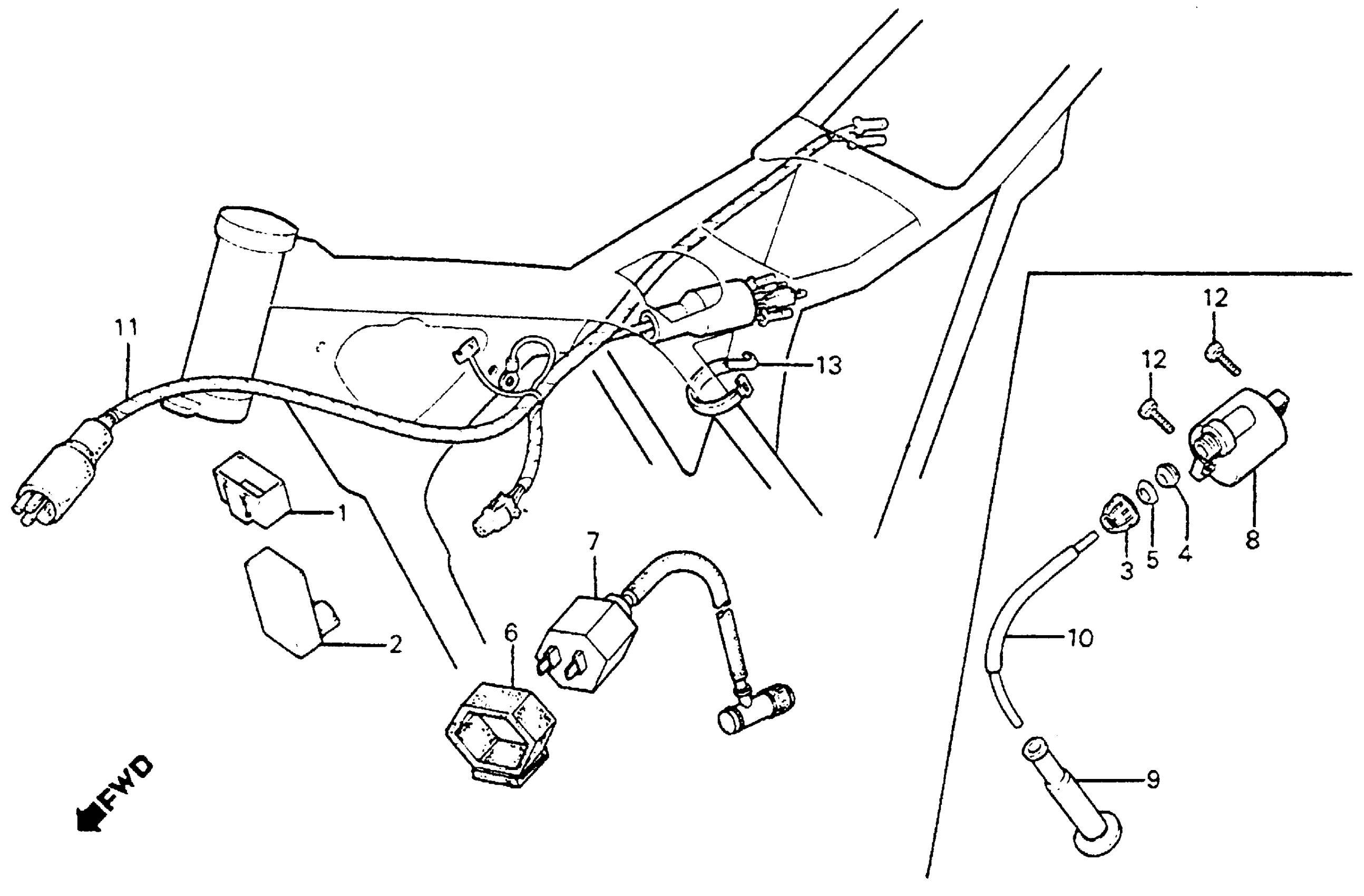

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 WIRE HARNESS + C.D.I. UNIT + IGNITION COIL 83-84 Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$5.75

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KF0-003

Unavailable

3

CAP, SCREW (NOT AVAILABLE)

30501-428-003

Unavailable

4

SEAL, RUBBER (NOT AVAILABLE)

30502-428-003

Unavailable

5

WASHER, CAP (NOT AVAILABLE)

30503-428-003

Unavailable

8

COIL, IGNITION (NOT AVAILABLE)

30510-167-003

Unavailable

9

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$17.99

9

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$17.99

9

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$17.99

10

WIRE, IGNITION

30750-MA0-P00

Unavailable

10

WIRE, IGNITION This part replaces 30750-MA0-000.

30750-MA0-P00

Unavailable

10

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

10

WIRE, IGNITION This part replaces 30750-167-013.

30750-MA0-P00

Unavailable

11

WIRE HARNESS (NOT AVAILABLE)

32100-KF0-000

Unavailable

12

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$0.68

12

BOLT, HEX. (5X16)

92101-05016-0A

$0.68

13

BAND B1, WIRE

32161-404-000

$2.13

13

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.13
