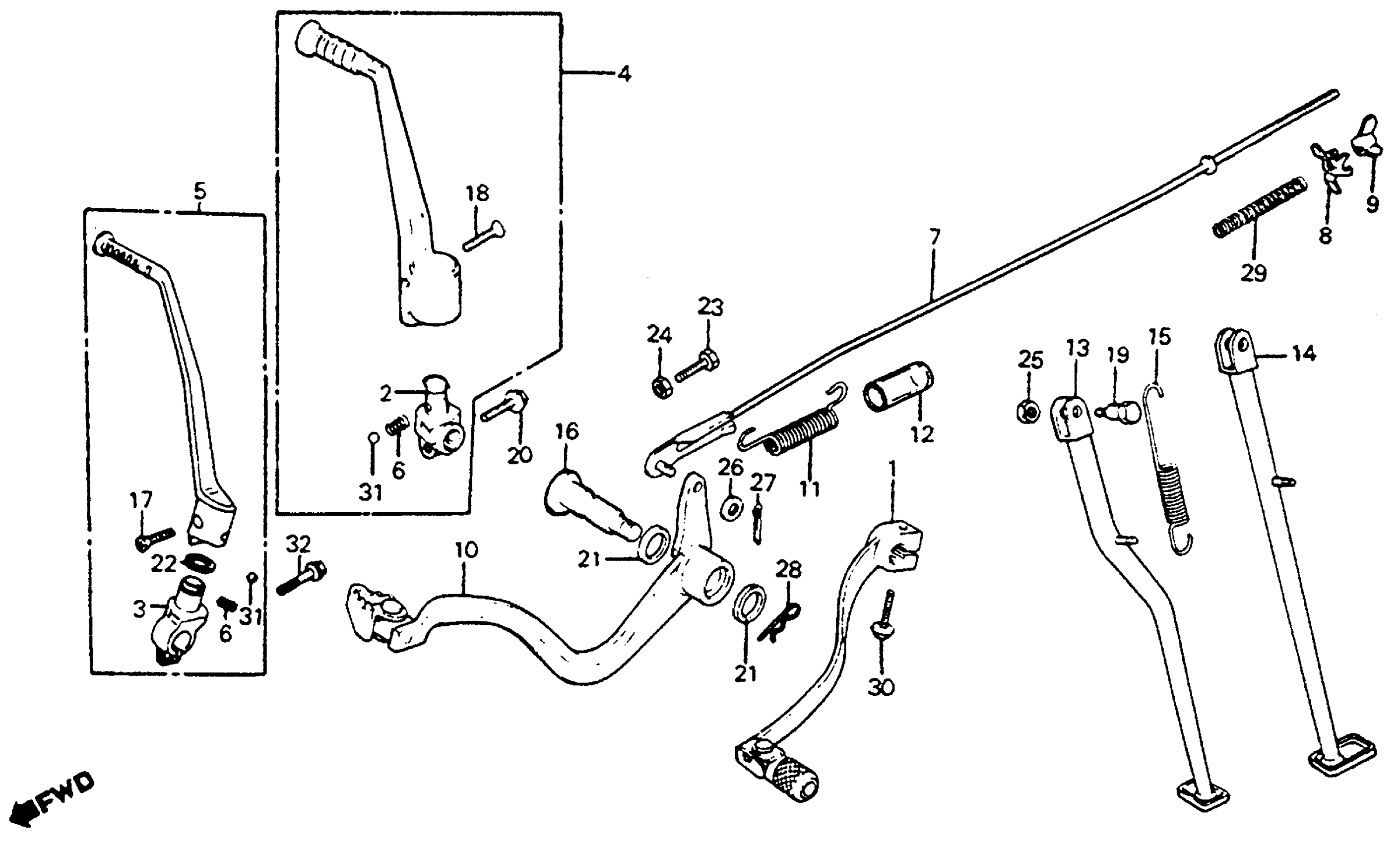

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-KF0-000.

24700-KF0-770

Unavailable

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KF0-770

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28241-KF0-000

Unavailable

ARM ASSY., KICK STARTER This part replaces 28300-KF0-000.

28300-KF0-010

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-KF0-010

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KF0-000

Unavailable

PLATE, BRAKE CABLE FIXING (NOT AVAILABLE)

43454-MA0-000

Unavailable

NUT, BRAKE ADJUSTING

43459-434-000

$15.27

PEDAL, BRAKE (NOT AVAILABLE)

46500-KF0-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46511-KF0-000

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-KF0-000

Unavailable

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

BOLT, RR. BRAKE PIVOT (NOT AVAILABLE)

90101-KF0-000

Unavailable

BOLT, KICK ARM

90101-329-000

$3.67

SCREW, SIDE STAND PIVOT This part replaces 90108-429-000.

90108-KL8-710

Unavailable

BOLT, FLANGE (8X28) This part replaces 90215-KF0-000.

96400-08028-00

$1.85

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

BOLT, HEX. (6X25) (NOT AVAILABLE)

92225-06025-0A

Unavailable

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (10MM)

94031-10000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, SPLIT (2.5X18)

94201-25180

Unavailable

PIN, LOCK (12MM)

94251-12400

Unavailable

SPRING A, BRAKE ROD

95014-73100

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
