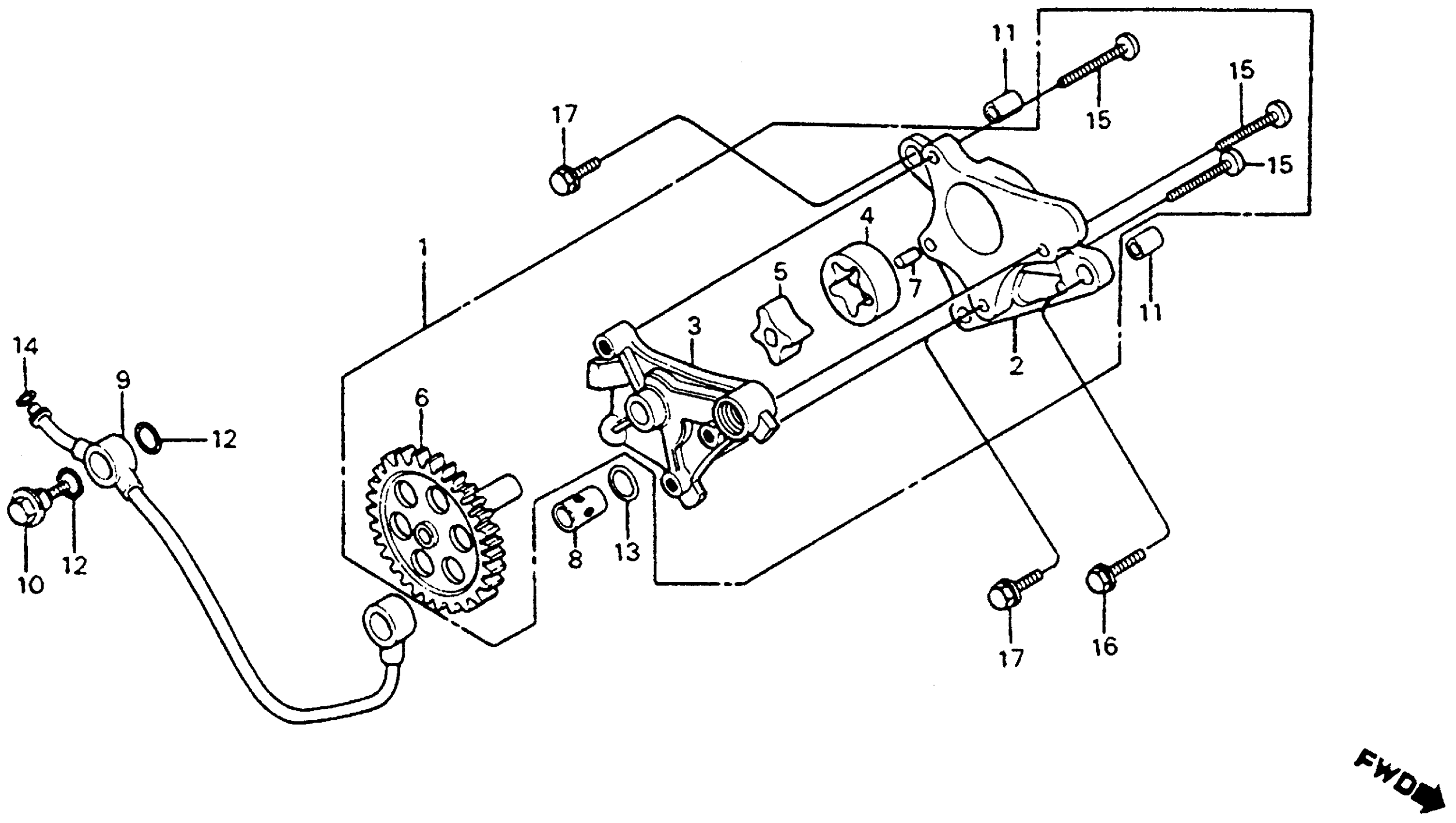

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 OIL PUMP 83 Diagram

PUMP ASSY., OIL (NOT AVAILABLE)

15100-KF0-000

Unavailable

BODY, OIL PUMP (NOT AVAILABLE)

15111-KF0-000

Unavailable

COVER, OIL PUMP (NOT AVAILABLE)

15121-KF0-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15122-KF0-000

$30.62

ROTOR, OIL PUMP (INNER)

15123-KF0-000

$23.70

GEAR, OIL PUMP DRIVEN (NOT AVAILABLE)

15140-KF0-000

Unavailable

ROLLER (6X8)

15141-KF0-000

$4.51

PIN, DOWEL (10X18) (NOT AVAILABLE)

15142-KF0-000

Unavailable

PIPE, OIL This part replaces 15510-KF0-000.

15510-KF0-010

Unavailable

PIPE, OIL

15510-KF0-010

Unavailable

BOLT, FLANGE (7X23) (NOT AVAILABLE)

15532-KF0-000

Unavailable

PIN, DOWEL (8X10)

91103-429-000

$2.56

O-RING (10X1.6)

91301-200-000

$3.01

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

O-RING (4.5X1.5) (NOT AVAILABLE)

91351-KF0-003

$1.89

SCREW, PAN (5X22)

93500-05022-0A

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X22) This part replaces 95700-06022-18.

95701-06022-08

$1.72

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
