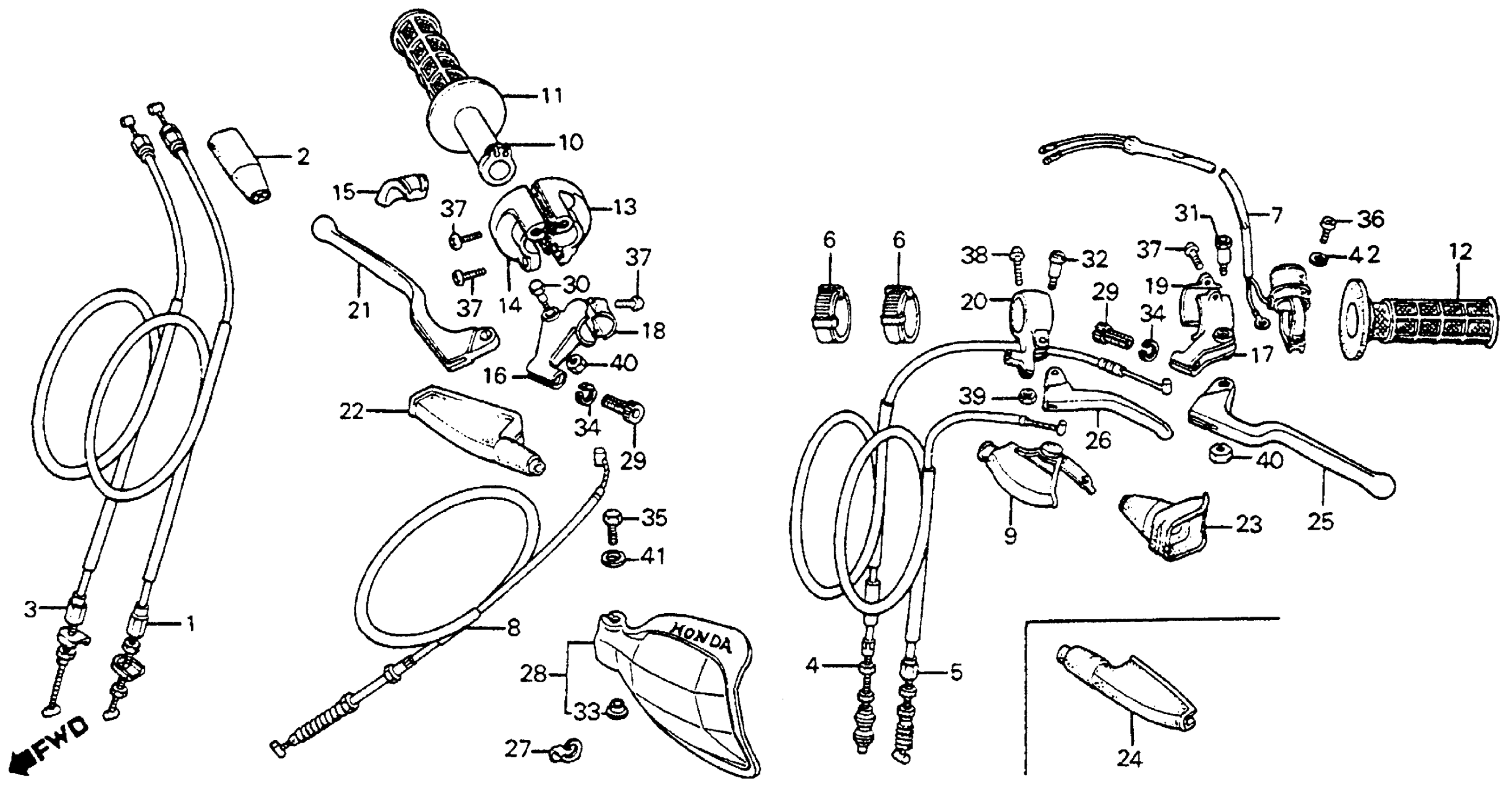

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE) This part replaces 17910-KF0-000.

17910-KF0-770

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

3

CABLE B THROTTLE This part replaces 17920-KF0-000.

17920-KF0-405

Unavailable

4

CABLE, CLUTCH (NOT AVAILABLE)

22870-KF0-000

Unavailable

5

CABLE, DECOMPRESSION (NOT AVAILABLE)

22890-KF0-000

Unavailable

6

BAND B1, WIRE

32161-404-000

$2.23

7

SWITCH ASSY., STOP This part replaces 35130-KA2-003.

35130-KT0-670

Unavailable

7

SWITCH ASSY., STOP

35130-KT0-670

Unavailable

8

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-KF0-010

Unavailable

9

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$15.79

10

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-KF0-000

Unavailable

11

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

12

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$9.44

12

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

13

HOUSING, THROTTLE (UPPER)

53167-KF0-000

Unavailable

14

HOUSING, THROTTLE (LOWER)

53168-KF0-000

Unavailable

15

SLIDER, THROTTLE CABLE

53169-KF0-000

Unavailable

16

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-KA3-710

Unavailable

17

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

18

HOLDER, LEVER BRACKET (NOT AVAILABLE)

53173-KA3-710

Unavailable

19

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

19

HOLDER, LEVER BRACKET

53173-376-000

$10.95

20

BRACKET, DECOMPRESSION LEVER

53173-435-730

$36.79

21

LEVER, R. HANDLEBAR

53175-KF0-000

Unavailable

22

COVER, R. HANDLE LEVER

53176-428-010

$10.00

22

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

24

COVER, L. HANDLE LEVER

53177-430-000

$11.00

25

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

26

LEVER, DECOMPRESSION

53180-MAG-670

$27.22

26

LEVER, DECOMPRESSION This part replaces 53180-435-730.

53180-MAG-670

$27.22

29

BOLT, WIRE ADJUSTING

53192-KA4-710

$10.51

30

BOLT, HANDLE LEVER PIVOT

90113-KA3-710

$3.90

31

BOLT, HANDLE LEVER PIVOT

90113-429-770

$5.94

32

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

34

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

34

NUT, FIXING

90321-KF0-000

$9.76

36

SCREW, PAN (4X12)

93500-04012-0A

$1.49

36

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

37

SCREW, PAN (5X20)

93500-05020-0A

$1.49

38

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

38

SCREW, PAN (6X25)

93500-06025-0A

$1.49

39

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

39

NUT, HEX. (5MM)

94001-05000-0S

$2.74

40

NUT, FLANGE (6MM)

94050-06000

$1.49

42

WASHER, SPRING (4MM)

94111-04000

$1.49
