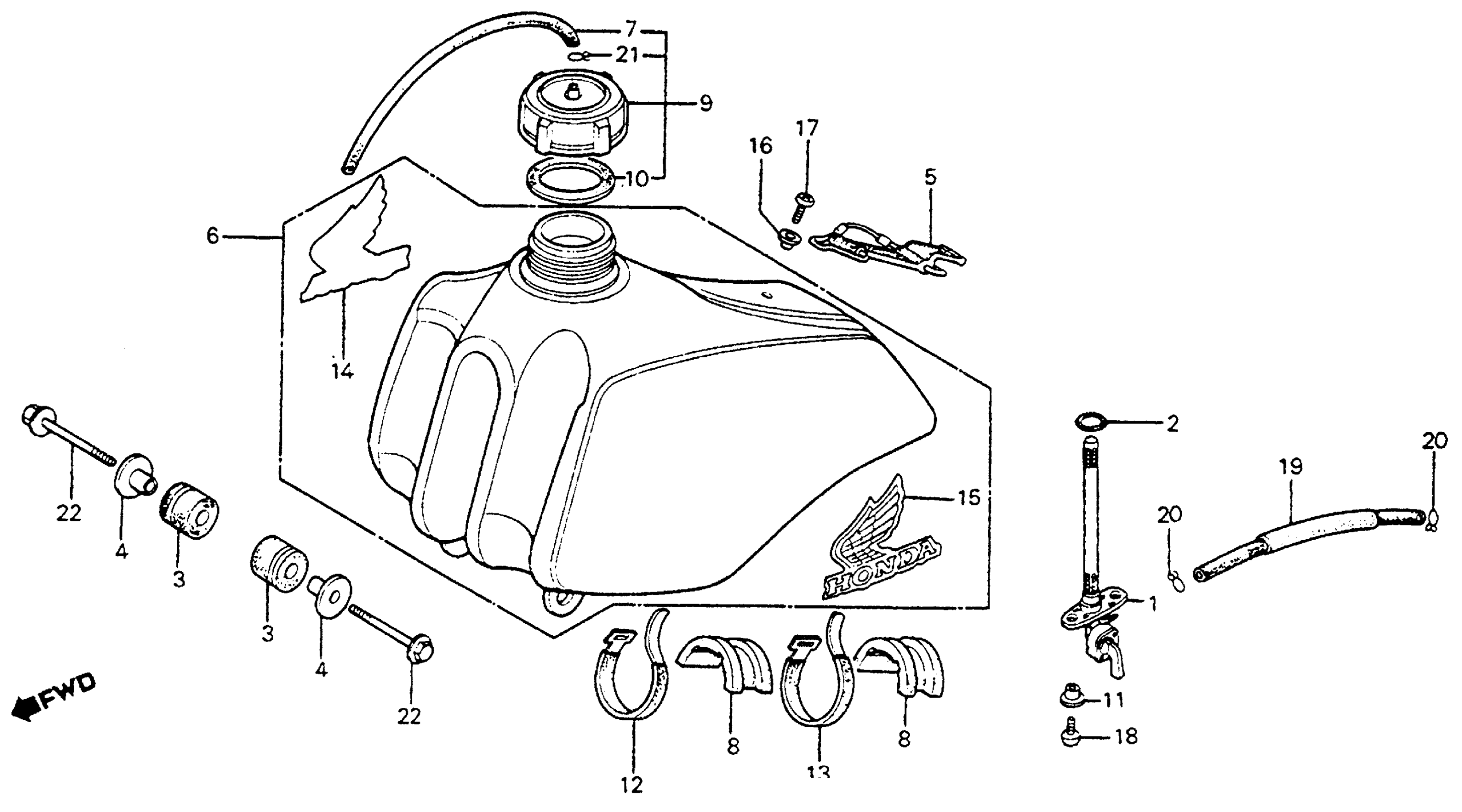

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 FUEL TANK 83-84 Diagram

PETCOCK ASSY.

16950-KT0-831

$96.27

PETCOCK ASSY. This part replaces 16950-MA0-015.

16950-KT0-831

$96.27

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.75

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

BAND, RR. TANK (NOT AVAILABLE)

17516-KF0-000

Unavailable

TANK SUB-ASSY., FUEL *R119* (FLASH RED) (NOT AVAILABLE)

17520-KF0-000ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

RUBBER, FUEL TANK MOUNTING (NOT AVAILABLE)

17611-KF0-000

Unavailable

CAP, FUEL TANK This part replaces 17620-MA0-000.

17620-MA0-405

Unavailable

GASKET, FUEL TANK CAP This part replaces 17624-467-000.

17624-467-020

Unavailable

GASKET, FUEL TANK CAP This part replaces 17624-467-010.

17624-467-020

Unavailable

GASKET, FUEL TANK CAP (NOT AVAILABLE)

17624-467-020

Unavailable

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

BAND, WIRE

32161-399-000

Unavailable

BAND, CABLE

32161-402-000

Unavailable

LABEL, R. FUEL TANK (NOT AVAILABLE)

87123-KF0-300

Unavailable

LABEL, L. FUEL TANK (NOT AVAILABLE)

87124-KF0-300

Unavailable

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

SCREW, PAN (6X14)

93500-06014-0A

$1.49

SCREW, PAN (6X14) This part replaces 93500-06014-1A.

93500-06014-0A

$1.49

SCREW, PAN (6X14) This part replaces 93500-06015.

93500-06014-0A

$1.49

SCREW-WASHER (6X20)

93891-06020-08

$1.80

BULK HOSE, FUEL (5.5X3000) (5.3X115)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
