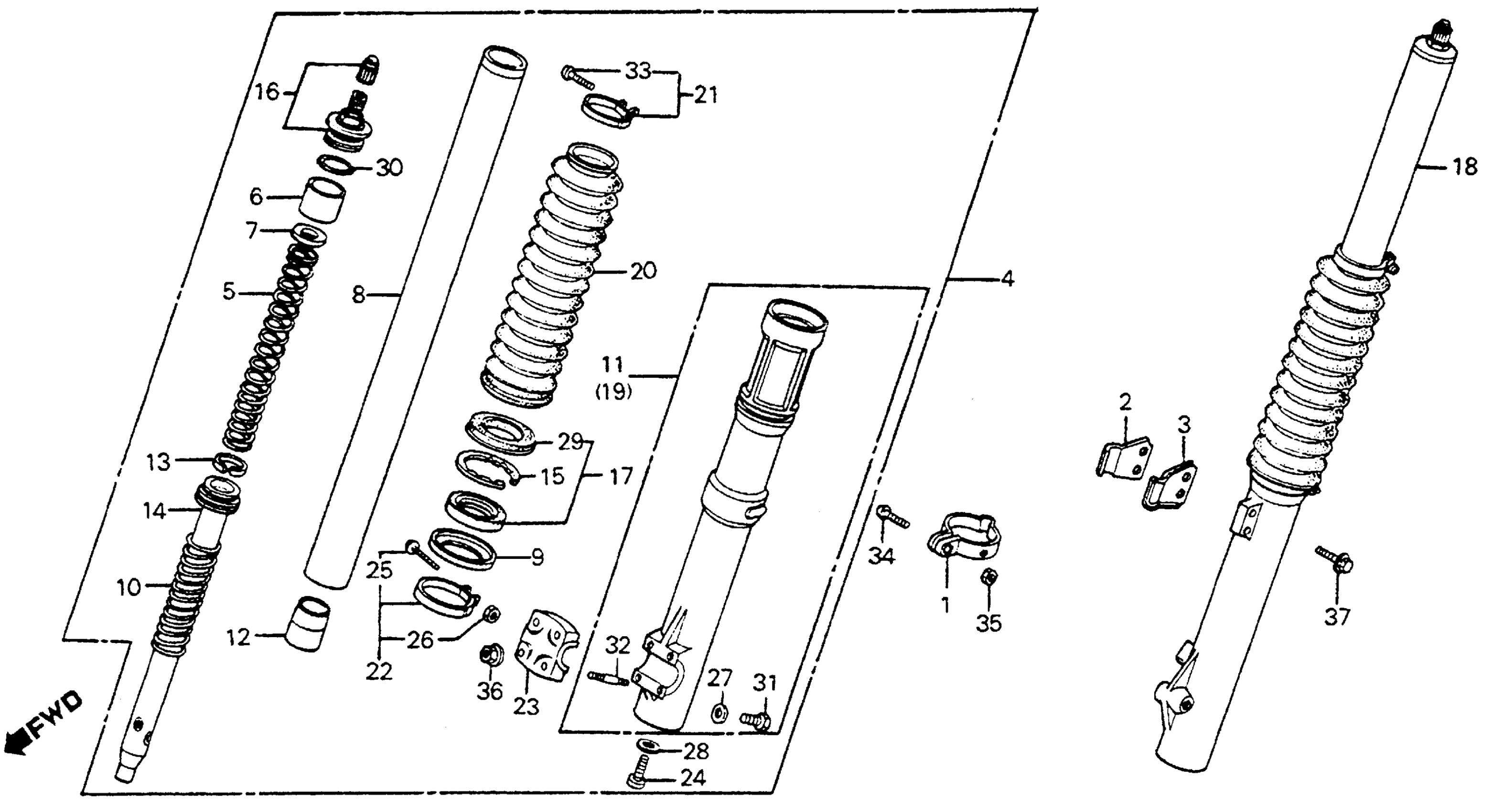

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 FRONT FORK 83 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-KF0-000

Unavailable

2

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

3

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

4

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-KF0-003

Unavailable

5

SPRING, FR. FORK

51401-KF0-003

Unavailable

6

COLLAR, SPRING (NOT AVAILABLE)

51402-KF0-003

Unavailable

7

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

8

PIPE, FR. FORK (NOT AVAILABLE) This part replaces 51410-KF0-003.

51410-KF0-013

Unavailable

8

PIPE, FR. FORK (NOT AVAILABLE)

51410-KF0-013

Unavailable

9

RING, BACK-UP

51412-KF0-003

Unavailable

10

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

11

CASE, R. (LOWER) (NOT AVAILABLE)

51420-KF0-003

Unavailable

12

PIECE, OIL LOCK

51432-KF0-003

Unavailable

13

RING, PISTON

51437-KF0-003

Unavailable

14

PIPE, SEAT (NOT AVAILABLE)

51440-KF0-003

Unavailable

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

16

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-KF0-003

Unavailable

17

SEAL SET, FR. FORK

51490-KAE-003

$35.90

17

SEAL SET, FR. FORK This part replaces 51490-KF0-305.

51490-KAE-003

$35.90

18

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-KF0-003

Unavailable

19

CASE, L. (LOWER) (NOT AVAILABLE)

51520-KF0-003

Unavailable

20

BOOT, FR. FORK (NOT AVAILABLE)

51611-KF0-003

$59.75

21

BAND, FR. FORK BOOT

51612-KF0-003

$10.91

22

BAND B, FR. FORK BOOT (NOT AVAILABLE)

51613-KF0-003

Unavailable

23

HOLDER, AXLE

51634-MA0-003

$37.46

24

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

24

BOLT, SOCKET (8X27)

90116-383-721

$5.13

25

SCREW, PAN (3X25) (NOT AVAILABLE)

90181-KF0-003

Unavailable

26

NUT, SQUARE (3MM) (NOT AVAILABLE)

90311-KF0-003

Unavailable

27

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

28

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

29

DUST SEAL, FR. FORK

91254-KF0-003

$21.03

30

O-RING (33.2X2.4)

91356-KF0-003

$3.76

31

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

32

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

32

BOLT, STUD (6X25)

92900-06025-0E

$1.49

33

SCREW, PAN (3X20)

93500-03020-0A

$1.49

34

SCREW, PAN (5X18)

93500-05018-0A

$1.49

35

NUT, HEX. (5MM)

94001-05000-0S

$2.74

36

NUT, FLANGE (6MM)

94050-06000

$1.49

37

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

37

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
