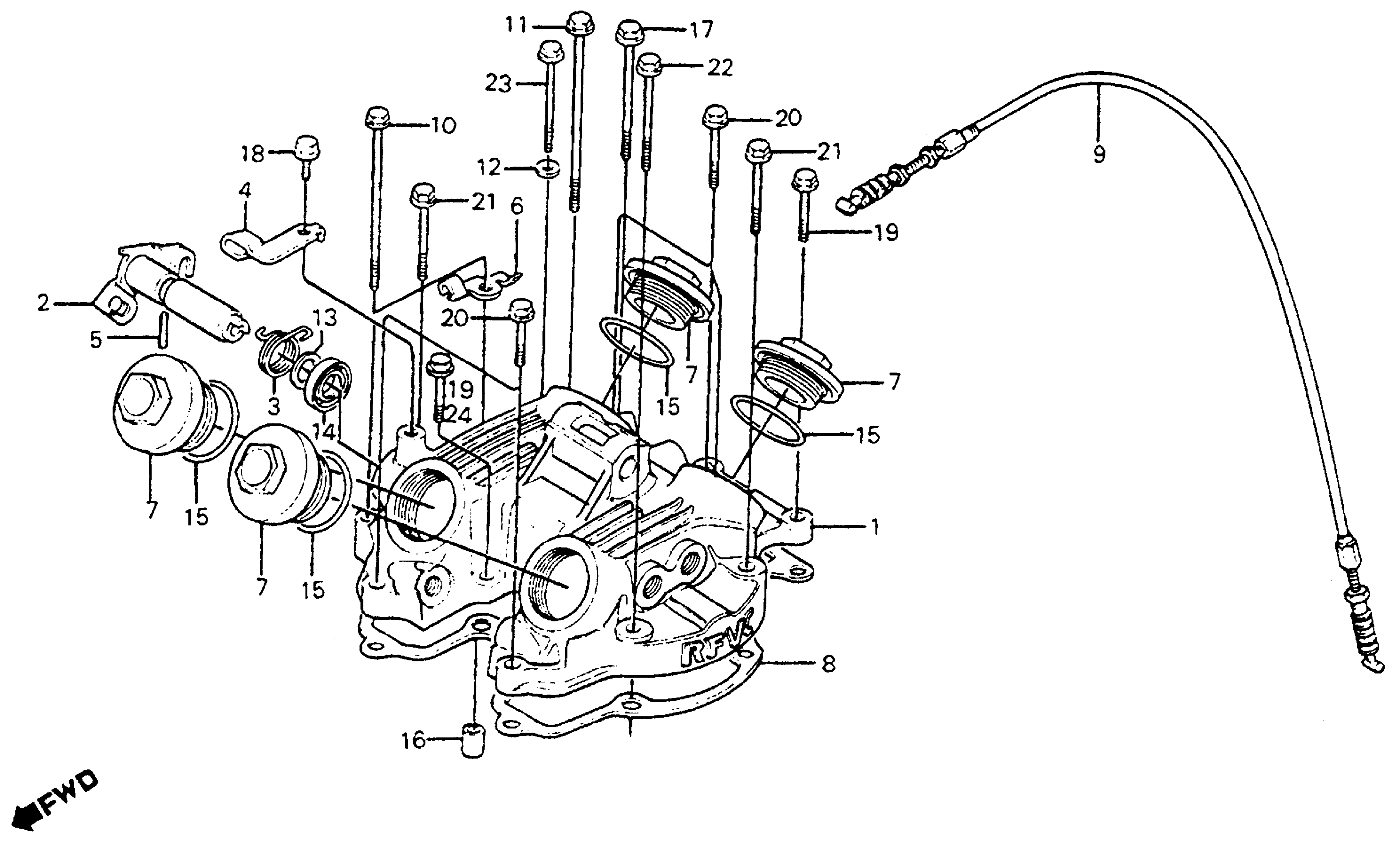

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 CYLINDER HEAD COVER Diagram

#

Description
Price

2

LIFTER, VALVE (NOT AVAILABLE)

12319-KF0-000

Unavailable

3

SPRING, VALVE LIFTER

12321-KF0-000

Unavailable

4

RECEIVER, DECOMPRESSION CABLE (NOT AVAILABLE)

12323-KF0-000

Unavailable

5

PIN, DECOMPRESSION STOPPER

12324-KF0-000

Unavailable

6

RECEIVER B, DECOMPRESSION CABLE (NOT AVAILABLE)

12325-KF0-000

Unavailable

7

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KF0-000.

12361-KF0-010

$19.47

7

CAP, TAPPET ADJUSTING HOLE

12361-KF0-010

$19.47

8

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE) This part replaces 12391-KF0-004.

12391-KAS-901

Unavailable

8

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE) This part replaces 12391-KF0-014.

12391-KAS-901

Unavailable

8

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE)

12391-KAS-901

Unavailable

9

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-KF0-000

Unavailable

10

BOLT, FLANGE (6X118) (NOT AVAILABLE)

90084-KF0-000

Unavailable

11

BOLT, FLANGE (6X126) (NOT AVAILABLE)

90086-KF0-000

Unavailable

12

WASHER (11MM)

90425-300-000

$2.42

13

WASHER (12MM)

90546-KF0-000

Unavailable

14

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-KJ9-000.

91205-KF0-003

$3.22

14

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-KJ9-003.

91205-KF0-003

$3.22

14

OIL SEAL (12X20X5) (ARAI) This part replaces 91205-KF0-000.

91205-KF0-003

$3.22

14

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.22

15

O-RING (39.5X2.9)

91352-KF0-003

$3.84

16

PIN, DOWEL (8X14)

94301-08140

$2.04

17

BOLT, FLANGE (8X70) This part replaces 95700-08070-07.

95701-08070-07

$1.28

17

BOLT, FLANGE (8X70)

95701-08070-07

$1.28

18

BOLT, FLANGE (6X12) This part replaces 96000-06012-07.

96001-06012-07

Unavailable

18

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

19

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

19

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

20

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.38

20

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

21

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$1.97

21

BOLT, FLANGE (6X35)

96001-06035-07

$1.97

22

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$1.97

22

BOLT, FLANGE (6X45)

96001-06045-07

$1.97

23

BOLT, FLANGE (6X50) This part replaces 96000-06050-07.

96001-06050-07

$1.39

23

BOLT, FLANGE (6X50)

96001-06050-07

$1.39
