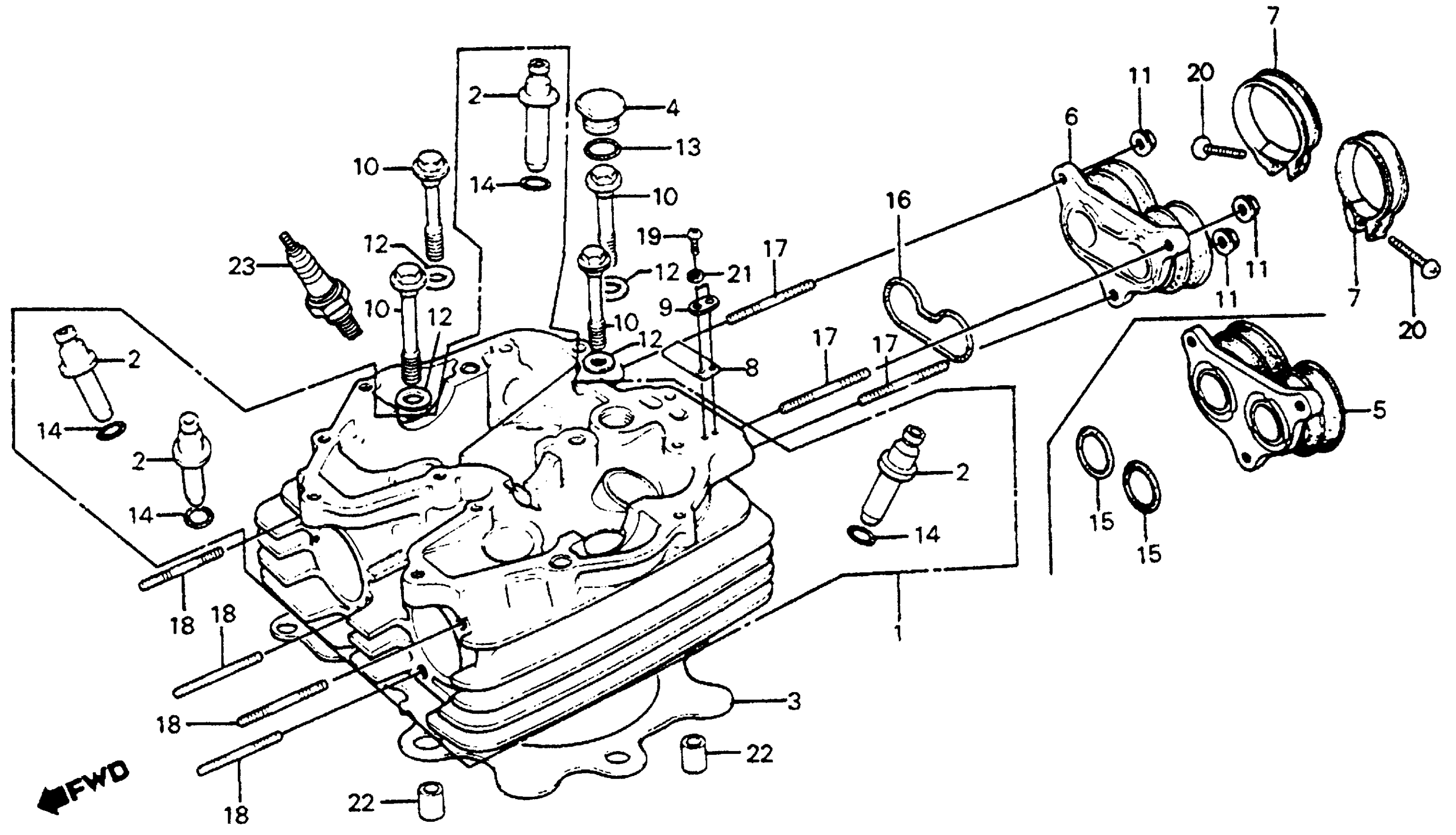

Honda XR350RA (83) MOTORCYCLE, JPN, VIN# JH2NE010-DM000023 TO JH2NE010-DM005646 CYLINDER HEAD 83-84 Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-KF0-000.

12200-KF0-405

Unavailable

1

CYLINDER HEAD (NOT AVAILABLE)

12200-KF0-405

Unavailable

2

GUIDE, VALVE

12231-KF0-305

$23.10

3

GASKET, CYLINDER HEAD

12251-KAS-901

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12251-KF0-000.

12251-KAS-901

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12251-KF0-004.

12251-KAS-901

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12251-KF0-005.

12251-KAS-901

Unavailable

4

CAP, CYLINDER HEAD HOLE

12345-KF0-000

Unavailable

5

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-KF0-000

Unavailable

7

BAND, INSULATOR

16223-KS5-000

$14.20

7

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

8

VALVE, REED (NOT AVAILABLE)

16300-KF0-000

Unavailable

9

WASHER, REED VALVE (NOT AVAILABLE)

16301-KF0-000

Unavailable

10

BOLT, FLANGE (10X66) This part replaces 90081-KF0-000.

90085-MG3-000

$14.86

10

BOLT, FLANGE (10X66)

90085-MG3-000

$14.86

11

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

11

NUT, FLANGE (6MM) This part replaces 90301-428-900.

94050-06070

$1.49

11

NUT, FLANGE (6MM)

94050-06070

$1.49

12

WASHER (10MM) This part replaces 90410-KE5-000.

90410-KR0-000

$2.67

12

WASHER (10MM) This part replaces 90410-KF0-000.

90410-KR0-000

$2.67

12

WASHER (10MM)

90410-KR0-000

$2.67

13

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

14

O-RING (10X1.6)

91301-200-000

$3.01

15

O-RING (29.5X3)

91301-401-000

$3.53

17

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

17

BOLT, STUD (6X16)

92900-06016-0B

$1.49

18

BOLT, STUD (8X40) This part replaces 92700-08040.

92700-08040-0B

$2.02

18

BOLT, STUD (8X40)

92700-08040-0B

$2.02

19

SCREW, PAN (3X8)

93500-03008-0A

$1.49

20

SCREW, PAN (5X20)

93500-05020-0A

$1.49

21

WASHER, SPRING (3MM)

94111-03000

$1.49

22

PIN, DOWEL (12X20)

94301-12200

$2.29

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

23

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

23

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
