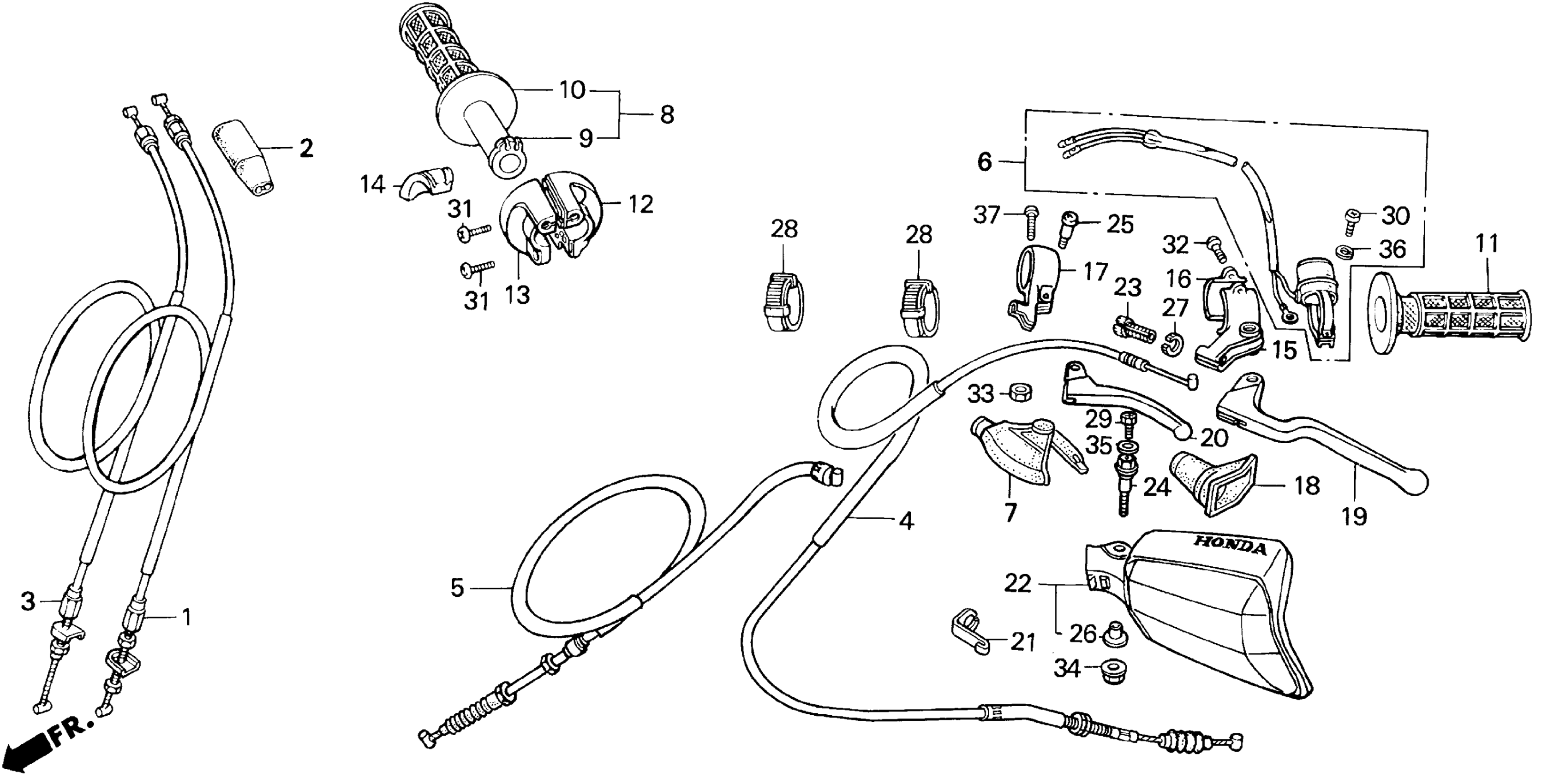

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 SWITCH + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KT1-671

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.74

3

CABLE B, THROTTLE

17920-KT1-671

Unavailable

4

CABLE, CLUTCH

22870-KZ1-600

$25.62

5

CABLE, DECOMPRESSION (NOT AVAILABLE) This part replaces 22890-KT1-670.

22890-KT1-671

Unavailable

5

CABLE, DECOMPRESSION

22890-KT1-671

Unavailable

6

SWITCH ASSY., STOP

35130-MN1-670

$33.71

7

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$14.51

8

GRIP ASSY., THROTTLE This part replaces 53140-429-000.

53140-429-010

$34.13

8

GRIP ASSY., THROTTLE

53140-429-010

$34.13

10

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

11

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.69

12

HOUSING, THROTTLE (UPPER)

53167-KF0-000

Unavailable

13

HOUSING, THROTTLE (LOWER)

53168-KF0-000

Unavailable

14

SLIDER, THROTTLE CABLE

53169-KF0-000

Unavailable

15

BRACKET, L. HANDLEBAR

53172-429-770

$30.43

16

HOLDER, LEVER BRACKET

53173-376-000

$10.04

17

BRACKET, DECOMPRESSION LEVER

53173-435-730

$33.99

18

COVER, L. HANDLEBAR

53177-KN5-670

$8.66

19

LEVER, L. HANDLEBAR

53178-KF0-000

$35.76

20

LEVER, DECOMPRESSION

53180-MAG-670

Unavailable

21

PLATE, GUARD SETTING

53181-KN5-670

$6.29

22

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE)

53185-KN5-670ZB

$33.17

23

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

24

BOLT, LEVER PIVOT

90114-KN5-670

$8.29

25

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.51

26

COLLAR (6X4)

90127-KF0-770

$3.26

27

NUT, FIXING

90321-315-670

$6.97

28

BAND, WIRE

90650-KW3-000

$4.28

29

BOLT, RECESSED (5X8)

92301-05008-0A

$1.22

30

SCREW, PAN (4X12)

93500-04012-0A

$0.76

30

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.76

31

SCREW, PAN (5X16)

93500-05016-0G

$0.84

32

SCREW, PAN (5X20)

93500-05020-0G

$0.76

33

NUT, HEX. (5MM)

94001-05000-0S

$2.80

34

NUT, FLANGE (6MM)

94050-06000

$0.60

35

WASHER, PLAIN (5MM)

94103-05000

$0.57

36

WASHER, SPRING (4MM)

94111-04000

$0.99

37

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
