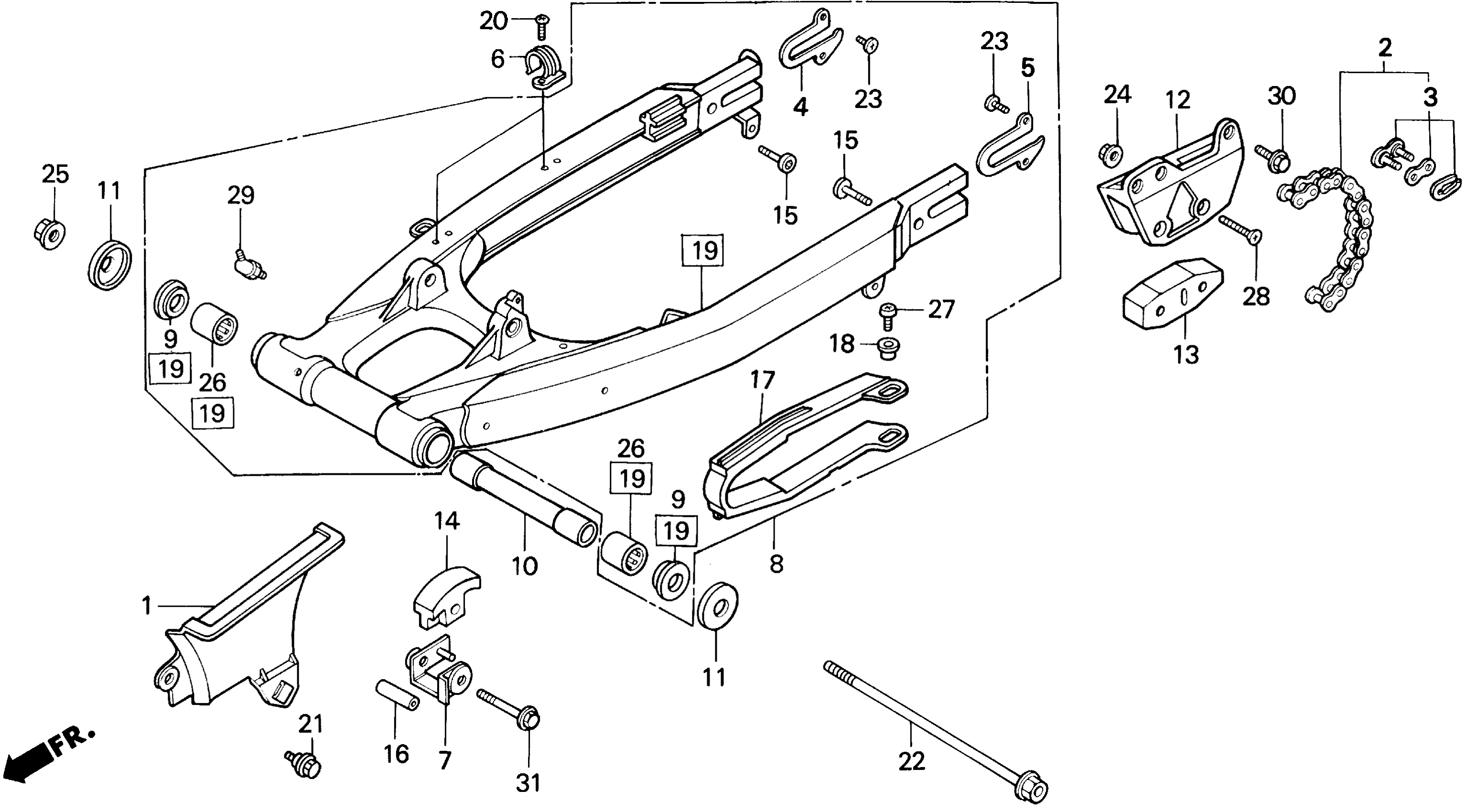

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-KT1-780

$25.93

CHAIN, DRIVE (520K0-108FJ)

405W3-MN1-505

Unavailable

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KK0-003.

405W3-MN1-505

Unavailable

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KK0-005.

405W3-MN1-505

Unavailable

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-MG3-005.

405W3-MN1-505

Unavailable

MASTER LINK (TAKASAGO)

40531-KF0-005

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-KN5-003.

40531-KT0-003

$5.67

MASTER LINK (DAIDO)

40531-KT0-003

$5.67

WASHER, R. RR. SWINGARM

42307-KT1-770

Unavailable

WASHER, L. RR. SWINGARM

42308-KT1-770

Unavailable

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.46

STAY, TENSIONER

50143-MA0-770

Unavailable

BUSH, PIVOT THRUST

52109-430-300

$16.01

COLLAR, RR. SWINGARM CENTER

52141-KT1-770

Unavailable

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

GUIDE, CHAIN

52146-KT1-770

$37.50

SLIDER, CHAIN GUIDE

52147-KN5-005

$14.67

SLIDER, CHAIN

52155-KT1-670

$36.39

PIN, CHAIN ADJUSTER

52156-KV6-000

$11.31

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

SLIDER, CHAIN

52170-KZ1-671

$57.74

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

SWINGARM SET This part replaces 52200-KZ1-305.

52200-KZ1-306

Unavailable

SCREW, PAN (5X10)

90104-ML7-920

$2.92

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

BOLT, SWINGARM PIVOT

90121-KT1-670

Unavailable

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

NUT, U (6MM)

90301-473-003

$4.07

NUT, U (14MM)

90305-GE8-003

$3.86

BEARING, NEEDLE (20X26X20) (TOYO)

91070-GC4-601

$24.72

SCREW, PAN (5X8)

90115-KV3-700

$2.61

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

FITTING, GREASE (B.76S)

96201-80000

$2.56

BOLT, FLANGE (6X16)

90103-MY6-670

$3.72

BOLT, FLANGE (6X45)

96300-06045-00

$2.23
