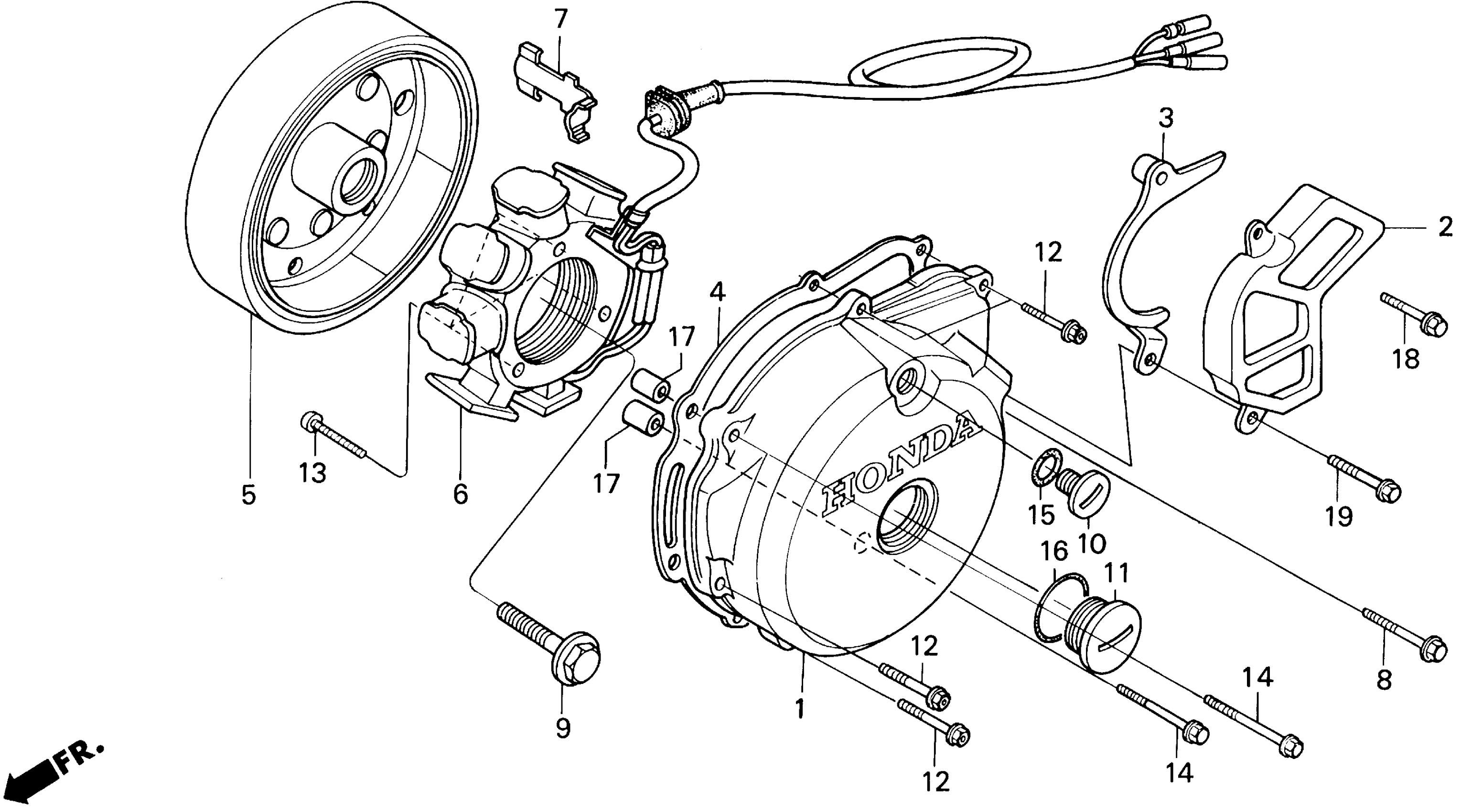

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KZ1-670

Unavailable

COVER, DRIVE SPROCKET

11351-KZ1-670

Unavailable

GUIDE, DRIVE CHAIN

11352-KK0-000

$20.33

GASKET, L. CRANKCASE COVER

11395-KZ1-920

$13.38

FLYWHEEL

31110-KL4-014

Unavailable

STATOR

31120-KT1-004

Unavailable

CLAMP, CABLE

32111-KK0-000

Unavailable

BOLT, FLANGE SOCKET (6X32)

90012-ME5-000

Unavailable

BOLT, FLANGE (12X50)

90023-471-000

$13.00

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-HB5-000

$16.69

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

BOLT, STOPPER TENSIONER SHAFT

90092-KE5-000

$4.74

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (27X2.0)

91305-KF0-003

$2.92

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
