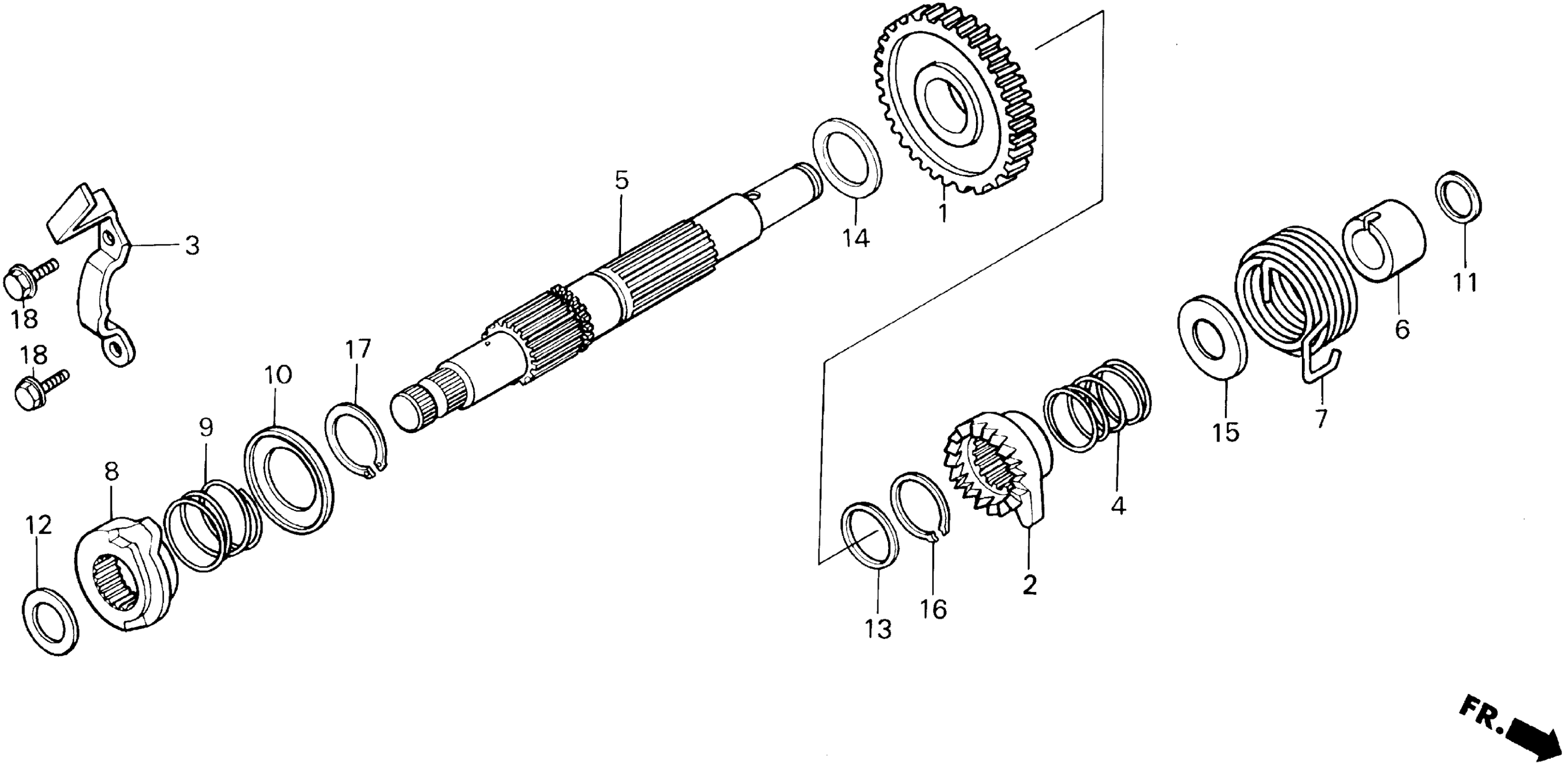

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (22T)

28211-KK0-010

Unavailable

RATCHET, KICK STARTER

28213-KK0-000

Unavailable

PLATE, KICK STOPPER

28215-KK0-000

Unavailable

SPRING, KICK STARTER RATCHET

28223-KK0-000

Unavailable

SPINDLE, KICK STARTER

28250-KK0-010

Unavailable

COLLAR, KICK STARTER

28255-KK0-000

Unavailable

SPRING, KICK STARTER

28261-KK0-000

Unavailable

CAM, KICK SHAFT

28272-KK0-000

Unavailable

SPRING, CAM RESET

28283-428-000

Unavailable

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

WASHER B, THRUST (14MM)

90428-958-000

$4.66

WASHER, THRUST (18MM)

90452-701-000

$2.34

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, THRUST (22MM)

90456-323-000

Unavailable

WASHER, KICK RATCHET SPRING This part replaces 90501-KK0-000.

90501-KF0-000

$6.74

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
