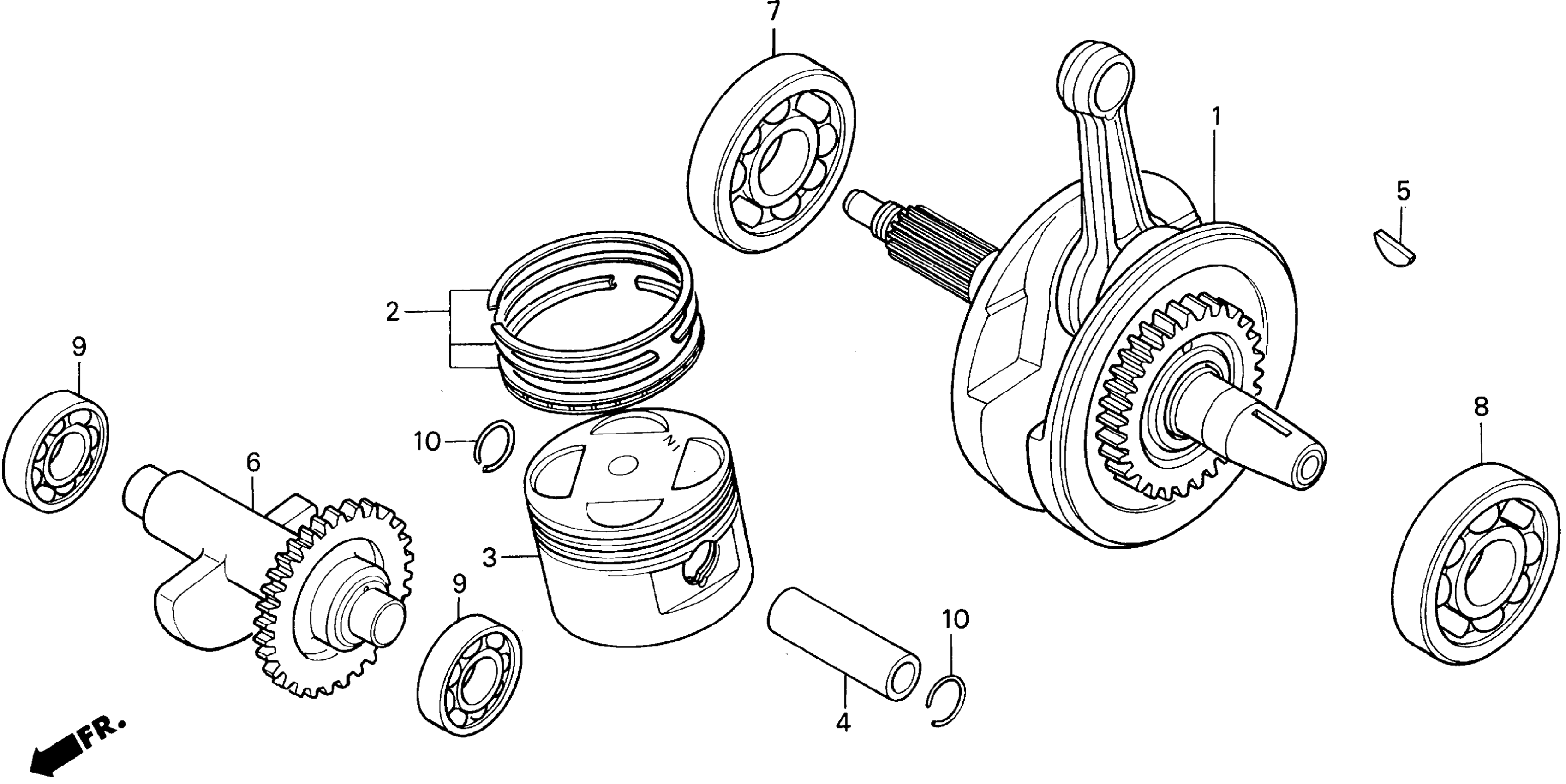

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 CRANKSHAFT Diagram

CRANKSHAFT

13000-KS5-010

Unavailable

RING SET, PISTON (STD) This part replaces 13011-KT1-306.

13011-KV6-305

$54.54

RING SET, PISTON (STD)

13011-KV6-305

$54.54

RING SET, PISTON (OS 0.25) | (Optional).

13012-KT1-306

Unavailable

RING SET, PISTON (OS 0.50) | (Optional).

13013-KT1-306

Unavailable

PISTON (STD)

13101-KT1-013

Unavailable

PISTON (OS 0.25) | (Optional).

13102-KT1-315

Unavailable

PISTON (OS 0.50) | (Optional).

13103-KT1-315

Unavailable

PIN, PISTON

13111-KK0-000

$31.11

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

SHAFT, BALANCER (34T)

13420-KT1-630

Unavailable

BEARING, RADIAL BALL (63/28) This part replaces 91001-KK0-003.

91009-HC0-003

$31.43

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

BEARING, BALL (63/28)

91002-KK0-003

Unavailable

BEARING, RADIAL BALL (63/13)

91006-KK0-771

$21.91

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
