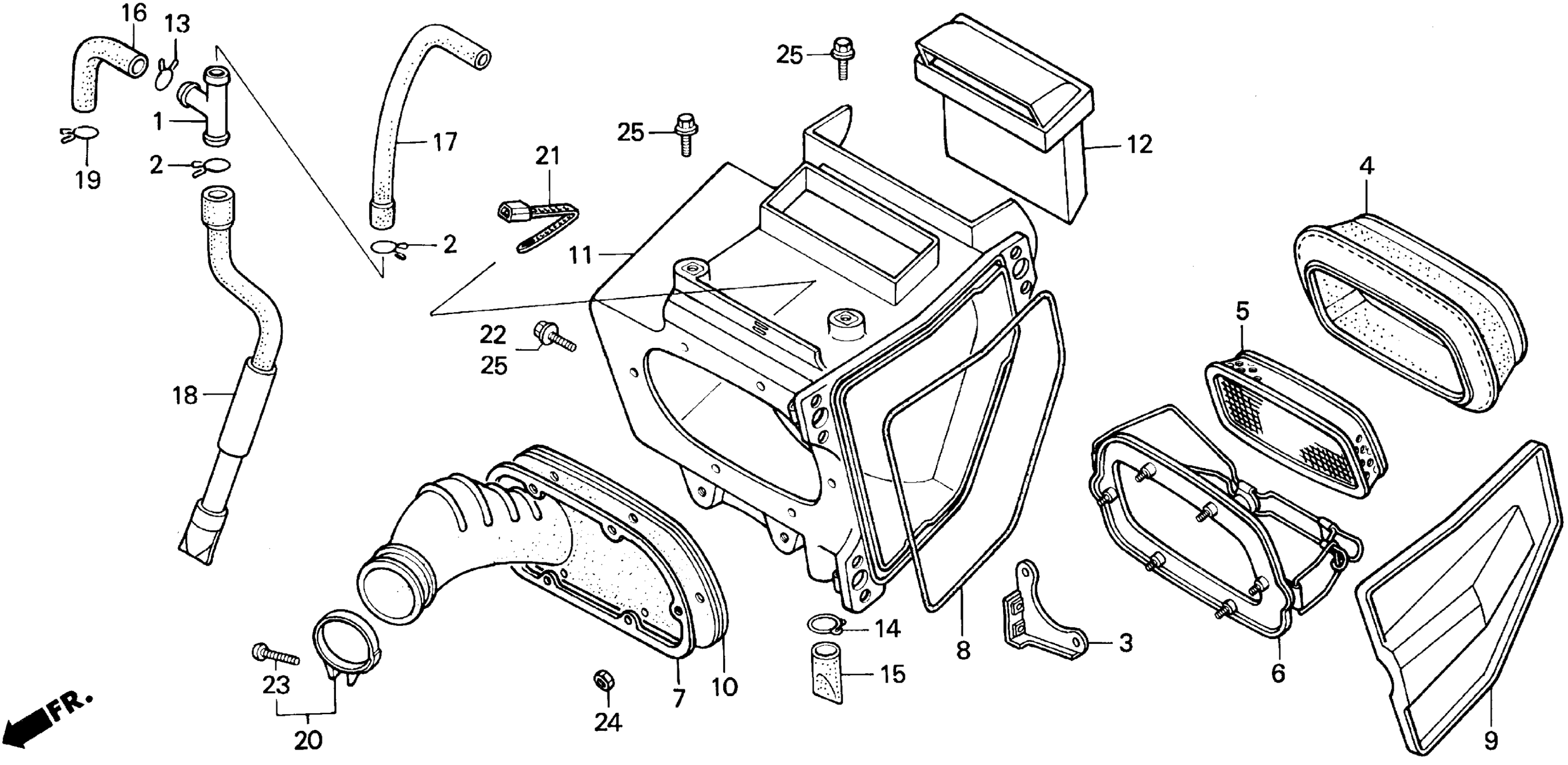

Honda XR250RA (95) MOTORCYCLE, JPN, VIN# JH2ME060-SM100001 AIR CLEANER Diagram

#

Description
Price

1

JOINT, BREATHER (THREE-WAY)

15772-KK0-000

$11.04

2

CLIP B, BREATHER TUBE

15772-MN1-670

$2.64

3

STAY, OIL CUP

17211-KZ9-300

Unavailable

4

ELEMENT, AIR CLEANER This part replaces 17213-KF0-000.

17213-MN1-670

$25.28

4

ELEMENT, AIR CLEANER

17213-MN1-670

$25.28

5

HOLDER, ELEMENT

17214-KN5-670

Unavailable

6

PLATE, ELEMENT SETTING

17216-MN1-670

Unavailable

7

PLATE, HOLDER

17217-MN1-670

$15.17

8

SEAL, AIR CLEANER COVER This part replaces 17219-HA2-000.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17219-KN5-670.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17219-ZE3-840.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17221-MG2-000.

17219-HA2-405

$5.55

8

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.55

9

COVER, AIR CLEANER HOUSING (INNER)

17221-KV6-000

Unavailable

10

TUBE, AIR CLEANER CONNECTING

17222-KT1-670

Unavailable

11

HOUSING, AIR CLEANER

17230-MN1-671

Unavailable

12

CAP, IN. DUCT

17241-KT1-670

Unavailable

13

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

14

CLIP, BREATHER TUBE

17316-611-000

$8.28

15

TUBE, DRAIN

17359-KK0-000

$6.64

16

TUBE A, BREATHER

17371-KT1-670

Unavailable

17

TUBE B, BREATHER

17372-KZ1-670

Unavailable

18

TUBE C, BREATHER

17373-KZ1-670

Unavailable

19

CLIP, SUB-TANK HOSE

17724-MN1-670

$3.14

20

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 90652-GHB-690.

95018-52250

$4.78

20

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$4.78

21

BAND, WIRE

90652-KT1-771

$4.16

22

BOLT-WASHER (6X12)

93401-06012-00

$1.48

23

SCREW, PAN (4X25)

93500-04025-0G

$0.59

24

NUT, HEX. (6MM)

94002-06070-0S

$0.71

25

BOLT, FLANGE (6X10)

96300-06010-00

$0.86
