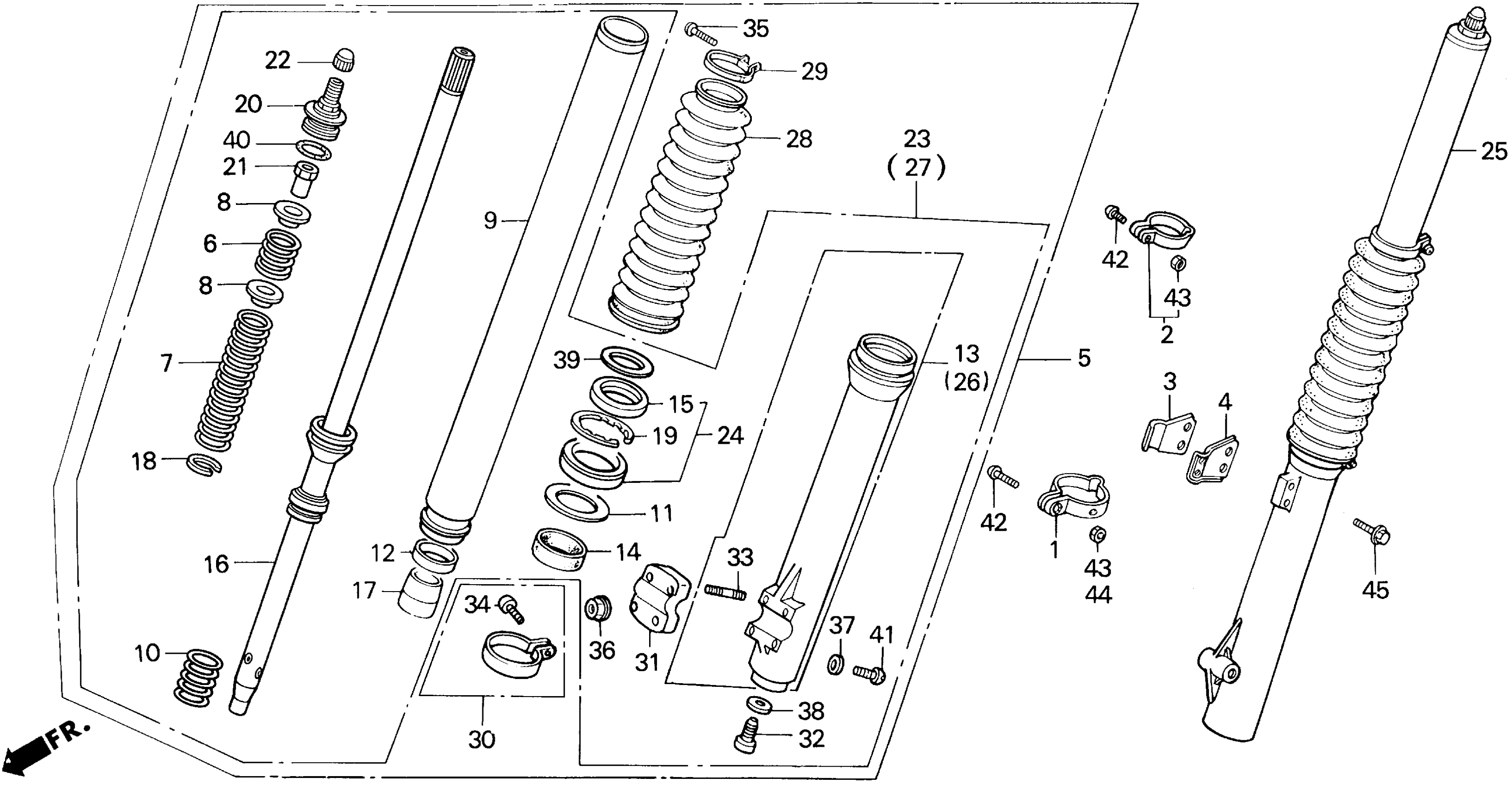

Honda XR250RA (94) MOTORCYCLE, JPN, VIN# JH2ME060-RM000001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KT1-670

Unavailable

2

CLAMP, SPEEDOMETER CABLE (UPPER)

44833-KT1-670

Unavailable

3

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

4

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

6

SPRING A, FR. FORK

51401-KZ1-671

Unavailable

7

SPRING B, FR. FORK

51402-KZ1-671

Unavailable

8

GUIDE, SPRING

51403-KT1-671

Unavailable

9

PIPE, FR. FORK

51410-KZ1-671

Unavailable

10

SPRING, FR. REBOUND

51411-KZ1-671

Unavailable

11

WASHER

51412-KA4-004

$6.75

12

SLEEVE, FORK PIPE

51415-KZ1-671

$17.49

13

CASE, R. (LOWER)

51420-KZ1-671

Unavailable

14

BUSH, FORK PIPE

51424-KZ1-671

$22.15

15

DUST SEAL, FR. FORK

51425-KT1-671

Unavailable

16

PIPE, SEAT

51430-KZ1-671

Unavailable

17

PIECE, OIL LOCK

51432-KZ1-671

Unavailable

18

RING, PISTON

51437-KT1-671

Unavailable

19

RING, SNAP

51447-KA4-004

$4.24

20

BOLT ASSY., FR. FORK

51450-KZ1-671

Unavailable

21

NUT, HEX. (10MM)

51451-KZ1-671

Unavailable

22

CAP, AIR VALVE

51453-KZ1-671

Unavailable

23

FORK SUB-ASSY., R. FR. (KAYABA)

51480-KZ1-305

Unavailable

24

SEAL SET, FR. FORK

51490-KZ1-671

$31.58

26

CASE, L. (LOWER)

51520-KZ1-671

Unavailable

27

FORK SUB-ASSY., L. FR. (KAYABA)

51580-KZ1-305

Unavailable

28

BOOT, FR. FORK *B106* (KAYABA) (CAPRI BLUE)

51611-KT1-671ZC

Unavailable

29

BAND, BOOT (UPPER)

51612-KT1-671

Unavailable

30

BAND, BOOT (LOWER)

51613-KA3-711

Unavailable

31

HOLDER, AXLE

51634-KT0-671

Unavailable

32

BOLT, SOCKET (12MM)

90116-KA3-003

Unavailable

33

BOLT, STUD (6X34)

90136-KA3-831

$4.51

34

SCREW, PAN (4X26)

93500-04016-0A

$1.49

35

SCREW, PAN (4X16)

90202-KA4-004

$2.48

35

SCREW, PAN (4X26) This part replaces 93500-04014.

93500-04016-0A

$1.49

35

SCREW, PAN (4X26) This part replaces 93500-04016.

93500-04016-0A

$1.49

35

SCREW, PAN (4X26)

93500-04016-0A

$1.49

35

SCREW, PAN (4X26) This part replaces 93500-04016-1A.

93500-04016-0A

$1.49

36

NUT, U (6MM)

90301-473-003

$4.07

37

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

38

WASHER

90544-KA3-004

Unavailable

39

WASHER

90545-KT1-671

Unavailable

40

O-RING (31.7X3.5)

91356-KT1-671

$3.13

41

SCREW, PAN (4X8)

93500-04008-0A

$1.49

41

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

42

SCREW, PAN (5X20)

93500-05020-0G

$1.49

43

NUT, HEX. (5MM)

94001-05000-0S

$2.74

44

NUT, HEX. (5MM)

94001-05070-0S

$1.49

45

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
