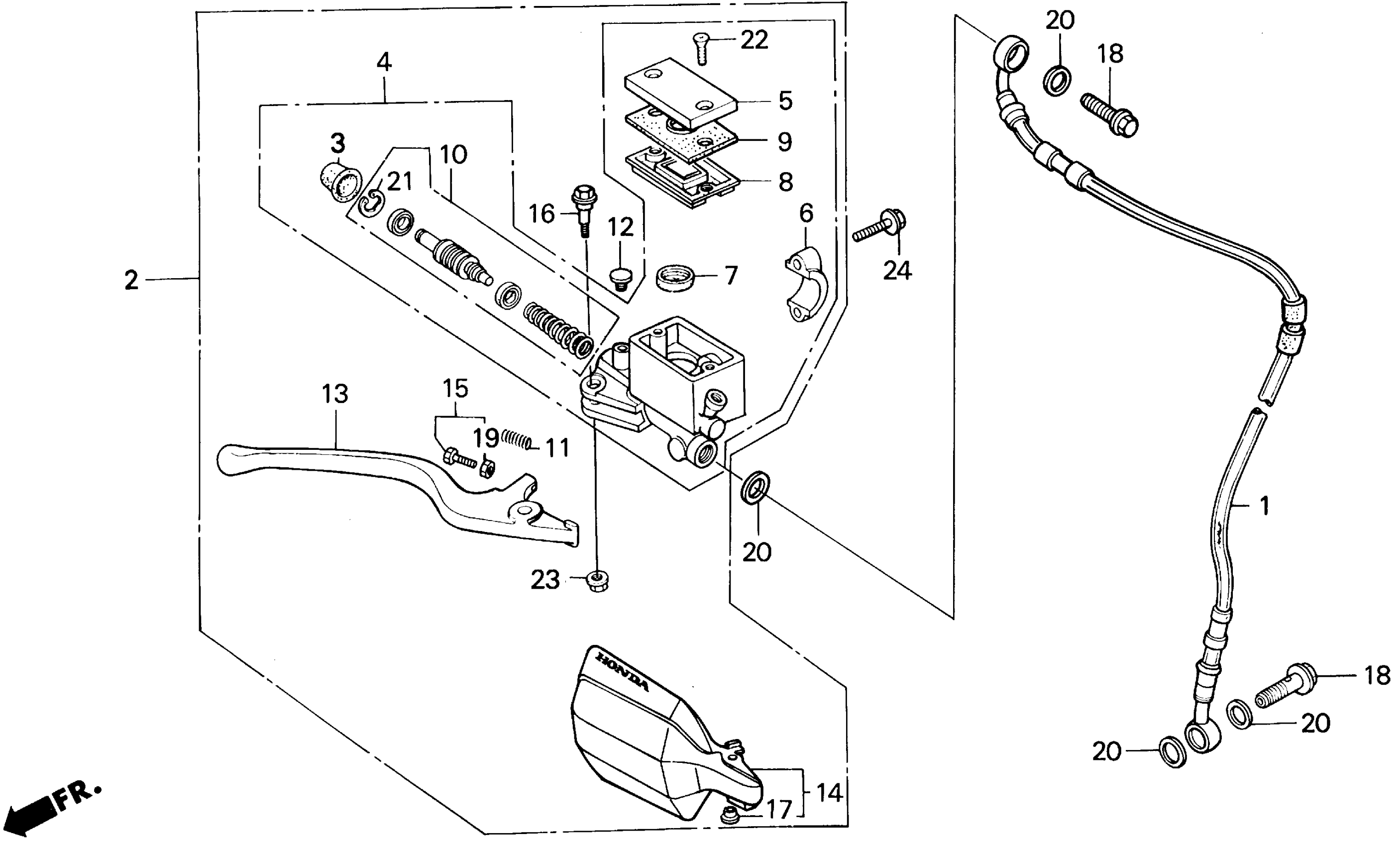

Honda XR250RA (94) MOTORCYCLE, JPN, VIN# JH2ME060-RM000001 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-KT1-781

Unavailable

BOOT

45504-KN5-006

$11.31

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-KZ1-305

Unavailable

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-MG3-016

$12.02

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-MK2-305

Unavailable

SPRING, BRAKE LEVER

53174-KN5-006

$2.97

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

PLUG, HANDLE LEVER BRACKET | Use from Frame SN RM002790 This part replaces 53174-463-770.

53174-116-670

$2.48

LEVER, R. HANDLEBAR

53175-MK2-770

$21.71

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE)

53180-KN5-000ZB

Unavailable

BOLT SET, ADJUSTER This part replaces 90111-KS6-000.

90111-ML3-791

$6.60

BOLT, HANDLEBAR PIVOT

90113-KF0-770

$5.73

COLLAR (6X4)

90127-KF0-770

$3.42

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT (5X0.5)

90303-KS6-000

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
