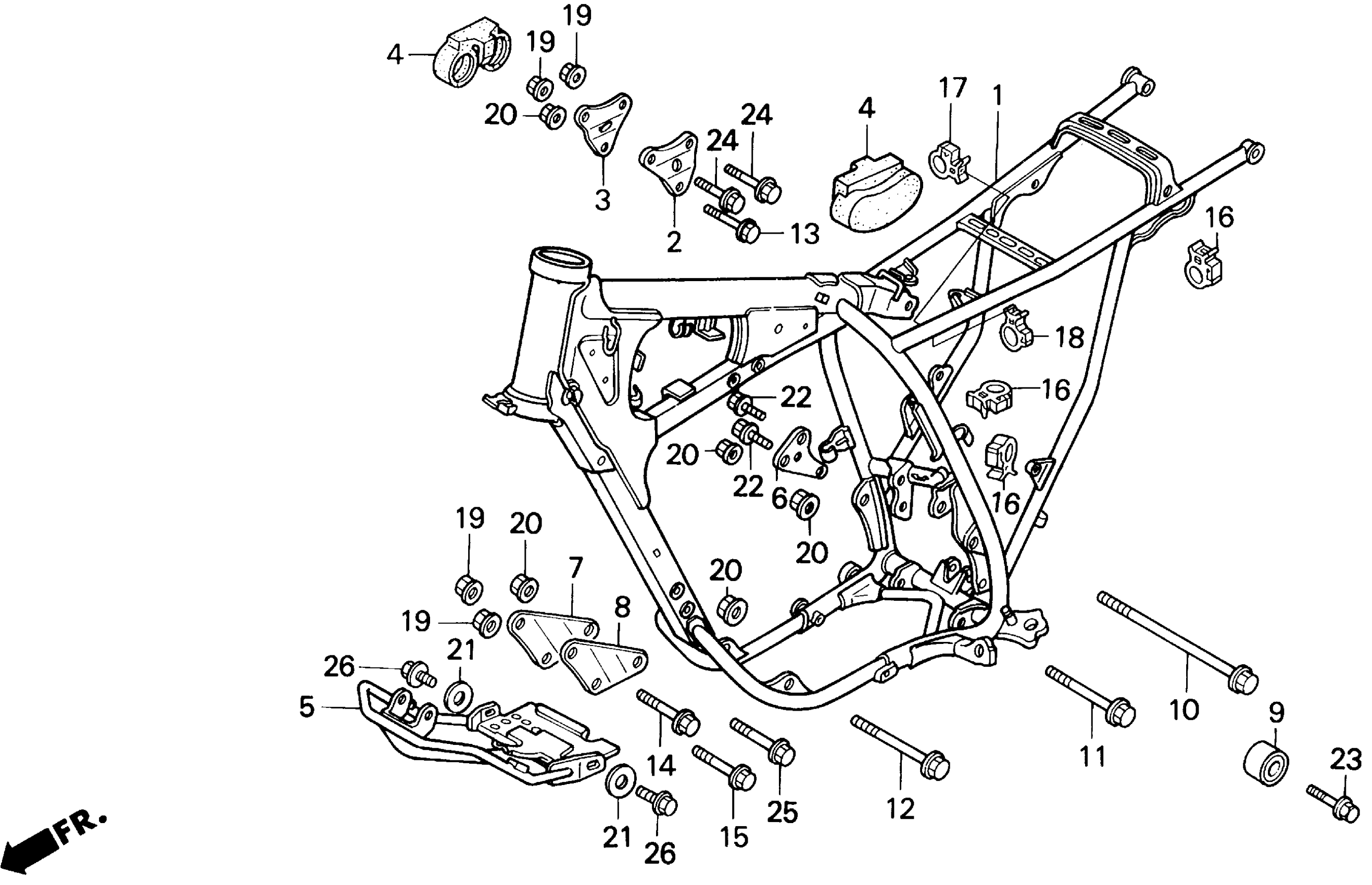

Honda XR250RA (94) MOTORCYCLE, JPN, VIN# JH2ME060-RM000001 FRAME Diagram

#

Description
Price

1

FRAME *NH333* (CHALK WHITE)

50100-KZ1-600ZB

Unavailable

2

PLATE, L. ENGINE HANGER (UPPER)

50138-KT1-670

Unavailable

3

PLATE, R. ENGINE HANGER (UPPER)

50139-KT1-670

Unavailable

4

RUBBER, L. TANK GUARD

50212-KT1-671

Unavailable

5

PIPE, SKID

50360-KZ1-920

Unavailable

6

PLATE, RR. ENGINE HANGER

50532-KT1-671

Unavailable

7

PLATE, R. FR. ENGINE HANGER

50533-KT1-671

Unavailable

8

PLATE, L. FR. ENGINE HANGER

50534-KT1-671

Unavailable

9

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

10

BOLT, FLANGE (10X150)

90103-KZ1-600

Unavailable

11

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

12

BOLT, FLANGE (10X100)

90102-KZ1-600

Unavailable

13

BOLT, FLANGE (10X61)

90128-GN1-000

$6.84

14

BOLT, FLANGE (8X85)

90216-KJ2-000

Unavailable

15

BOLT, FLANGE (8X75)

90217-KJ2-000

Unavailable

16

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

17

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

18

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

BOLT, FLANGE (8X18)

96300-08018-00

$1.80

23

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

24

BOLT, FLANGE (8X65)

96400-08065-00

$2.25

25

BOLT, FLANGE (10X75)

90101-KZ1-600

Unavailable

26

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

26

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

26

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57
