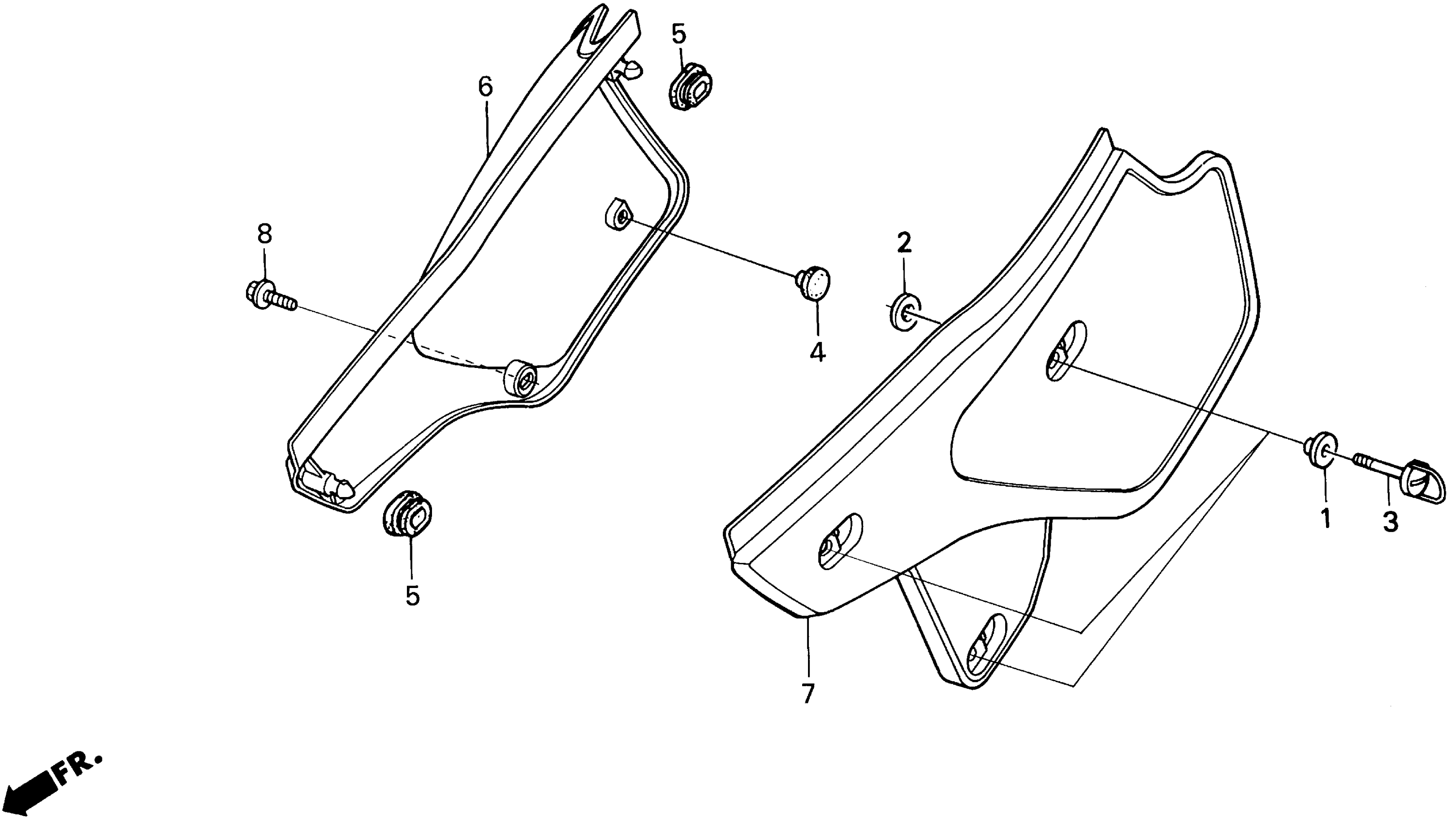

Honda XR250RA (93) MOTORCYCLE, JPN, VIN# JH2ME060-PM900001 SIDE COVER Diagram

#

Description

Price

1

COLLAR, AIR CLEANER COVER SETTING

17223-KN5-670

$2.80

2

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.22

3

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.51

4

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.26

5

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

6

COVER SET, R. SIDE 2TN132 (SHASTA WHITE/RAINBOW BLUE)

83601-KZ1-670ZC

Unavailable

7

COVER SET, AIR CLEANER HOUSING NH138 (WL) (SHASTA WHITE)

83603-KZ1-670ZB

Unavailable

8

BOLT, FLANGE (6MM)

90111-KM1-000

$3.95
