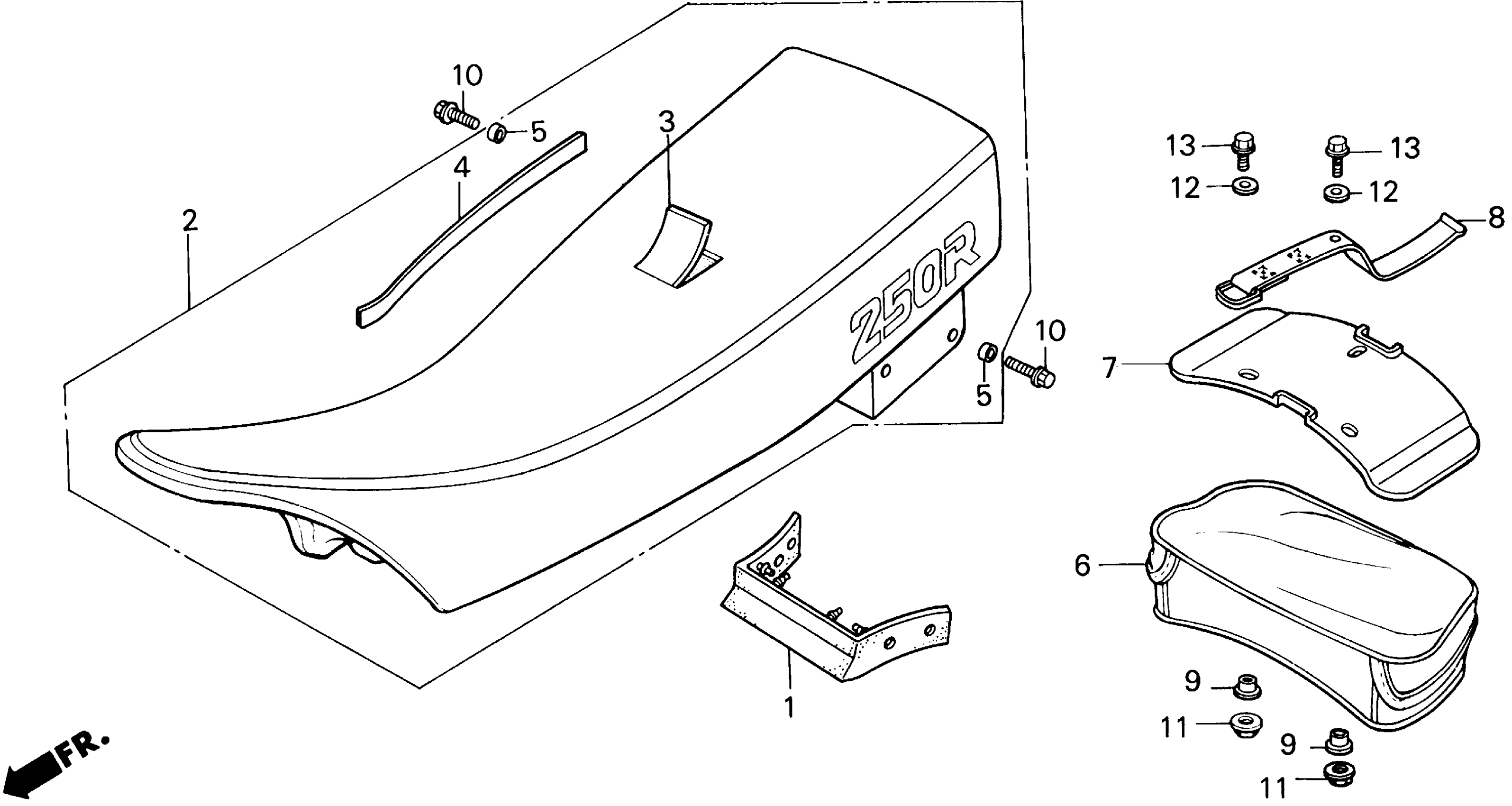

Honda XR250RA (93) MOTORCYCLE, JPN, VIN# JH2ME060-PM900001 SEAT Diagram

#

Description

Price

1

RUBBER, SEAT (LOWER)

77120-MK2-670

$23.03

2

SEAT

77200-KZ1-600

Unavailable

3

COVER, SEAT This part replaces 77201-KZ1-306.

77201-KZ9-307

Unavailable

3

COVER, SEAT

77201-KZ9-307

Unavailable

4

TAPE | (Optional).

77202-KT1-305

Unavailable

5

COLLAR, RR. FENDER

80108-ME4-000

$2.70

6

BAG, TAIL This part replaces 83501-KZ1-770.

83501-MY6-A90

$111.51

6

BAG, TAIL This part replaces 83501-MY6-670.

83501-MY6-A90

$111.51

7

PLATE, TAIL BAG (LOWER)

83502-KN5-670

$17.38

8

BAND, TAIL BAG

83506-KZ1-600

$15.59

9

COLLAR (C)

90003-438-850

$5.05

10

BOLT, FLANGE (8X14)

96300-08014-00

$1.80

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

WASHER, PLAIN (6MM)

94103-06000

$1.49

13

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
