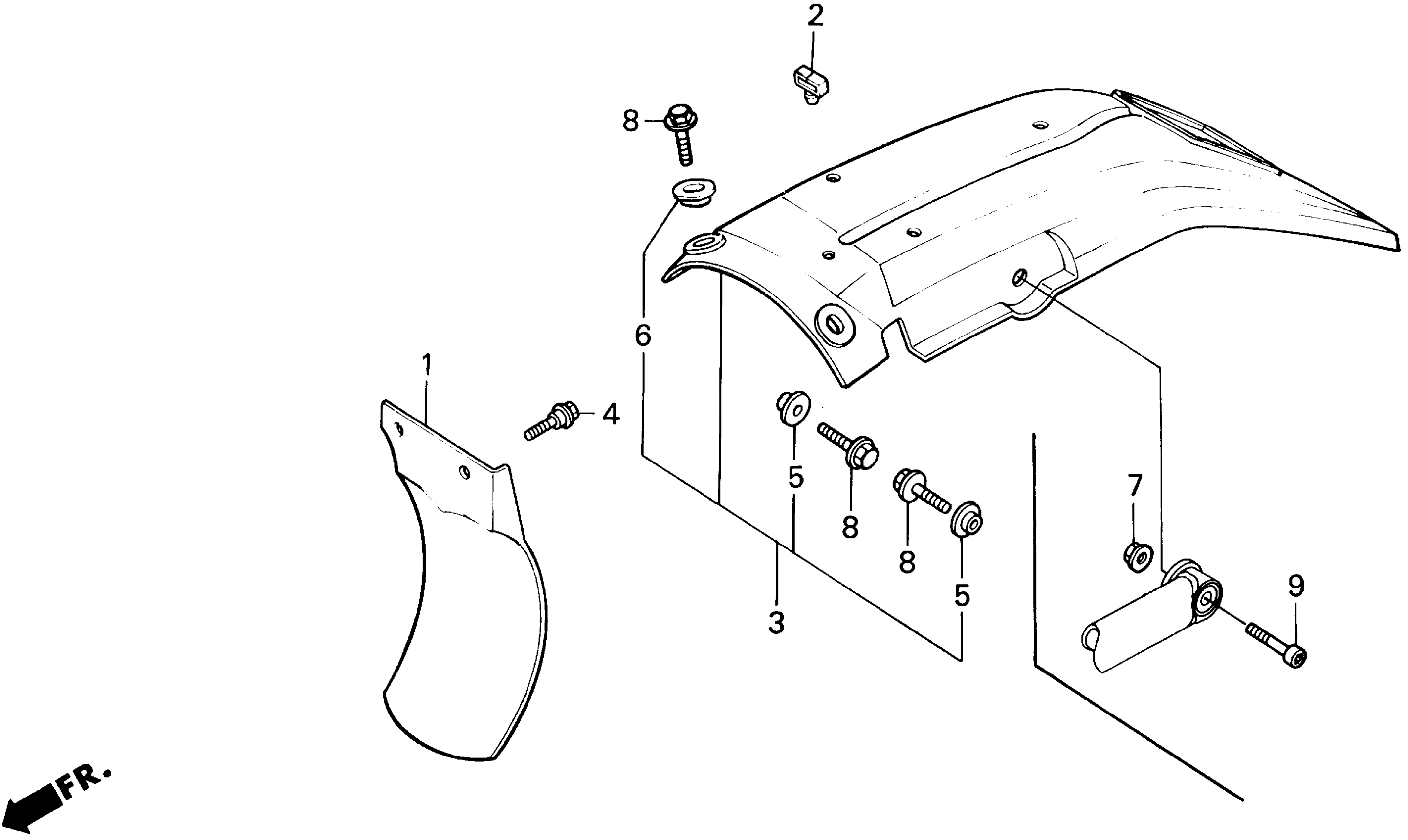

Honda XR250RA (92) MOTORCYCLE, JPN, VIN# JH2ME060-NM800004 TO JH2ME060-MM801509 REAR FENDER Diagram

#

Description

Price

1

SPLASH GUARD A, AIR CLEANER HOUSING

17245-KT1-670

Unavailable

2

GROMMET, CABLE

32985-300-000

$3.12

3

FENDER, RR. NH138 (SHASTA WHITE)

80100-MN1-670ZB

Unavailable

4

BOLT, FLANGE (6MM)

90112-GC6-000

$3.55

5

WASHER (6X20)

90512-300-000

$2.87

6

WASHER (6X9)

90513-323-000

$1.67

8

BOLT, FLANGE (6X14)

96300-06014-00

$0.86
