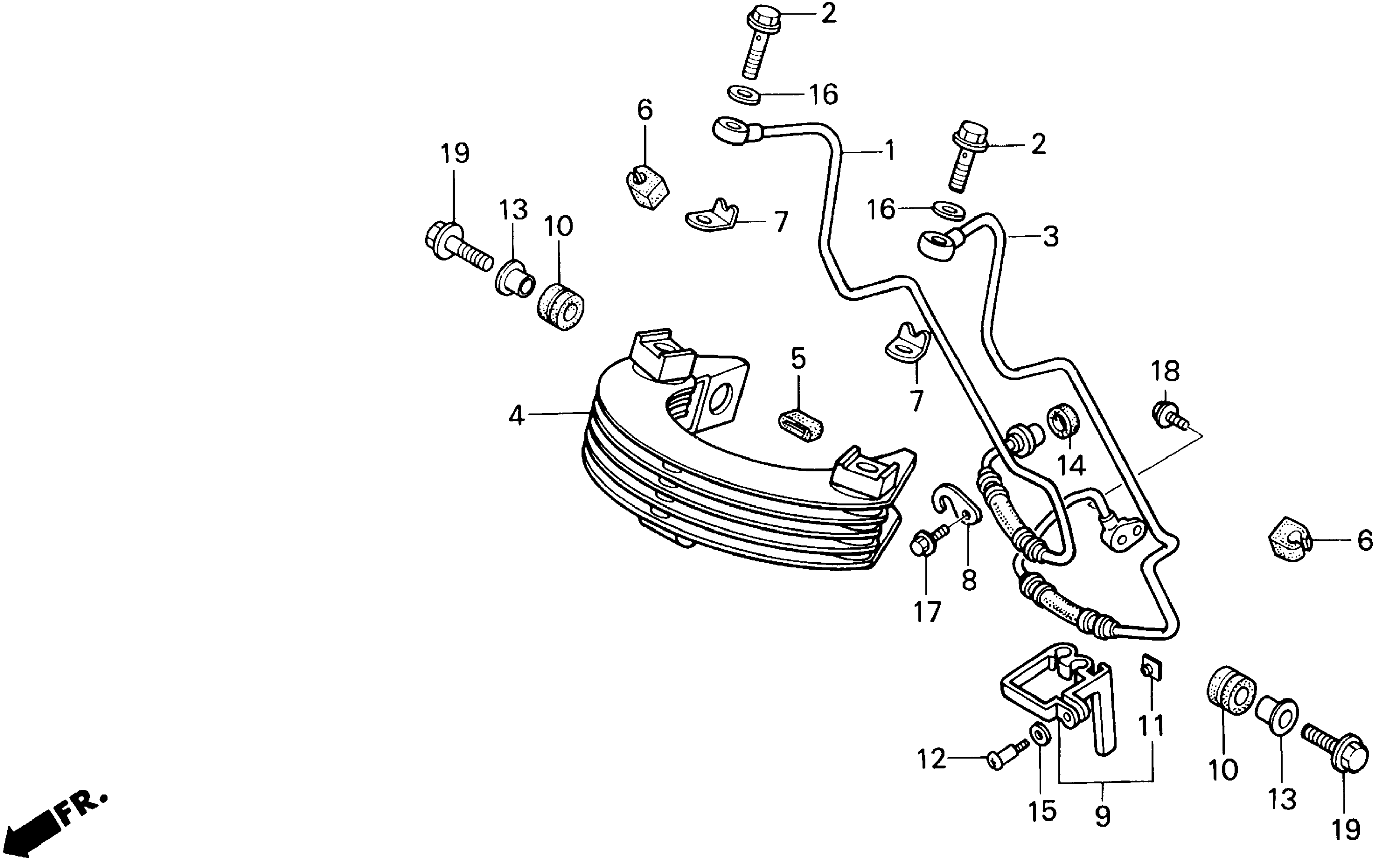

Honda XR250RA (92) MOTORCYCLE, JPN, VIN# JH2ME060-NM800004 TO JH2ME060-MM801509 OIL COOLER Diagram

PIPE, R. OIL HOSE

15510-KT1-900

Unavailable

BOLT A, OIL HOSE

15516-KT1-671

Unavailable

PIPE, L. OIL HOSE

15520-KT1-900

Unavailable

COOLER, OIL This part replaces 15600-KT1-672.

15600-KZ1-601

Unavailable

COOLER, OIL

15600-KZ1-601

Unavailable

RUBBER, HOOK

15602-KT1-670

Unavailable

RUBBER, OIL PIPE

15603-KT1-670

$5.62

WASHER, OIL COOLER

15604-KT1-670

$5.83

PLATE, OIL HOSE SETTING

15630-KT1-900

Unavailable

CLAMP, OIL PIPE

15711-KT1-670

Unavailable

RUBBER, OIL COOLER

34931-KT1-670

$3.44

NUT, SPECIAL (5MM)

90016-ZA5-000

$3.80

SCREW, HANDLE LEVER PIVOT

90113-GE8-000

Unavailable

COLLAR (6.3X13.5)

90503-KE1-000

$4.48

GASKET, RUBBER (9.8MM)

91301-KF0-000

$3.92

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X22) This part replaces 96500-06022-00.

96300-06022-00

$1.49

BOLT, FLANGE (6X22)

96300-06022-00

$1.49
