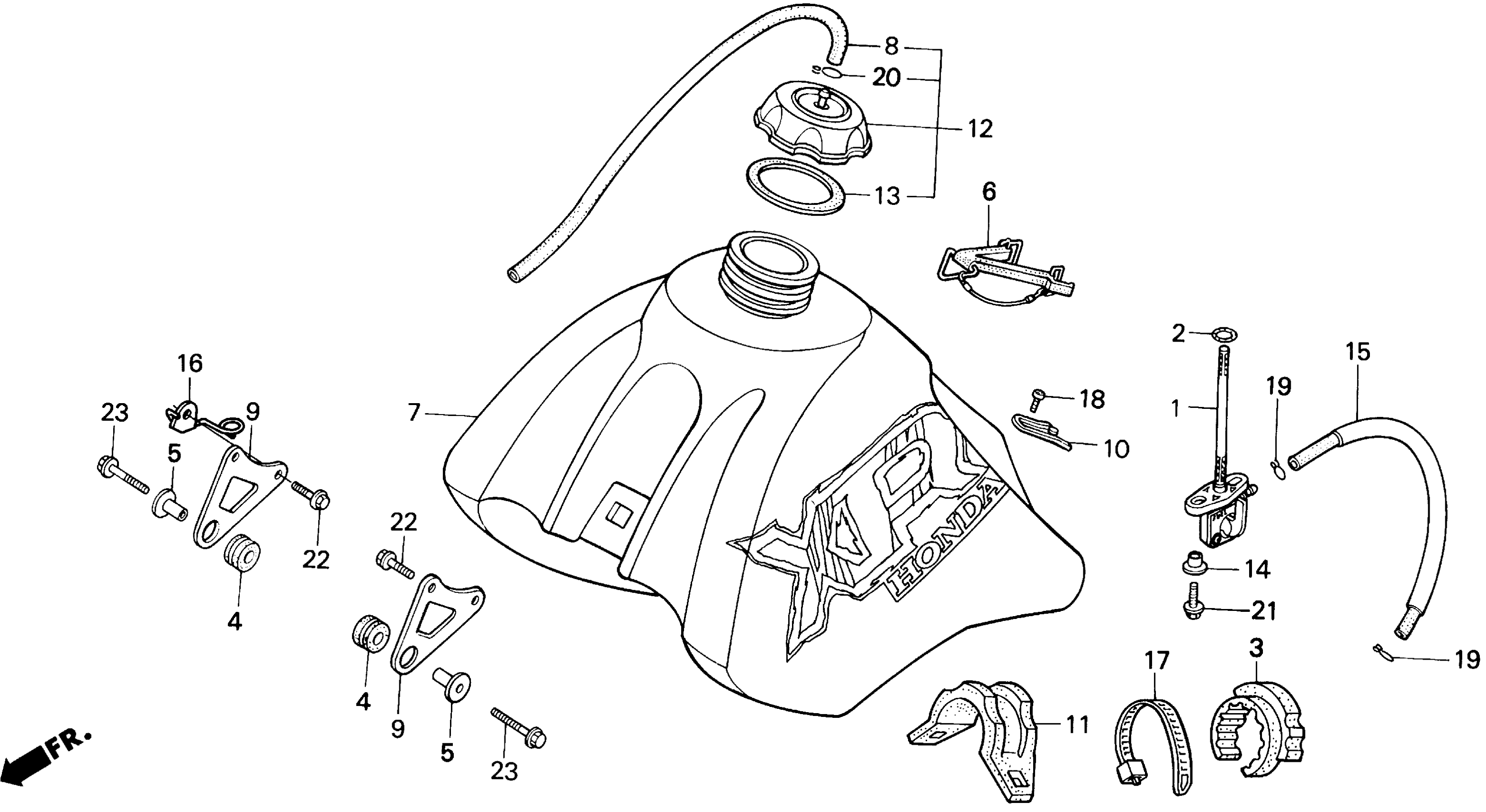

Honda XR250RA (92) MOTORCYCLE, JPN, VIN# JH2ME060-NM800004 TO JH2ME060-MM801509 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-KT0-831

$96.27

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER B, TANK SETTING

17504-KT1-670

Unavailable

4

RUBBER, TANK SETTING

17508-KN5-670

$2.59

5

COLLAR, TANK SETTING

17509-MK2-680

$7.55

6

BAND, FUEL TANK

17516-KN5-670

Unavailable

7

TANK SET, FUEL *NH138* (WL) (SHASTA WHITE)

17520-KZ1-920ZA

Unavailable

8

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

9

PLATE, FR. TANK

17522-KT1-670

Unavailable

10

HOOK, RR. TANK

17525-KN5-670

Unavailable

11

RUBBER, FR. TANK

17612-KT0-670

Unavailable

12

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

14

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

15

TUBE, FUEL

17681-KT1-670

Unavailable

16

GUIDE, CLUTCH CABLE

50255-KT1-671

Unavailable

17

STRAP, CABLE

90672-KBR-000

Unavailable

18

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

18

SCREW, PAN (6X10)

93500-06010-0A

$1.49

19

CLIP, TUBE (B10)

95002-02100

$1.90

20

CLIP, TUBE (C9)

95002-50000

$1.49

21

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

22

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

23

BOLT, FLANGE (6X30) This part replaces 96500-06030-00.

96300-06030-00

$2.00

23

BOLT, FLANGE (6X30)

96300-06030-00

$2.00
