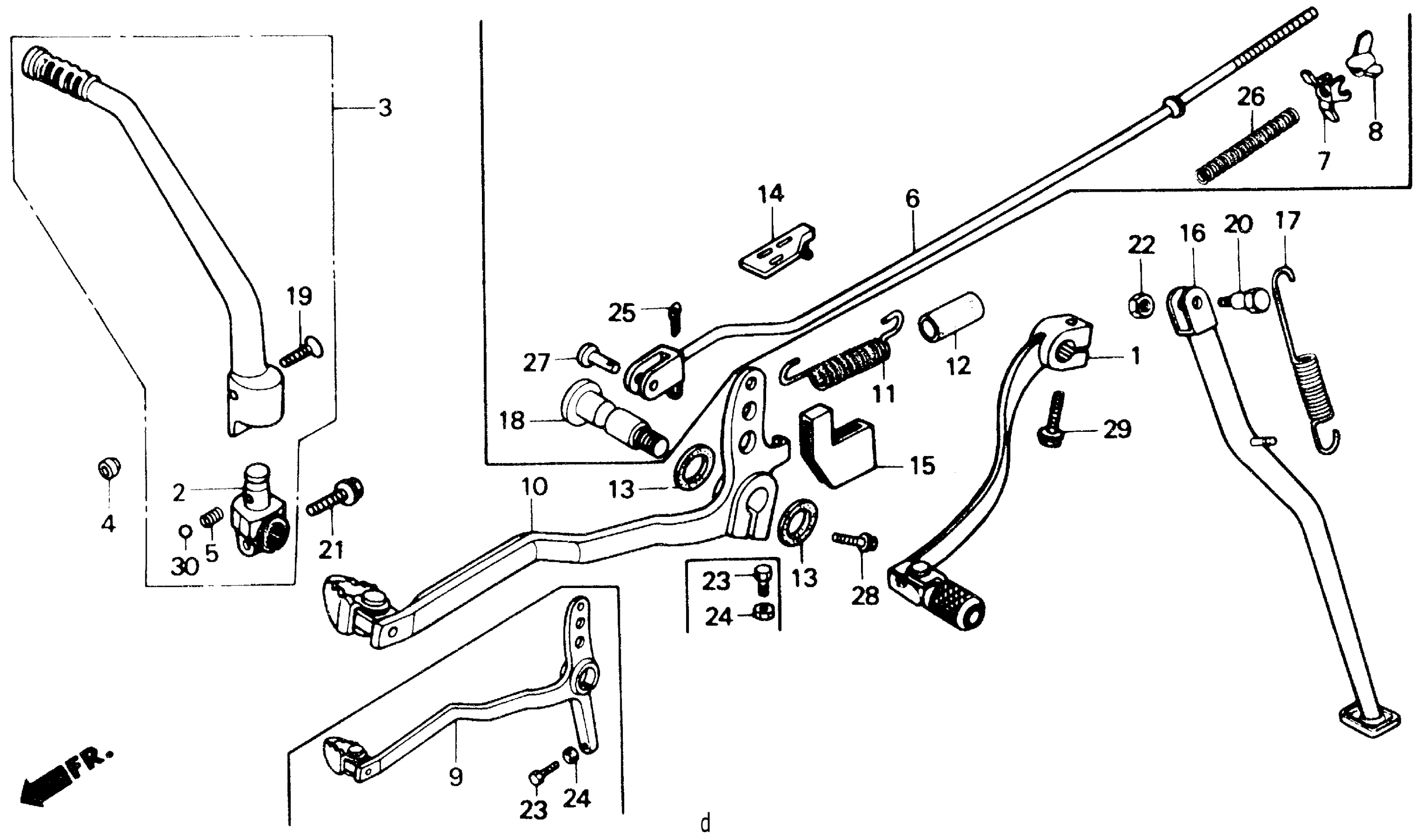

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KT1-670

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28241-KT1-671

Unavailable

ARM ASSY., KICK STARTER

28300-KT1-671

$122.26

PLUG, KICK ARM

28302-965-000

$2.59

SPRING, KICK STARTER

28333-KK0-000

$2.51

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-KZ9-000

Unavailable

SPRING, BRAKE PEDAL

46514-KZ9-000

$5.14

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

COVER, MIDDLE ARM (NOT AVAILABLE)

46526-KZ9-000

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-KT1-770

Unavailable

SPRING, SIDE STAND

50535-KN5-670

$6.54

BOLT, KICK ARM

90101-KT1-780

Unavailable

SCREW, SIDE STAND PIVOT (NOT AVAILABLE)

90108-MN1-670

Unavailable

BOLT, FLANGE (8X25)

96300-08025-07

$2.09

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

BOLT, FLANGE (8X25)

96300-08025-07

$2.09

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
