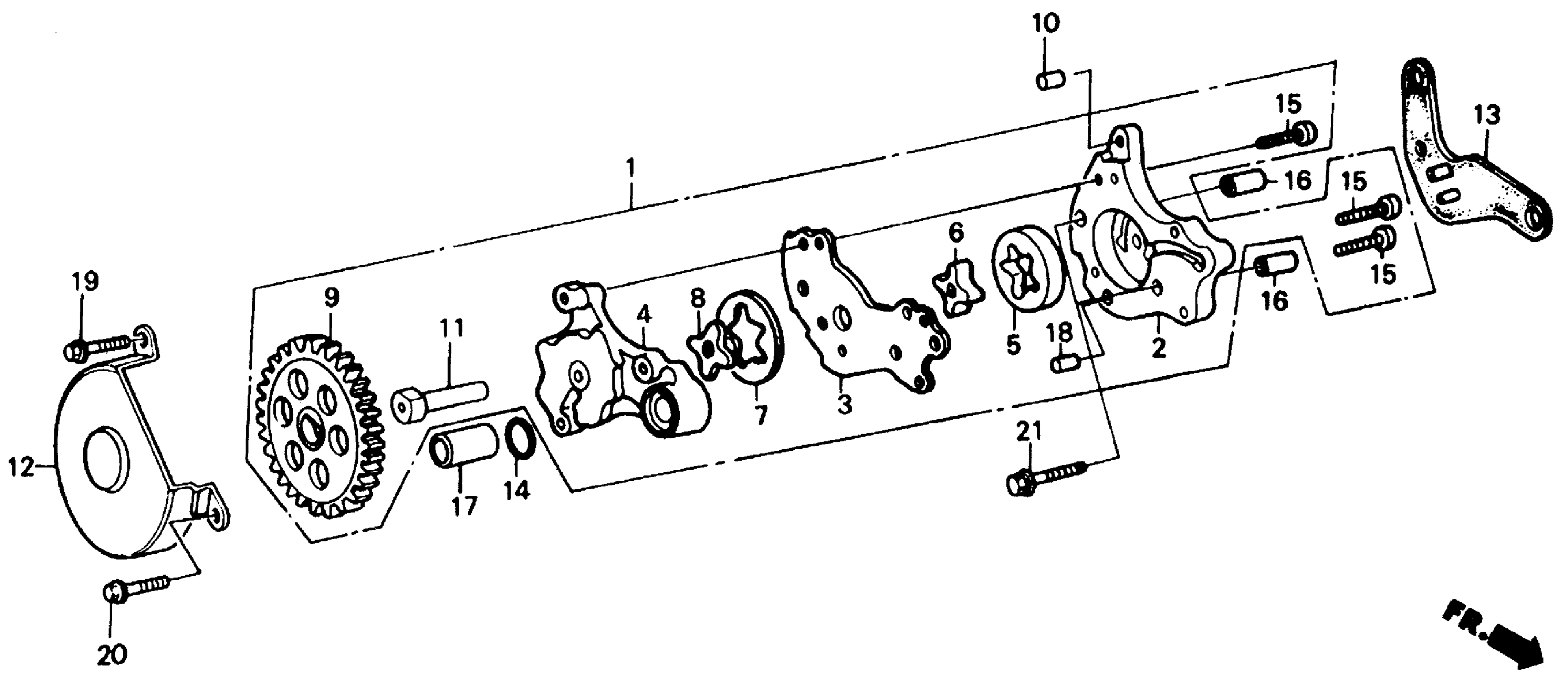

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 OIL PUMP 85-91 Diagram

#

Description
Price

1

PUMP ASSY., OIL This part replaces 15100-KK1-771.

15100-KK1-772

Unavailable

3

PLATE, OIL PUMP (SOURCE: VINTAGE PARTS INC.)

15112-KL4-000

$10.82

4

COVER, OIL PUMP (SOURCE: VINTAGE PARTS INC.)

15121-KL4-000

$40.21

5

ROTOR, OIL PUMP (OUTER) (SOURCE: VINTAGE PARTS INC.)

15122-KK0-000

Unavailable

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-KK0-000

Unavailable

7

ROTOR B, OIL PUMP (OUTER) (SOURCE: VINTAGE PARTS INC.)

15124-KG0-000

Unavailable

8

ROTOR B, OIL PUMP (INNER) (NOT AVAILABLE)

15125-KG0-000

Unavailable

9

GEAR, OIL PUMP DRIVEN (30T) (SOURCE: VINTAGE PARTS INC.)

15140-KK1-000

Unavailable

11

SHAFT, OIL PUMP (SOURCE: VINTAGE PARTS INC.)

15141-KK0-000

Unavailable

12

COVER, OIL PUMP GEAR (SOURCE: VINTAGE PARTS INC.)

15151-KK0-000

Unavailable

13

SEAT, OIL PUMP This part replaces 15152-KZ1-670.

15152-KW3-881

Unavailable

14

GASKET, RUBBER

91303-KK0-003

$2.97

15

SCREW, PAN (5X16)

93500-05016-0A

$1.49

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

PIN, DOWEL (10X16)

94301-10160

$2.28

18

PIN, DOWEL (4X8) (SOURCE: VINTAGE PARTS INC.)

94303-04080

Unavailable

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

21

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
