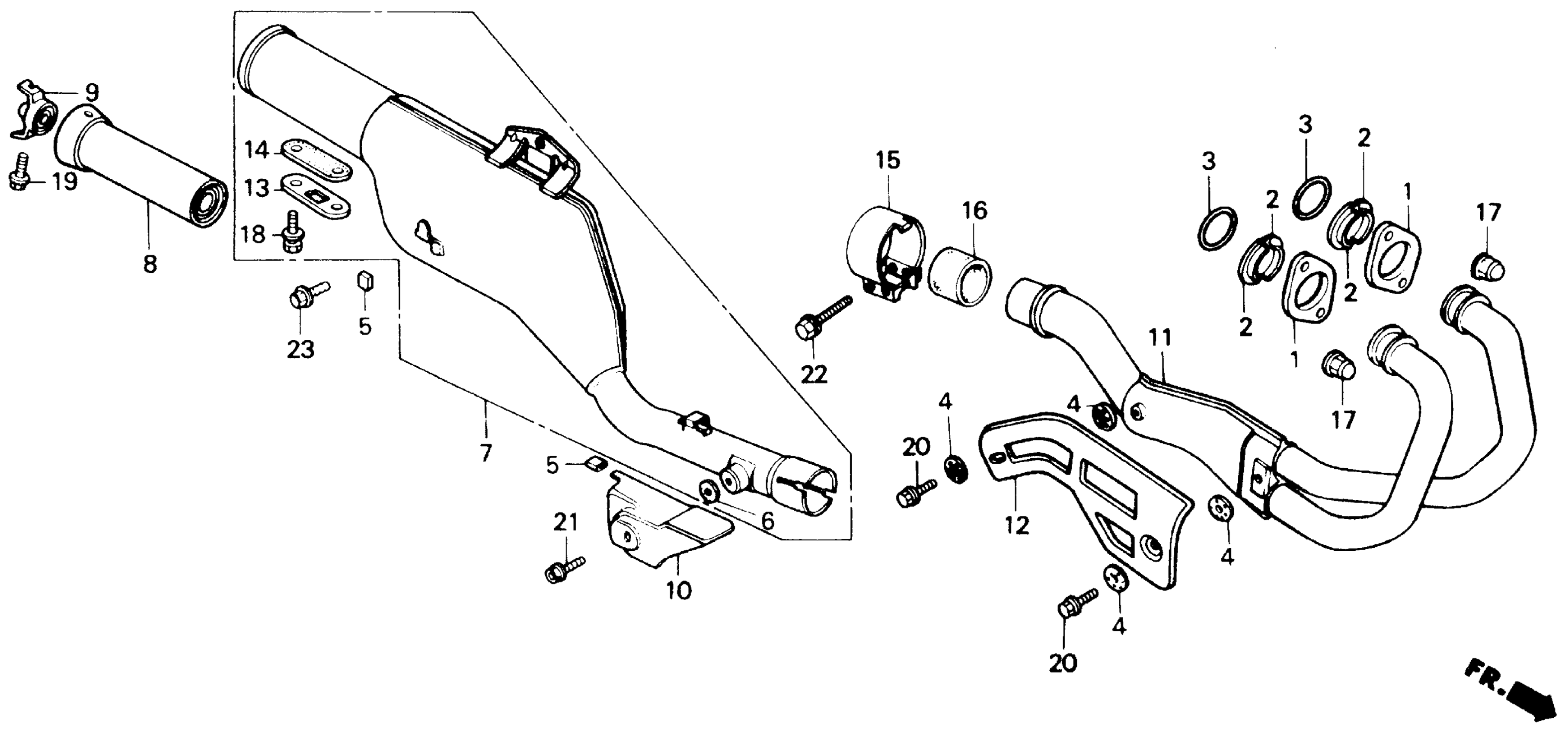

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 MUFFLER 90-91 Diagram

JOINT, EX. PIPE (NOT AVAILABLE)

18231-KK0-000

Unavailable

COLLAR, EX. PIPE JOINT

18233-437-000

$9.37

GASKET, EX. PIPE

18291-KZ1-670

$5.46

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

GASKET, PROTECTOR

18292-MM9-740

$3.03

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

GASKET B, MUFFLER

18295-KV6-920

Unavailable

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

MUFFLER This part replaces 18310-KZ1-670.

18310-KZ1-671

Unavailable

PIPE, TAIL

18311-KT0-670

Unavailable

PIPE, TAIL END

18312-KT1-670

Unavailable

PLATE, HEAT GUARD (NOT AVAILABLE)

18315-KZ9-000

Unavailable

PIPE, EX. (NOT AVAILABLE)

18320-KT1-670

Unavailable

PROTECTOR, EX. PIPE (NOT AVAILABLE) This part replaces 18325-KT1-900.

18325-KK0-000

Unavailable

LID, MUFFLER

18373-429-010

$9.15

GASKET, MUFFLER LID

18374-MN1-880

$4.21

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

BAND, MUFFLER

18376-KG0-003

$18.83

GASKET, MUFFLER

18392-MK4-000

$13.66

NUT, CAP (6MM)

90304-438-000

$7.14

BOLT-WASHER (6X12)

93401-06012-07

$1.62

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (8X22)

96300-08022-00

$2.16

BOLT, FLANGE (8X40)

96300-08040-07

$2.02

BOLT, FLANGE (10X25) This part replaces 96300-10020-00.

96300-10025-00

$2.39

BOLT, FLANGE (10X25)

96300-10025-00

$2.39
