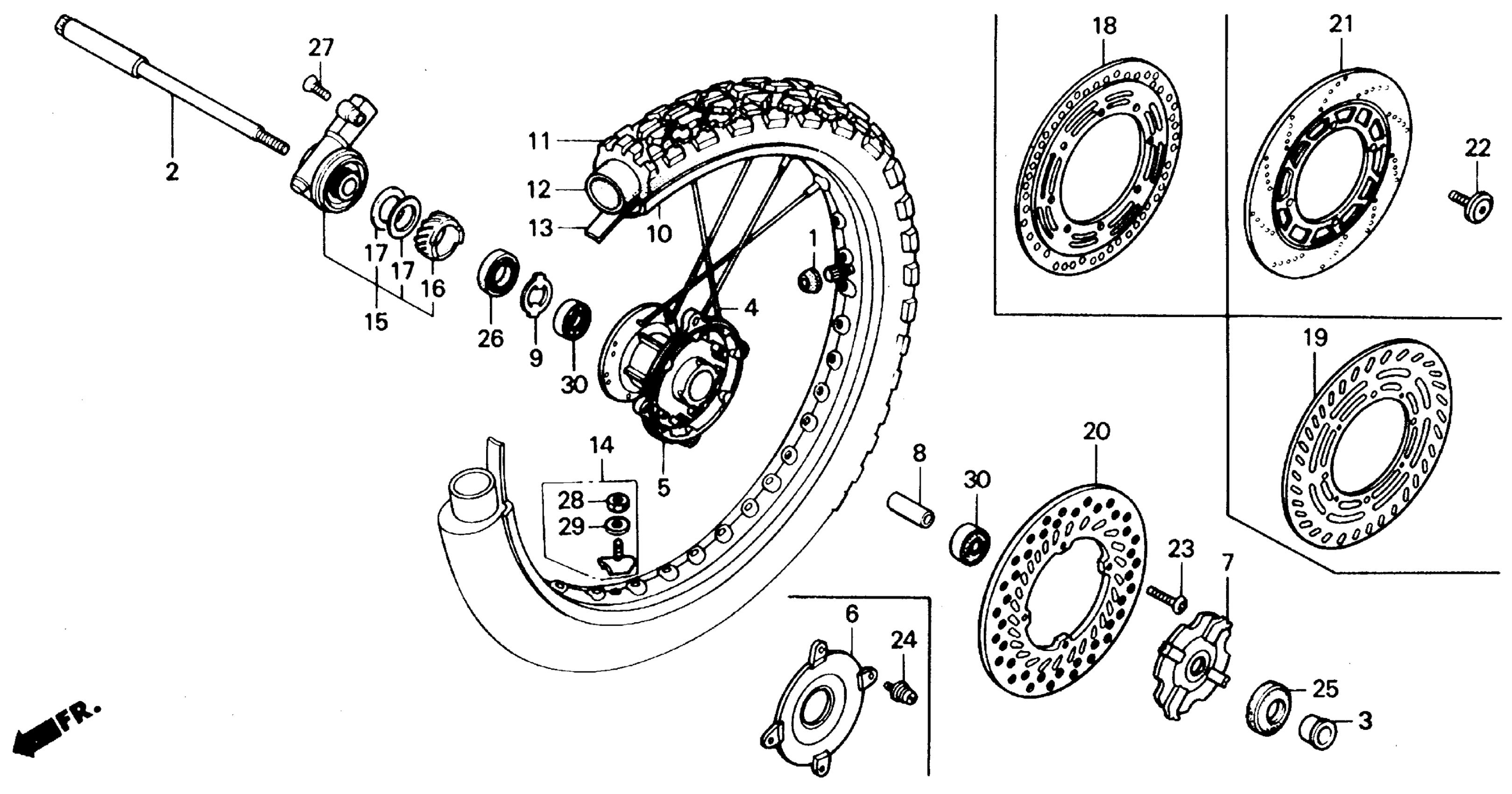

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 FRONT WHEEL Diagram

CAP, VALVE

42714-KA3-710

$10.46

AXLE, FR. WHEEL

44301-KBR-000

$62.80

AXLE, FR. WHEEL This part replaces 44301-KF0-000.

44301-KBR-000

$62.80

COLLAR, FR. WHEEL

44311-MG3-000

$18.02

SPOKE SET, FR. (E10X249) This part replaces 446A0-MN1-672.

44610-KZ1-405

$5.07

SPOKE SET, FR. (E10X249) This part replaces 44610-KT0-406.

44610-KZ1-405

$5.07

SPOKE SET, FR. (E10X249)

44610-KZ1-405

$5.07

HUB, FR. WHEEL (NOT AVAILABLE)

44601-MN1-672

Unavailable

COVER, FR. WHEEL HUB *NH1* (BLACK)

44610-KW3-000ZB

$14.05

COVER, FR. HUB *NH1* (BLACK)

44610-KW3-010ZB

$14.05

COLLAR, FR. WHEEL DISTANCE

44620-MG3-000

$14.26

RETAINER, GEAR BOX

44680-MA0-000

$7.41

RIM, FR. WHEEL

44701-MN1-671

Unavailable

TIRE, FR. (80/100-21) (51M VE35F) (INOUE)

44711-MK2-771

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)

44713-446-631

Unavailable

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

BOX ASSY., SPEEDOMETER GEAR

44800-KF0-023

$118.23

GEAR, SPEEDOMETER

44806-KF0-000

$35.39

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

DISK, FR. BRAKE

45351-KV6-670

$255.31

DISK, FR. BRAKE This part replaces 45351-KZ1-770.

45351-KV6-670

$255.31

BOLT, DISK (6X17)

90105-KN5-000

$3.89

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
