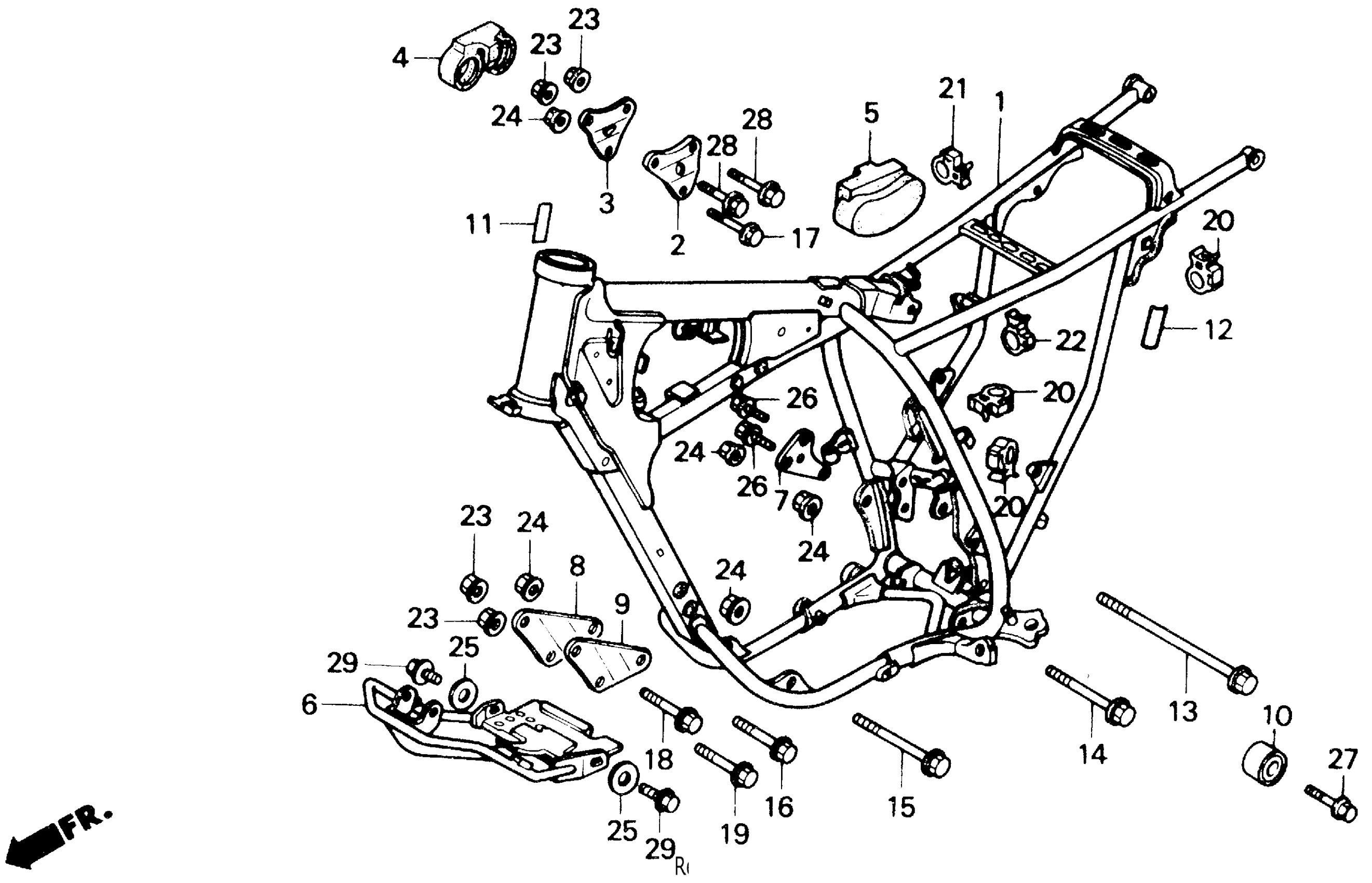

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 FRAME 86-91 Diagram

FRAME *NH138* (SHASTA WHITE) (NOT AVAILABLE)

50100-KZ1-670ZA

Unavailable

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50138-KT1-670

Unavailable

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50139-KT1-670

Unavailable

RUBBER, L. TANK GUARD (NOT AVAILABLE)

50212-KT1-671

Unavailable

RUBBER, L. TANK GUARD (NOT AVAILABLE)

50212-KT1-671

Unavailable

PIPE, SKID (NOT AVAILABLE)

50360-KT1-670

Unavailable

PLATE, RR. ENGINE HANGER (SOURCE: VINTAGE PARTS INC.)

50532-KT1-671

Unavailable

PLATE, R. FR. ENGINE HANGER (NOT AVAILABLE)

50533-KT1-671

Unavailable

PLATE, L. FR. ENGINE HANGER (NOT AVAILABLE)

50534-KT1-671

Unavailable

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

LABEL, COLOR (NH138H) (TYPE1) (NOT AVAILABLE)

87565-KZ1-770ZA

Unavailable

BOLT, FLANGE (10X151) (NOT AVAILABLE)

90102-KT1-780

Unavailable

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

BOLT, FLANGE (10X100) (SOURCE: VINTAGE PARTS INC.)

90108-KK0-000

Unavailable

BOLT, FLANGE (10X74) (NOT AVAILABLE)

90113-KN5-670

Unavailable

BOLT, FLANGE (10X61)

90128-GN1-000

$6.84

BOLT, FLANGE (8X85) (NOT AVAILABLE)

90216-KJ2-000

Unavailable

BOLT, FLANGE (8X75)

90217-KJ2-000

Unavailable

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (8MM)

94101-08000

$1.49

BOLT, FLANGE (8X18)

96300-08018-00

$1.80

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

BOLT, FLANGE (8X65)

96300-08065-00

$2.39

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57
