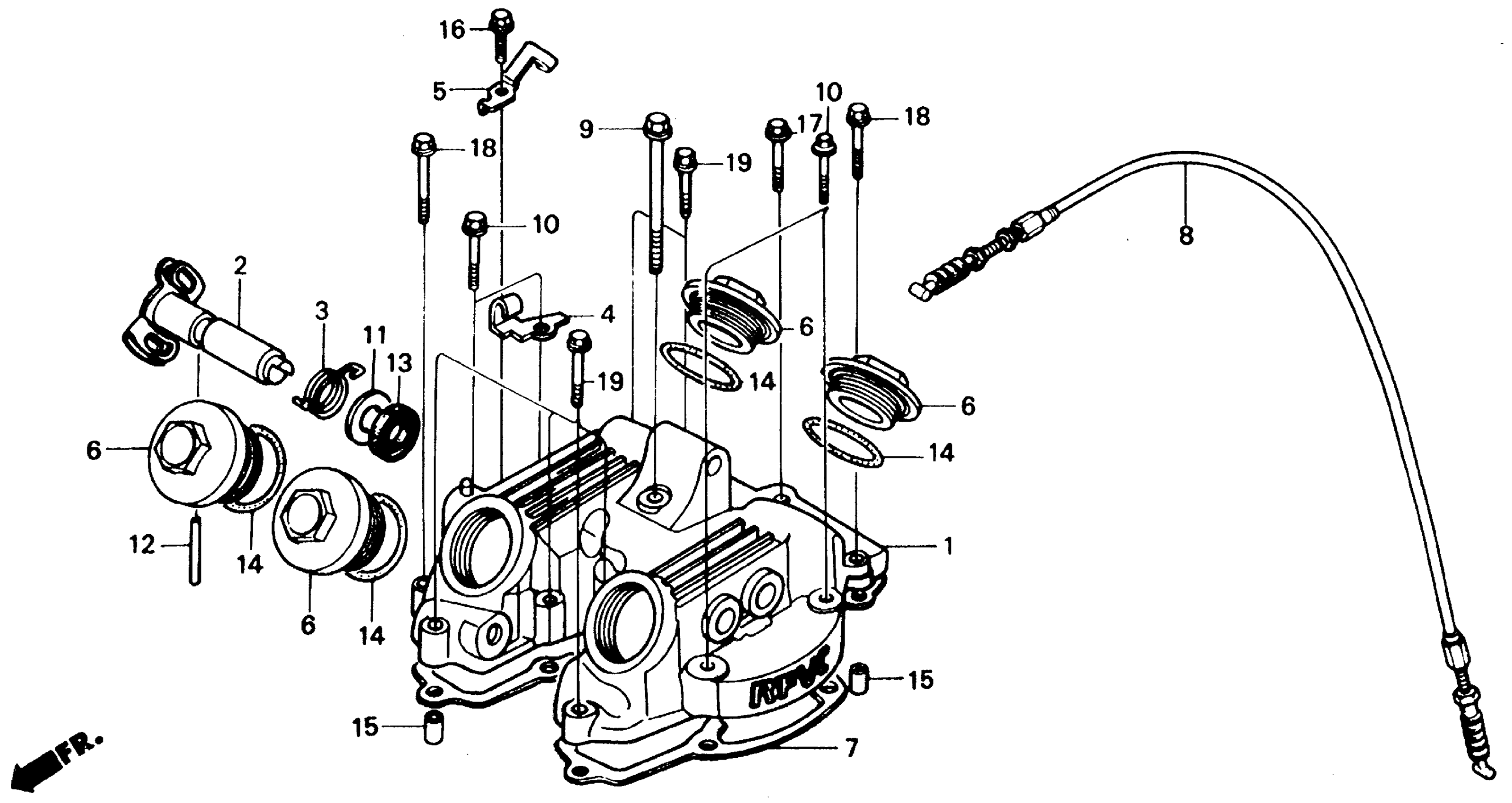

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (SOURCE: VINTAGE PARTS INC.)

12311-KT1-780

Unavailable

2

LIFTER, VALVE (NOT AVAILABLE)

12320-KK1-000

Unavailable

3

SPRING, VALVE LIFTER (NOT AVAILABLE)

12321-KK0-000

Unavailable

4

RECEIVER A, DECOMPRESSION (NOT AVAILABLE)

12323-KK0-000

Unavailable

5

RECEIVER, DECOMPRESSION CABLE

12326-KK1-000

Unavailable

6

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

7

GASKET, HEAD COVER

12391-KR6-010

$45.81

8

CABLE, DECOMPRESSION

28291-KR6-000

$32.80

9

BOLT, FLANGE (8X75) (NOT AVAILABLE)

90017-KE7-000

Unavailable

10

BOLT, FLANGE SOCKET (6X35)

90092-MG3-000

$3.69

11

WASHER (11MM)

90408-KK0-000

$2.81

12

PIN, DOWEL (4X37.5)

91101-KK0-000

Unavailable

13

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$5.12

13

OIL SEAL (11X16X5) (ARAI) This part replaces 91202-MG3-005.

91202-MG3-003

$5.12

14

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

15

PIN, DOWEL (8X14)

94301-08140

$2.25

16

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

17

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

18

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

19

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35
