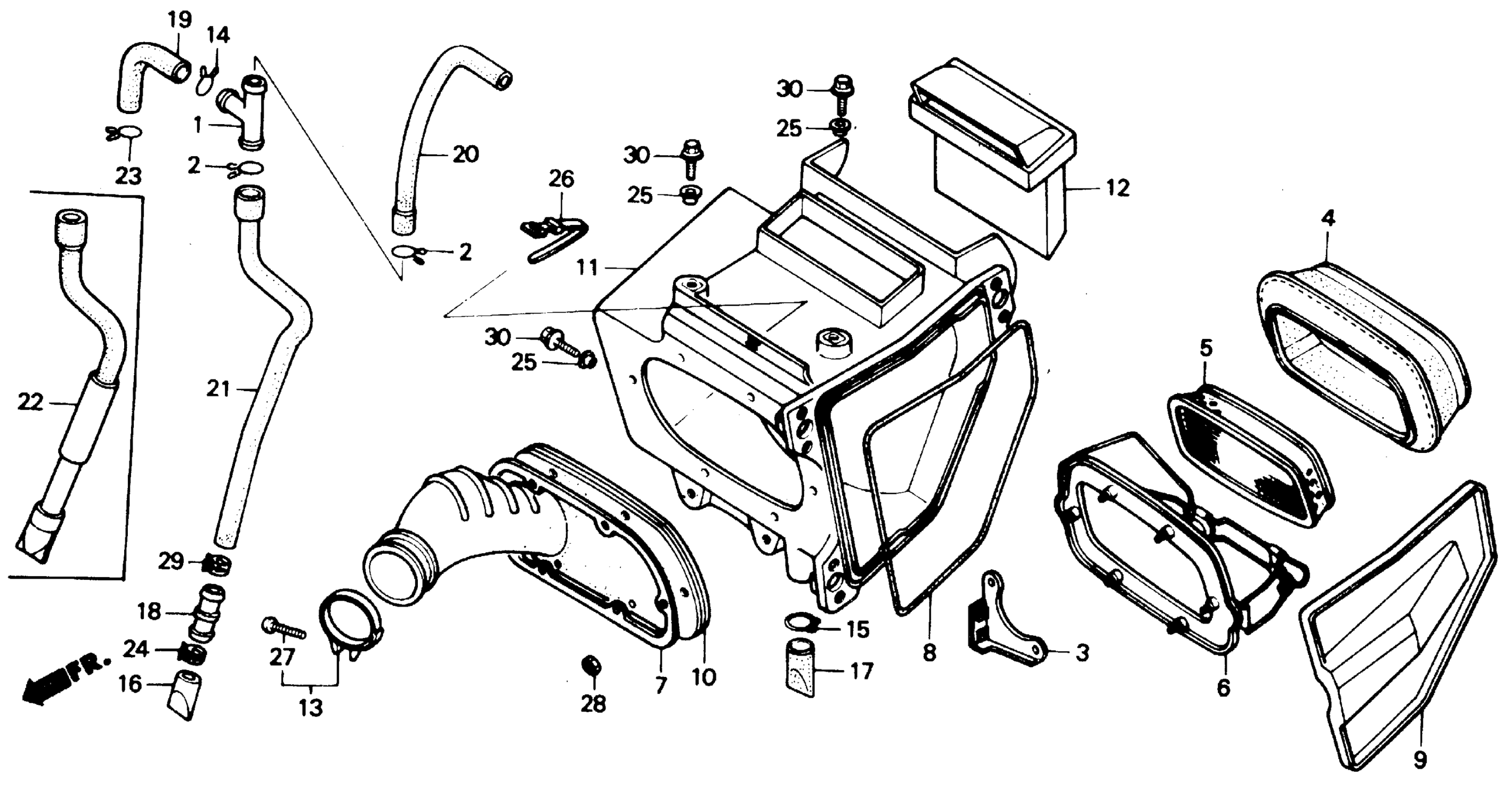

Honda XR250RA (91) MOTORCYCLE, JPN, VIN# JH2ME060-MK700001 AIR CLEANER 86-91 Diagram

#

Description
Price

1

JOINT, BREATHER THREE WAY

15772-KK0-000

$12.13

2

CLIP B, BREATHER TUBE

15772-MN1-670

$2.90

3

STAY, OIL CUP (NOT AVAILABLE)

17211-KZ9-300

Unavailable

4

ELEMENT, AIR CLEANER This part replaces 17213-KF0-000.

17213-MN1-670

$29.00

4

ELEMENT, AIR CLEANER

17213-MN1-670

$29.00

5

HOLDER, ELEMENT (NOT AVAILABLE)

17214-KN5-670

Unavailable

6

PLATE, ELEMENT SETTING (NOT AVAILABLE)

17216-MN1-670

Unavailable

7

PLATE, HOLDER

17217-MN1-670

$16.67

8

SEAL, AIR CLEANER COVER This part replaces 17219-HA2-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-KN5-670.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17219-ZE3-840.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17221-MG2-000.

17219-HA2-405

$5.96

8

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.96

9

COVER, AIR CLEANER HOUSING (INNER) (NOT AVAILABLE)

17221-KV6-000

Unavailable

10

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-KT1-670

Unavailable

11

HOUSING, AIR CLEANER This part replaces 17230-MN1-670.

17230-MN1-671

Unavailable

12

CAP, IN. DUCT (NOT AVAILABLE)

17241-KT1-670

Unavailable

13

BAND, AIR CLEANER CONNECTING TUBE (52) | Use from Frame SN MK701374 This part replaces 90652-GHB-690.

95018-52250

$5.14

13

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

13

BAND, AIR CLEANER CONNECTING TUBE (52) | Use up to Frame SN MK701373 This part replaces 17255-GF5-770.

95018-52250

$5.14

13

BAND, AIR CLEANER CONNECTING TUBE (52) | Use up to Frame SN MK701373 This part replaces 17256-MM8-000.

95018-52250

$5.14

14

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

15

CLIP, BREATHER TUBE

17316-611-000

$9.23

17

TUBE, DRAIN

17359-KK0-000

$7.30

19

TUBE A, BREATHER (NOT AVAILABLE)

17371-KT1-670

Unavailable

20

TUBE B, BREATHER

17372-KZ1-670

Unavailable

22

TUBE C, BREATHER (NOT AVAILABLE)

17373-KZ1-670

Unavailable

23

CLIP, SUB-TANK HOSE

17724-MN1-670

$3.15

25

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

26

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

27

SCREW, PAN (4X20) | Use up to Frame SN MK701373

93500-04020-0G

$1.49

27

SCREW, PAN (4X25) | Use from Frame SN MK701374

93500-04025-0G

$1.49

28

NUT, HEX. (6MM)

94002-06070-0S

$1.49

30

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

30

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$1.49
