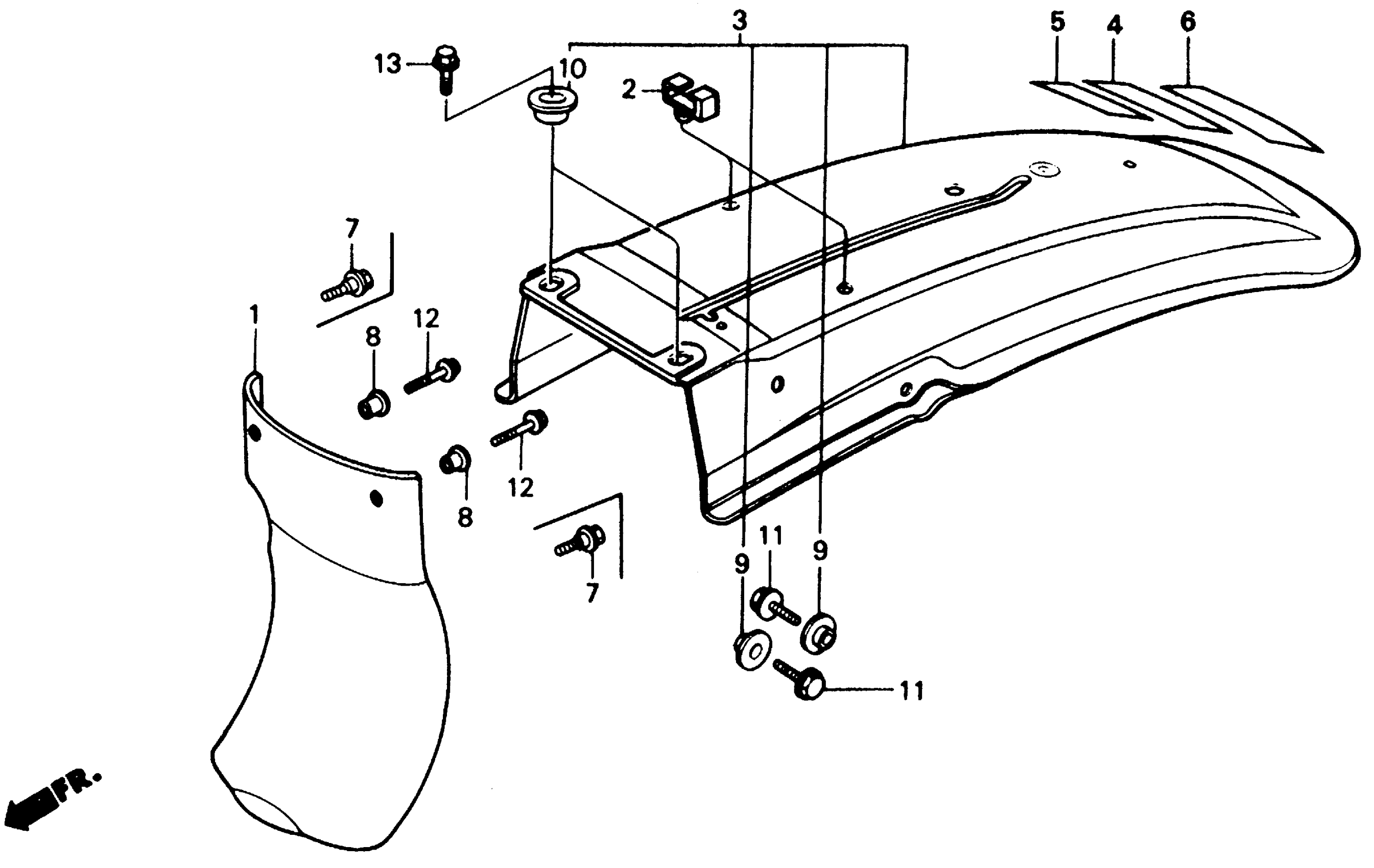

Honda XR250RA (89) MOTORCYCLE, JPN, VIN# JH2ME060-KK500001 TO JH2ME060-KK503076 REAR FENDER Diagram

SPLASH GUARD A, AIR CLEANER HOUSING (NOT AVAILABLE)

17245-KT1-670

Unavailable

GROMMET, WIRE

32985-300-000

$3.19

FENDER, RR. *R119* (FLASH RED) This part replaces 80100-KN5-670ZA.

80100-MN1-670ZA

Unavailable

LABEL, USE CAUTION (NOT AVAILABLE)

87504-KN4-780

Unavailable

LABEL, DRIVE (NOT AVAILABLE)

87560-KN4-780

Unavailable

BOLT, FLANGE (6MM) | Use from Frame SN KK501594

90112-GC6-000

$3.60

WASHER, RR. COVER | Use up to Frame SN KK501844

90506-425-000

$2.66

WASHER (6X20)

90512-300-000

$3.83

WASHER (6X9)

90513-323-000

$1.69

BOLT, FLANGE (6X14)

96300-06014-00

$0.87

BOLT, FLANGE (6X12) | Use up to Frame SN KK501593

96300-06012-07

$1.19

BOLT, FLANGE (6X14)

96300-06014-00

$0.87
