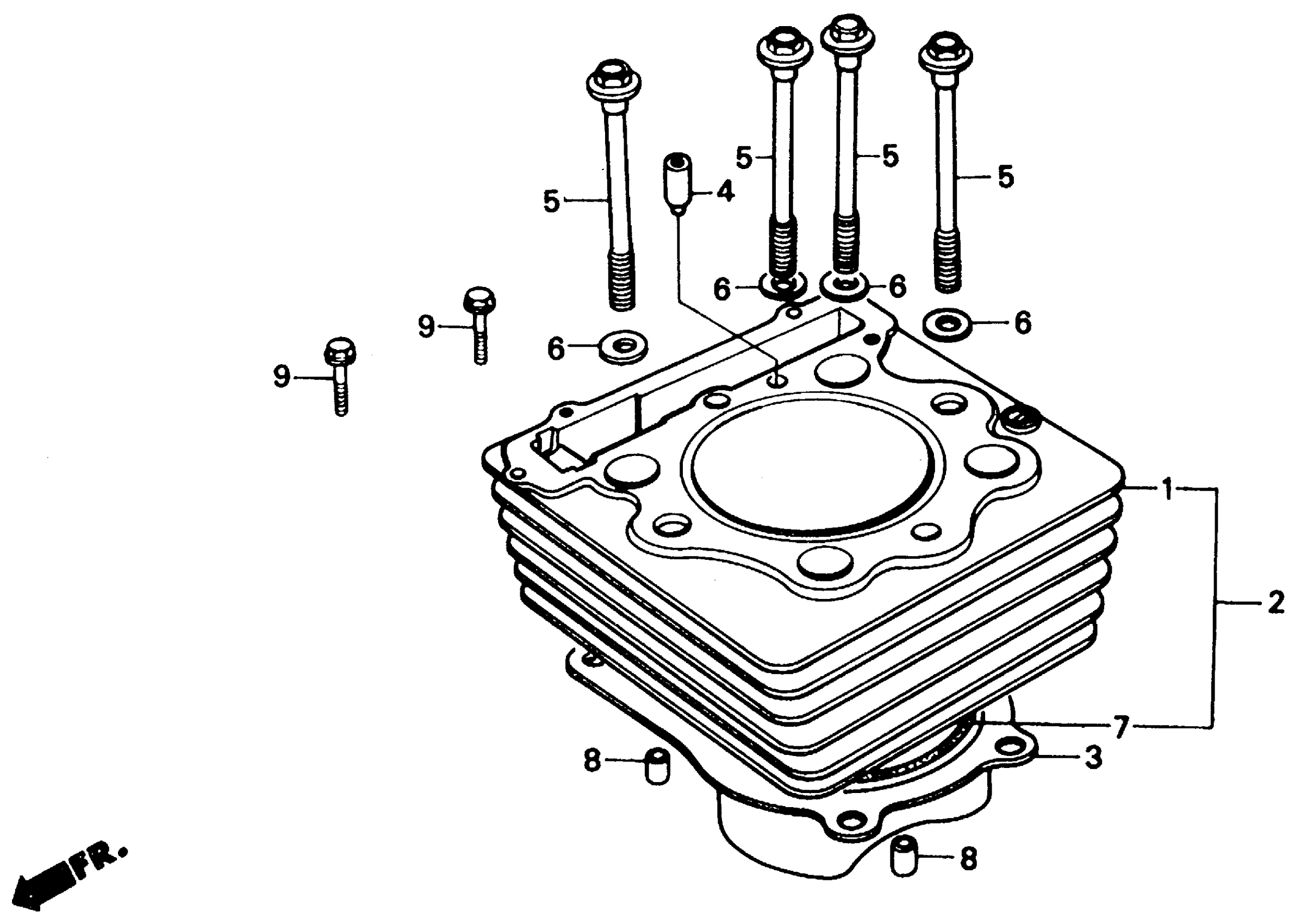

Honda XR250RA (89) MOTORCYCLE, JPN, VIN# JH2ME060-KK500001 TO JH2ME060-KK503076 CYLINDER Diagram

#

Description

Price

2

CYLINDER

12100-KCE-670

Unavailable

2

CYLINDER This part replaces 12100-KT1-780.

12100-KCE-670

Unavailable

2

CYLINDER This part replaces 12100-KT1-781.

12100-KCE-670

Unavailable

3

GASKET, CYLINDER This part replaces 12191-KK0-000.

12191-KZ1-920

$6.98

3

GASKET, CYLINDER

12191-KZ1-920

$6.98

4

SCREW, HEX. SOCKET HEAD (6X16)

90002-KK1-000

Unavailable

5

BOLT, FLANGE (10X88)

90083-KK0-000

$17.08

6

WASHER (10MM)

90410-KR0-000

$2.67

7

O-RING (78.3X2) This part replaces 91302-428-000.

91304-HA0-003

$5.80

7

O-RING (78.3X2) This part replaces 91304-HA0-000.

91304-HA0-003

$5.80

7

O-RING (78.3X2)

91304-HA0-003

$5.80

8

PIN, DOWEL (12X20)

94301-12200

$2.29

9

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

9

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
