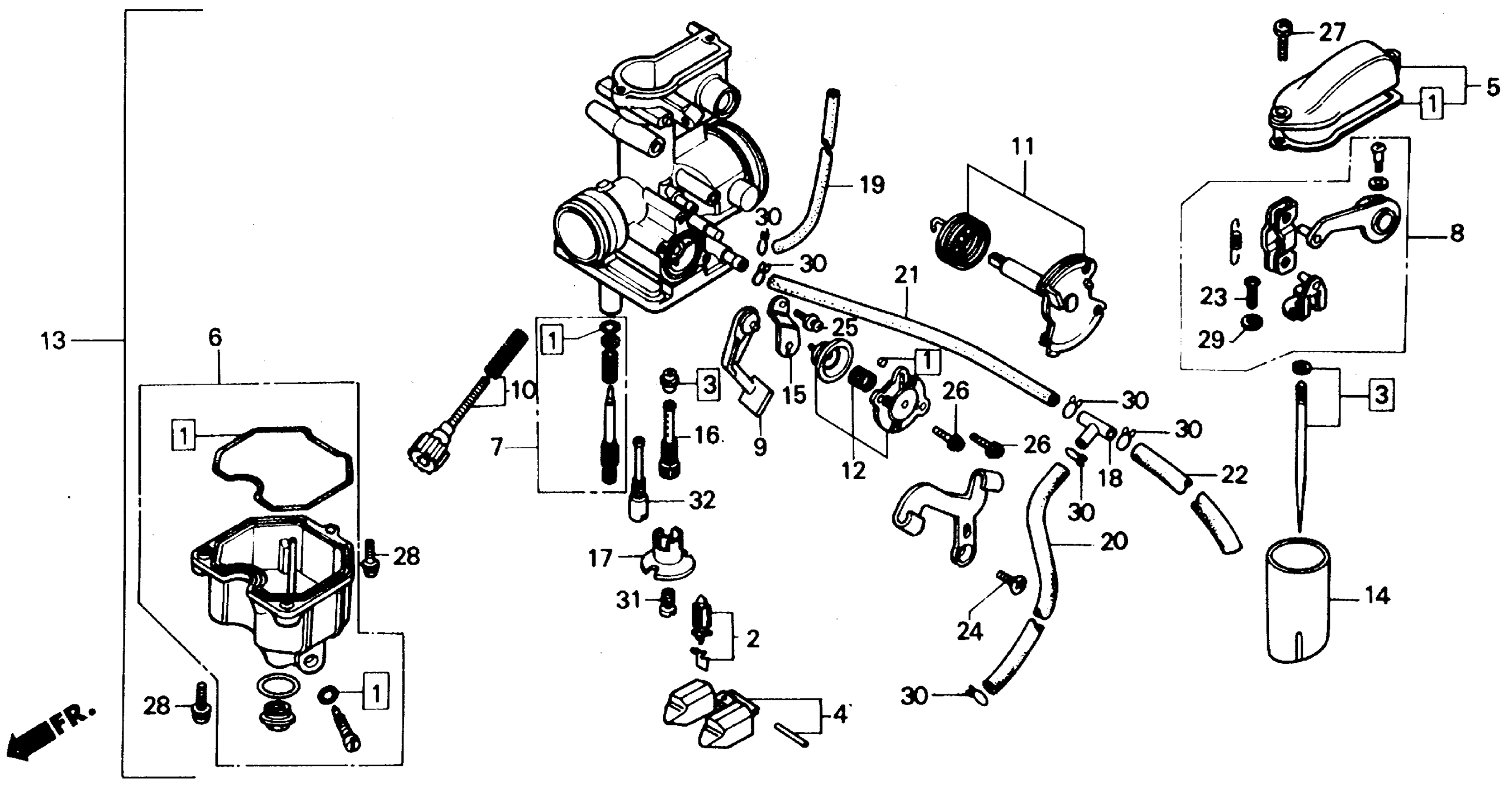

Honda XR250RA (89) MOTORCYCLE, JPN, VIN# JH2ME060-KK500001 TO JH2ME060-KK503076 CARBURETOR 86-91 Diagram

GASKET SET This part replaces 16010-434-004.

16010-434-305

Unavailable

GASKET SET

16010-434-305

Unavailable

VALVE SET, FLOAT

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-KG0-891.

16011-KCK-910

$33.82

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

NEEDLE SET, JET (NOT AVAILABLE) This part replaces 16012-KA6-004.

16012-KZ1-670

Unavailable

FLOAT SET

16013-KN4-A10

$34.66

FLOAT SET This part replaces 16013-KN5-671.

16013-KN4-A10

$34.66

TOP SET

16014-KCE-771

Unavailable

TOP SET This part replaces 16014-KR6-004.

16014-KCE-771

Unavailable

TOP SET This part replaces 16014-471-004.

16014-KCE-771

Unavailable

CHAMBER SET, FLOAT This part replaces 16015-KA6-004.

16015-KCE-671

Unavailable

CHAMBER SET, FLOAT This part replaces 16015-KCE-670.

16015-KCE-671

Unavailable

CHAMBER SET, FLOAT

16015-KCE-671

Unavailable

SCREW SET A This part replaces 16016-385-681.

16016-402-004

$20.82

SCREW SET A

16016-402-004

$20.82

ARM SET, LINK This part replaces 16018-434-004.

16018-KCE-771

Unavailable

LEVER, CHOKE

16019-KCE-671

Unavailable

LEVER, CHOKE This part replaces 16019-KN5-671.

16019-KCE-671

Unavailable

LEVER, CHOKE This part replaces 16019-KN5-672.

16019-KCE-671

Unavailable

SCREW SET B (NOT AVAILABLE)

16028-435-004

Unavailable

LINK SET, THROTTLE (NOT AVAILABLE)

16032-KA6-004

Unavailable

VALVE SET, AIR CUT

16048-KB7-901

$149.08

CARBURETOR ASSY. This part replaces 16100-KT1-014.

16100-KT1-652

Unavailable

VALVE, THROTTLE (NOT AVAILABLE)

16111-KA6-014

Unavailable

PLATE, CHOKE LEVER SETTING

16119-429-771

$9.66

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-383-690

Unavailable

HOLDER, JET

16168-382-014

$9.81

T-JOINT

16180-195-731

$12.95

TUBE

16198-KN5-405

$3.74

TUBE This part replaces 16198-KN5-671.

16198-KN5-405

$3.74

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$3.10

TUBE, FUEL

16199-428-405

$3.10

TUBE

16199-KR6-004

$11.02

TUBE, OVERFLOW

16199-435-771

$11.39

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

SCREW-WASHER (4X10)

93892-04010-08

$1.49

SCREW-WASHER (4X12)

93892-04012-08

$1.49

SCREW-WASHER (4X14)

93892-04014-08

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

CLIP, TUBE (B6.5)

95002-02650

$1.49

JET, MAIN (#108) | (Optional). This part replaces 99101-357-1080.

99113-GHB-1080

$9.32

JET, MAIN (#108) | (Optional).

99113-GHB-1080

$9.32

JET, MAIN (#110) | (Optional). This part replaces 99101-357-1100.

99113-GHB-1100

$9.32

JET, MAIN (#112) | (Optional). This part replaces 99101-357-1120.

99113-GHB-1120

$9.89

JET, MAIN (#115) | (Optional).

99101-357-1150

$18.70

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.43

JET, MAIN (#120) | (Optional).

99101-357-1200

$19.84

JET, MAIN (#122) | (Optional).

99101-357-1220

$17.99

JET, MAIN (#125)

99101-357-1250

$9.98

JET, MAIN (#128) | (Optional).

99101-357-1280

$9.07

JET, MAIN (#130) | (Optional).

99101-357-1300

$8.55

JET, MAIN (#132) | (Optional).

99101-357-1320

$9.07

JET, MAIN (#135) | (Optional).

99101-357-1350

$9.07

JET, MAIN (#110) | (Optional).

99113-GHB-1100

$9.32

JET, MAIN (#112) | (Optional).

99113-GHB-1120

$9.89

JET, SLOW (#40)

99103-MAL-0400

$11.26

JET, SLOW (#38) | (Optional).

99103-MV9-0380

$11.73

JET, SLOW (#42) | (Optional).

99103-MV9-0420

$20.89

JET, SLOW (#38) | (Optional). This part replaces 99103-437-0380.

99103-MV9-0380

$11.73

JET, SLOW (#40) This part replaces 99103-437-0400.

99103-MAL-0400

$11.26

JET, SLOW (#42) | (Optional). This part replaces 99103-437-0420.

99103-MV9-0420

$20.89
