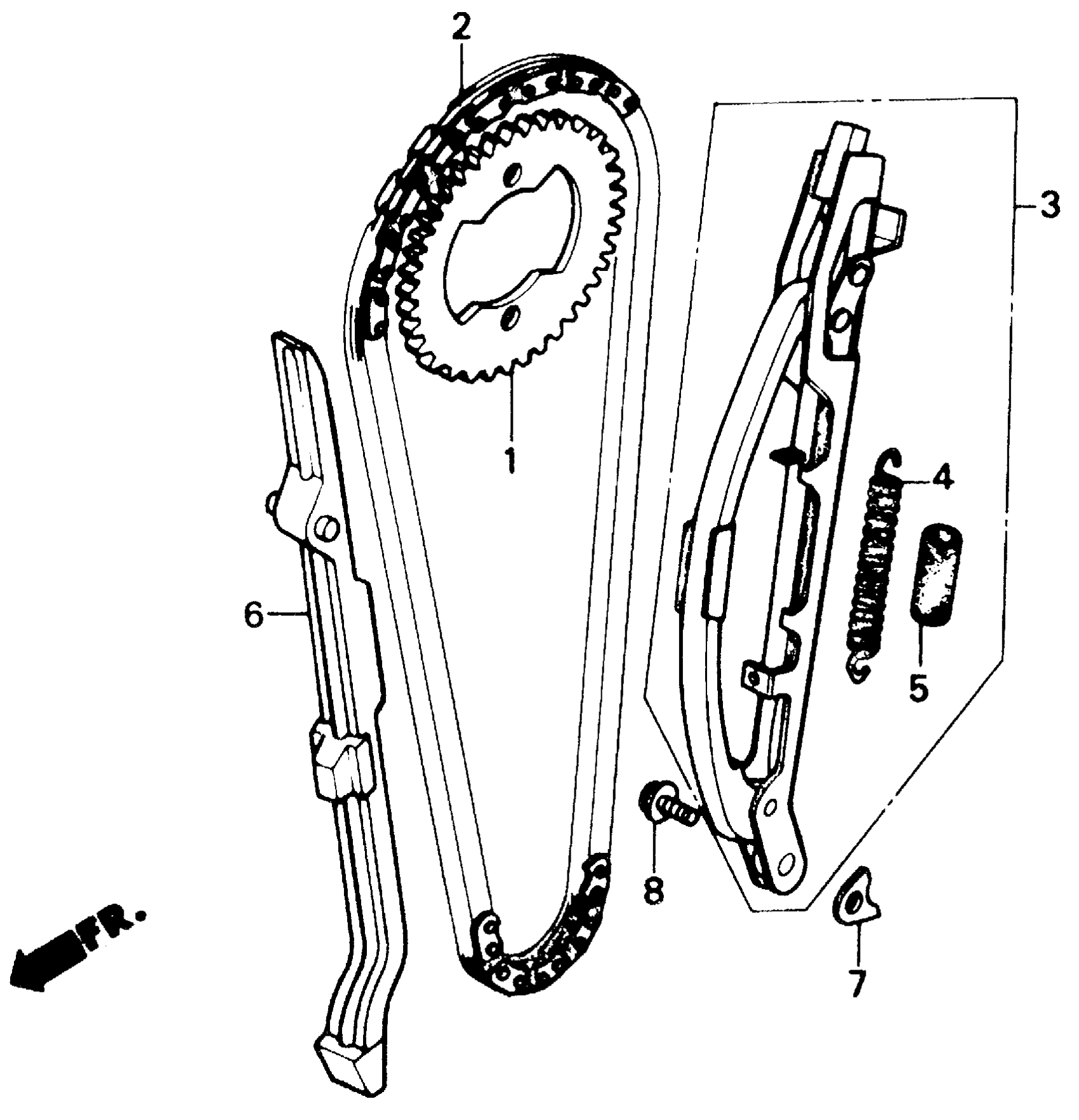

Honda XR250RA (89) MOTORCYCLE, JPN, VIN# JH2ME060-KK500001 TO JH2ME060-KK503076 CAM CHAIN Diagram

#

Description

Price

1

SPROCKET, CAM (38T) (NOT AVAILABLE) This part replaces 14321-KK0-000.

14321-KR0-000

Unavailable

2

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-KK1-004.

14401-KK1-003

Unavailable

2

CHAIN, CAM (TSUBAKIMOTO)

14401-KK1-003

Unavailable

3

TENSIONER, CAM CHAIN

14500-KK1-000

$147.53

4

SPRING, CAM CHAIN TENSIONER

14516-KB4-670

$6.64

5

TUBE, TENSIONER SPRING (NOT AVAILABLE)

14539-KK0-300

Unavailable

6

GUIDE, CAM CHAIN

14620-KK1-000

$52.29

7

PLATE, BEARING SETTING

23521-KK0-000

Unavailable

8

BOLT, TENSIONER SETTING

90022-KK0-000

Unavailable
