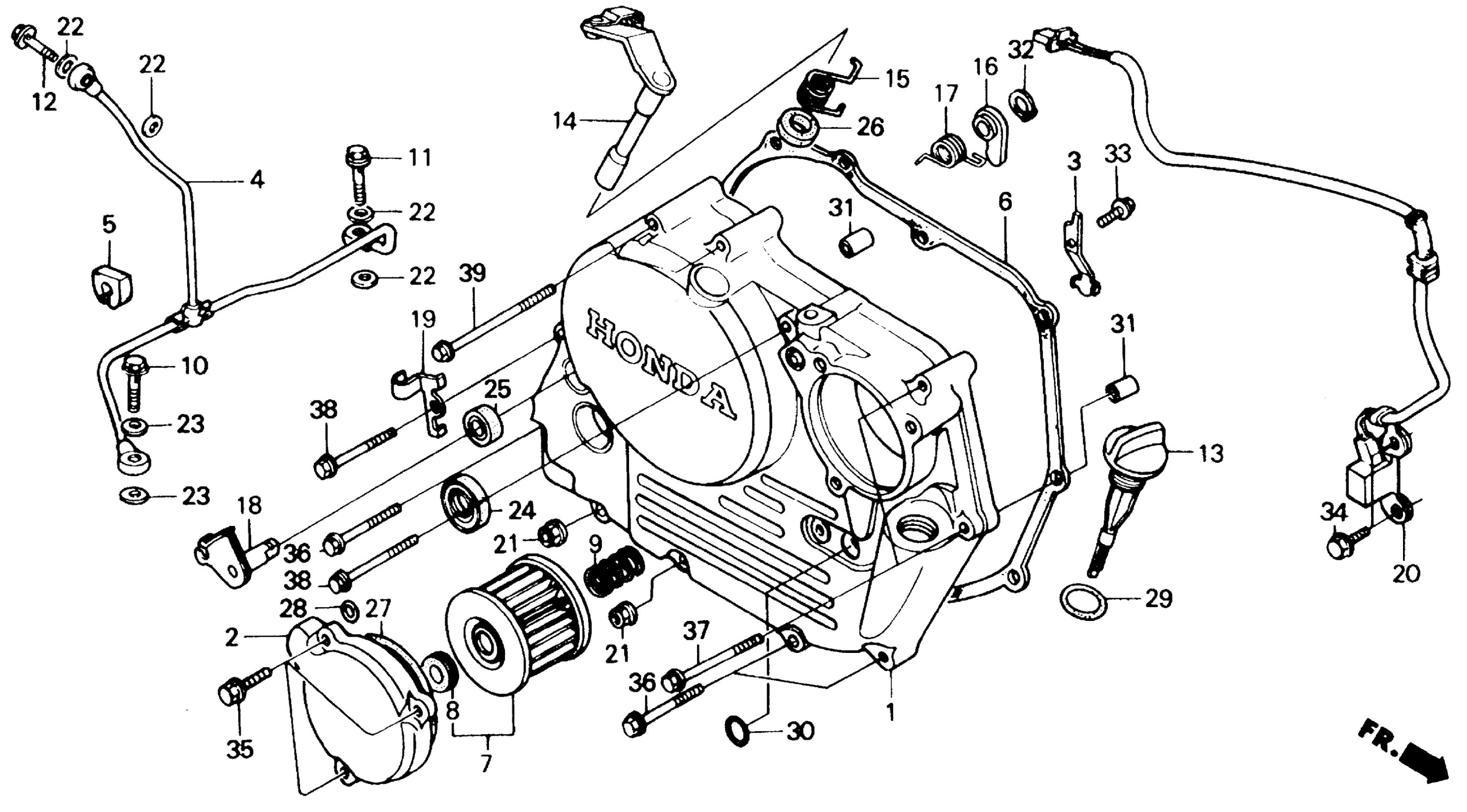

Honda XR250RA (88) MOTORCYCLE, JPN, VIN# JH2ME060-JK400001 TO JH2ME060-JK402430 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-KT1-000.

11330-KT1-010

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-KT1-000

Unavailable

3

PLATE, OIL SEAL SETTING (NOT AVAILABLE)

11334-KK0-000

Unavailable

4

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-KV6-000

Unavailable

5

RUBBER, OIL PASSAGE PIPE

11338-KK0-000

Unavailable

6

GASKET, R. CRANKCASE COVER This part replaces 11394-KK0-000.

11394-KZ1-920

$20.04

6

GASKET, R. CRANKCASE COVER

11394-KZ1-920

$20.04

7

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

7

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

8

RUBBER, FILTER

15413-MC8-000

$3.35

9

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

10

BOLT, FLANGE (8X28)

15532-KK0-770

$7.00

11

BOLT, FLANGE (7X25)

15533-KK0-000

$7.20

12

BOLT, FLANGE (7X38) (SOURCE: VINTAGE PARTS INC.)

15533-KK0-770

$10.73

13

DIPSTICK, OIL (NOT AVAILABLE)

15650-KT1-000

Unavailable

14

LEVER, CLUTCH (SOURCE: VINTAGE PARTS INC.)

22810-KT1-000

Unavailable

15

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-KT1-000

Unavailable

16

FOLLOWER, CAM

28271-428-000

Unavailable

17

SPRING, FOLLOWER (NOT AVAILABLE)

28274-KK0-000

Unavailable

18

SHAFT, FOLLOWER (NOT AVAILABLE)

28280-KT1-000

Unavailable

19

RECEIVER B, DECOMPRESSION This part replaces 28287-KT1-000.

28287-KT1-010

Unavailable

20

GENERATOR ASSY., PULSE (NOT AVAILABLE) | Use up to Engine SN 5403101 This part replaces 30300-KT1-000.

30300-KT1-003

Unavailable

20

GENERATOR ASSY., PULSE (NOT AVAILABLE) | Use from Engine SN 5403102

30300-KT1-003

Unavailable

21

NUT, U (6MM)

90301-MG3-000

$6.91

22

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

23

WASHER C (8MM)

90475-703-000

$1.49

24

OIL SEAL (18X29X7) (ARAI)

91202-KK0-003

$9.13

24

OIL SEAL (18X29X7) (ARAI) This part replaces 91202-KK0-005.

91202-KK0-003

$9.13

25

OIL SEAL (12X22X5)

91201-965-000

$4.06

26

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

27

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

28

O-RING (7X1.7) This part replaces 91303-KE7-003.

91312-107-000

$3.18

28

O-RING (7X1.7)

91312-107-000

$3.18

29

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

30

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

31

PIN, DOWEL (8X14)

94301-08140

$2.25

32

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

33

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

33

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

34

BOLT, FLANGE SOCKET (6X18) (SOURCE: VINTAGE PARTS INC.)

90072-MF5-860

Unavailable

35

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

35

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

36

BOLT, FLANGE SOCKET (6X28)

90092-KF0-000

Unavailable

37

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

38

BOLT, FLANGE SOCKET (6X45)

90093-MG3-000

$4.89

39

BOLT, FLANGE SOCKET (6X60) (SOURCE: VINTAGE PARTS INC.)

90094-KG0-000

Unavailable
