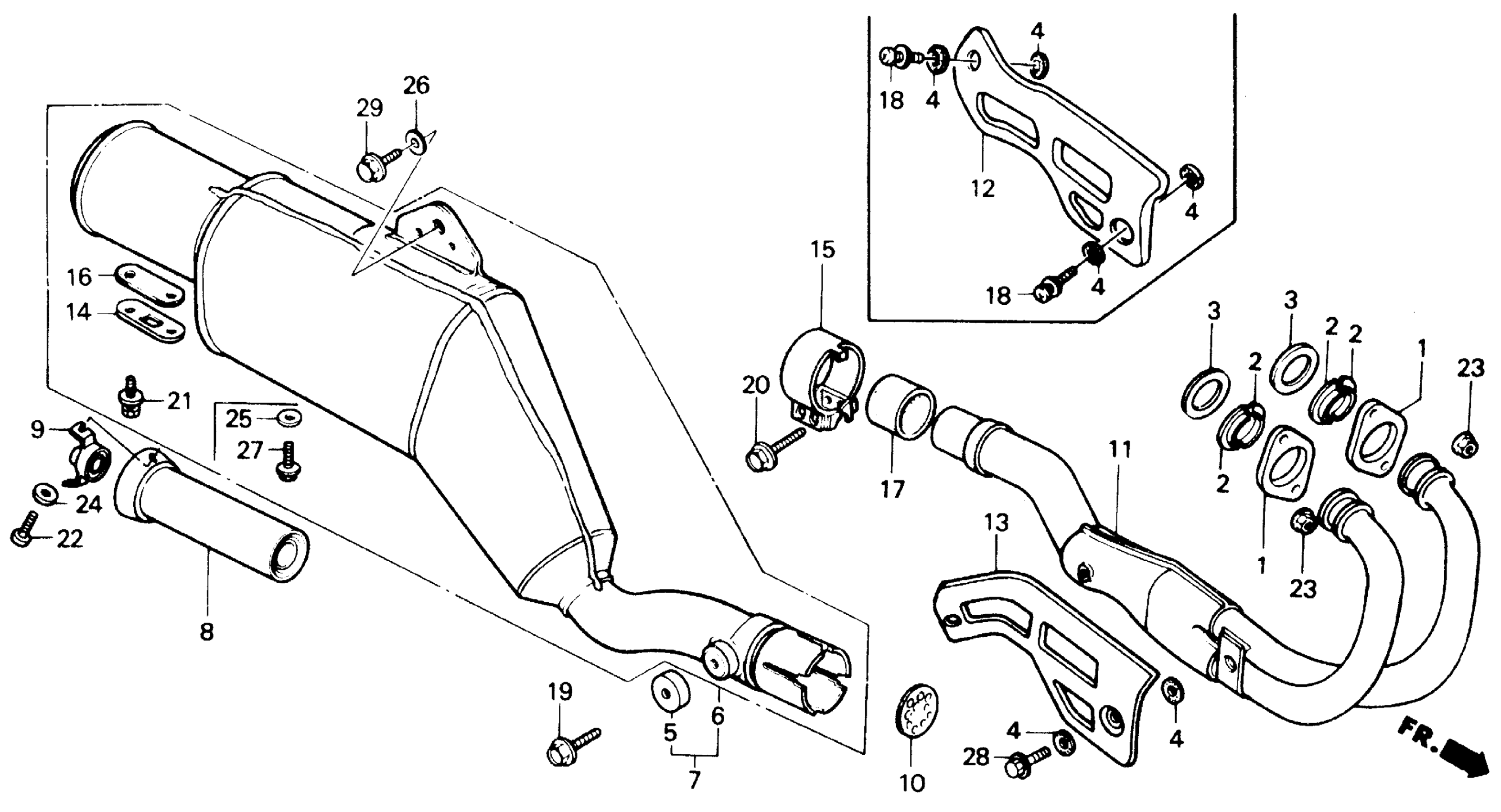

Honda XR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME060-HK300002 TO JH2ME060-HK304481 MUFFLER 84-89 Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-KK0-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-437-000

$9.37

3

GASKET, EX. PIPE This part replaces 18291-KK0-000.

18291-KZ1-670

$5.46

3

GASKET, EX. PIPE

18291-KZ1-670

$5.46

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

4

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

5

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

7

MUFFLER This part replaces 18310-KT1-670.

18310-KT1-671

Unavailable

8

PIPE, TAIL

18311-KT0-670

Unavailable

9

PIPE, TAIL END

18312-KT1-670

Unavailable

11

PIPE, EX. (NOT AVAILABLE)

18320-KT1-670

Unavailable

12

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-KK0-000

Unavailable

14

LID, MUFFLER

18373-429-010

$9.15

15

BAND, MUFFLER

18376-KG0-003

$18.83

16

GASKET, MUFFLER LID

18374-MN1-880

$4.21

16

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

17

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

17

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

17

GASKET, MUFFLER

18392-MK4-000

$13.66

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-02.

95701-06012-02

$2.00

18

BOLT, FLANGE (6X12)

95701-06012-02

$2.00

19

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.49

19

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

20

BOLT, FLANGE (8X32) (NOT AVAILABLE)

90216-KF0-000

Unavailable

21

BOLT-WASHER (6X12)

93401-06012-07

$1.62

21

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

21

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

22

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

22

SCREW, PAN (6X8)

93500-06008-0A

$1.49

22

SCREW, PAN (6X8)

93500-06008-0H

$1.49

22

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (10MM)

94101-10000

$1.49

29

BOLT, FLANGE (10X16) (SOURCE: VINTAGE PARTS INC.)

96300-10016-00

Unavailable
