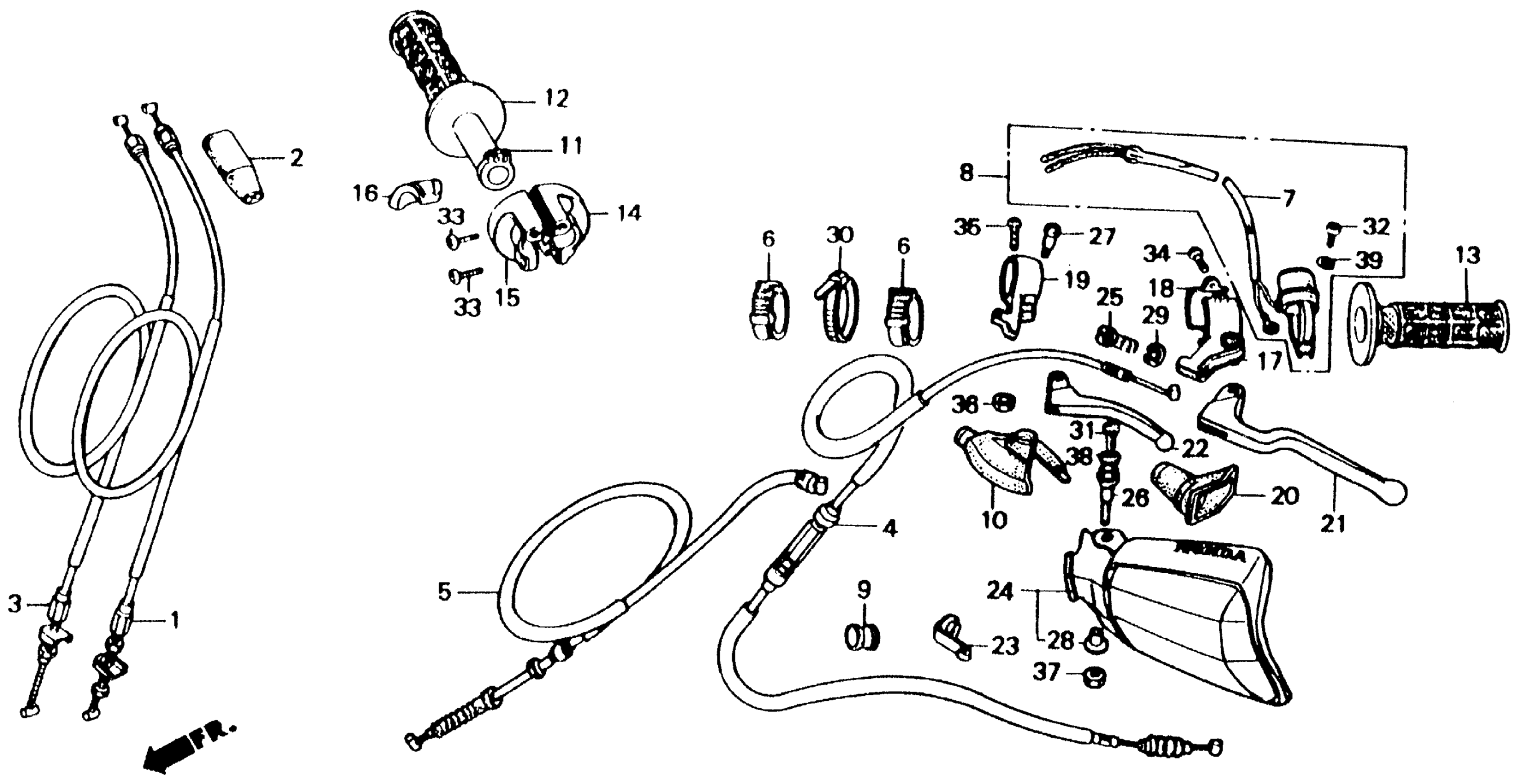

Honda XR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME060-HK300002 TO JH2ME060-HK304481 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-KT1-670.

17910-KT1-671

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

3

CABLE B, THROTTLE This part replaces 17920-KT1-670.

17920-KT1-671

Unavailable

4

CABLE, CLUTCH This part replaces 22870-KT1-670.

22870-KZ1-600

$27.91

4

CABLE, CLUTCH

22870-KZ1-600

$27.91

5

CABLE, DECOMPRESSION (NOT AVAILABLE)

22890-KT1-671

Unavailable

6

BAND B1, WIRE

32161-404-000

$2.23

8

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-KT0-670

Unavailable

10

BOOT, DECOMPRESSION LEVER

50177-MA0-000

$15.79

11

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$22.40

11

PIPE, THROTTLE GRIP

53141-429-010

$22.40

12

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

13

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$9.44

13

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

14

HOUSING, THROTTLE (LOWER)

53168-KF0-000

Unavailable

15

HOUSING, THROTTLE (UPPER)

53167-KF0-000

Unavailable

15

HOUSING, THROTTLE (LOWER)

53168-KF0-000

Unavailable

16

SLIDER, THROTTLE CABLE

53169-KF0-000

Unavailable

17

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

18

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

19

BRACKET, DECOMPRESSION LEVER

53173-435-730

$36.79

20

COVER, L. HANDLE LEVER

53177-KN5-670

$9.41

21

LEVER, L. HANDLEBAR

53178-KF0-000

$38.96

22

LEVER, DECOMPRESSION

53180-MAG-670

$27.22

22

LEVER, DECOMPRESSION This part replaces 53180-435-730.

53180-MAG-670

$27.22

23

PLATE, GUARD SETTING

53181-KN5-670

$6.58

24

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE)

53185-KN5-670ZB

$36.03

25

BOLT, WIRE ADJUSTING

53192-KA4-710

$10.51

26

BOLT, HANDLEBAR PIVOT

90114-KF0-770

Unavailable

27

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

28

COLLAR (6X4)

90127-KF0-770

$3.42

29

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

29

NUT, FIXING

90321-KF0-000

$9.76

31

BOLT, RECESSED (5X8) This part replaces 92300-05008-0A.

92301-05008-0A

$1.49

31

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

32

SCREW, PAN (4X12)

93500-04012-0A

$1.49

32

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

33

SCREW, PAN (5X16)

93500-05016-0A

$1.49

34

SCREW, PAN (5X20)

93500-05020-0A

$1.49

35

SCREW, PAN (6X25)

93500-06025-0A

$1.49

36

NUT, HEX. (5MM)

94001-05000-0S

$2.74

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

38

WASHER, PLAIN (5MM)

94103-05000

$1.49

39

WASHER, SPRING (4MM)

94111-04000

$1.49
