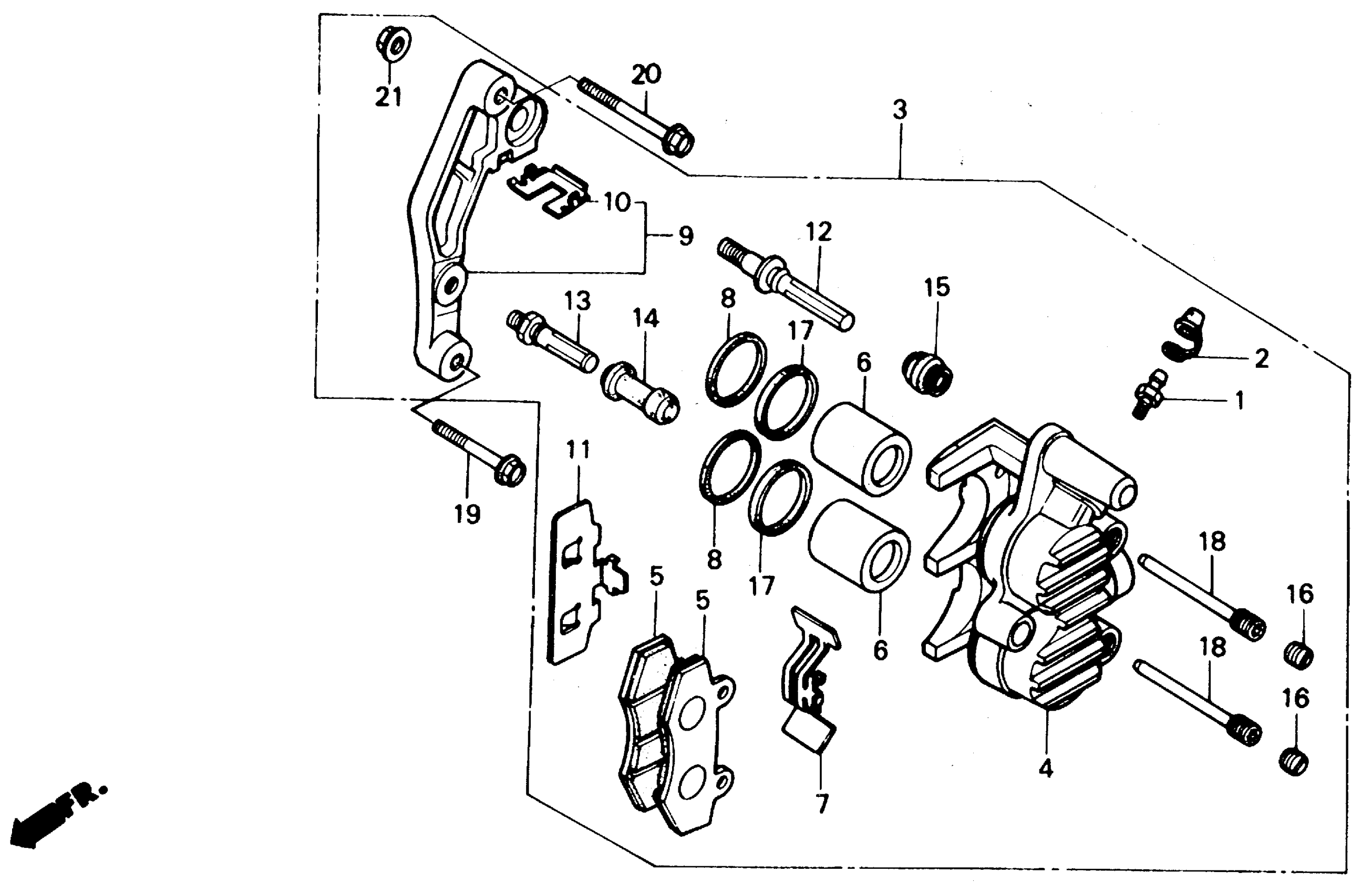

Honda XR250RA (87) MOTORCYCLE, JPN, VIN# JH2ME060-HK300002 TO JH2ME060-HK304481 FRONT BRAKE CALIPER Diagram

BRAKE PAD KIT (NOT AVAILABLE)

451A0-KA3-731

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

CALIPER ASSY., FR. This part replaces 45100-KT1-771.

45100-KT1-772

Unavailable

CALIPER (NOT AVAILABLE)

45101-KS6-006

Unavailable

PAD (SEE KIT P/N--END OF BLOCK)

45105-KA3-731

Unavailable

PISTON This part replaces 45107-KN5-006.

45107-ML0-016

$39.88

PISTON

45107-ML0-016

$39.88

SPRING, PAD

45108-GE2-006

Unavailable

DUST SEAL

43109-MA3-006

$5.49

BRACKET, FR. (NOT AVAILABLE)

45110-KT1-771

Unavailable

RETAINER

45112-MG3-006

$6.94

BOLT A, PIN

45131-MG3-006

Unavailable

BOLT, PIN

45131-166-016

$7.28

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.88

PLUG, PIN

45203-MG3-016

$4.88

SEAL, PISTON

43209-MA3-006

$6.72

PIN, HANGER This part replaces 45215-KA3-731.

45215-KA3-732

$10.56

PIN, HANGER

45215-KA3-732

$10.56

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$1.87

BOLT, FLANGE (8X50) This part replaces 90132-MG3-000.

95801-08050-00

$2.85

BOLT, FLANGE (8X50)

95801-08050-00

$2.85

NUT, FLANGE (8MM)

94050-08080

$0.87
