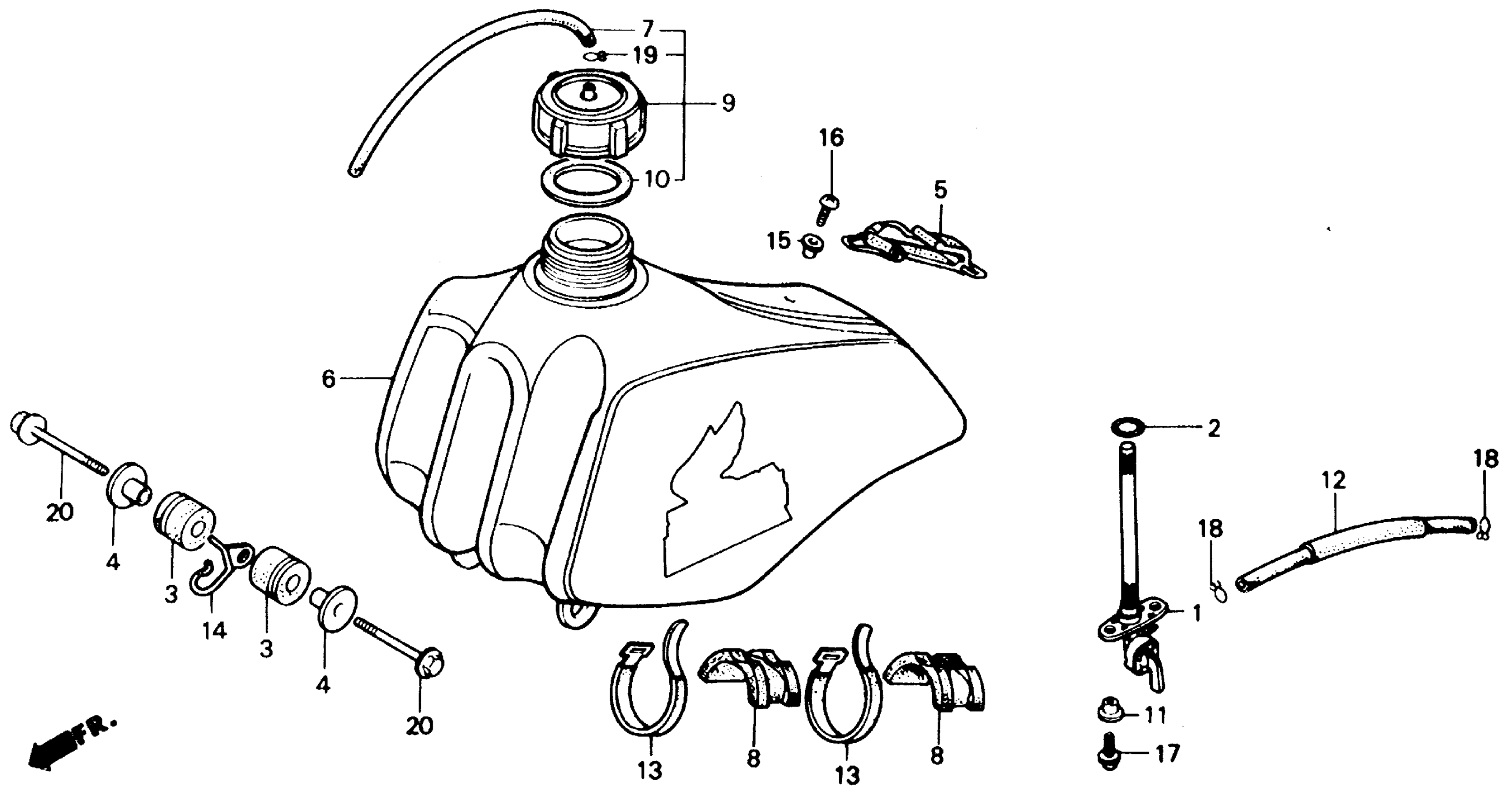

Honda XR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME060-FK100003 TO JH2ME060-FK104453 FUEL TANK 84-85 Diagram

PETCOCK ASSY.

16950-KT0-831

$96.27

PETCOCK ASSY. This part replaces 16950-MA0-005.

16950-KT0-831

$96.27

PETCOCK ASSY. This part replaces 16950-MA0-015.

16950-KT0-831

$96.27

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.75

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

BAND, RR. TANK

17516-GF5-000

$37.83

TK SUB, FUEL *R119* This part replaces 17520-KK1-770ZA.

17520-KK1-771ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

RUBBER, FR. TANK (NOT AVAILABLE)

17611-KA2-000

Unavailable

CAP, FUEL TANK This part replaces 17620-MA0-000.

17620-MA0-405

Unavailable

GASKET, FUEL TANK CAP (NOT AVAILABLE)

17624-467-020

Unavailable

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL This part replaces 17681-KB4-670.

17681-KC2-000

Unavailable

BAND, WIRE (NOT AVAILABLE)

32161-399-000

Unavailable

GUIDE, CABLE (NOT AVAILABLE)

50255-KK0-000

Unavailable

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

SCREW, PAN (6X14)

93500-06014-0A

$1.49

SCREW-WASHER (6X20)

93891-06020-08

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
