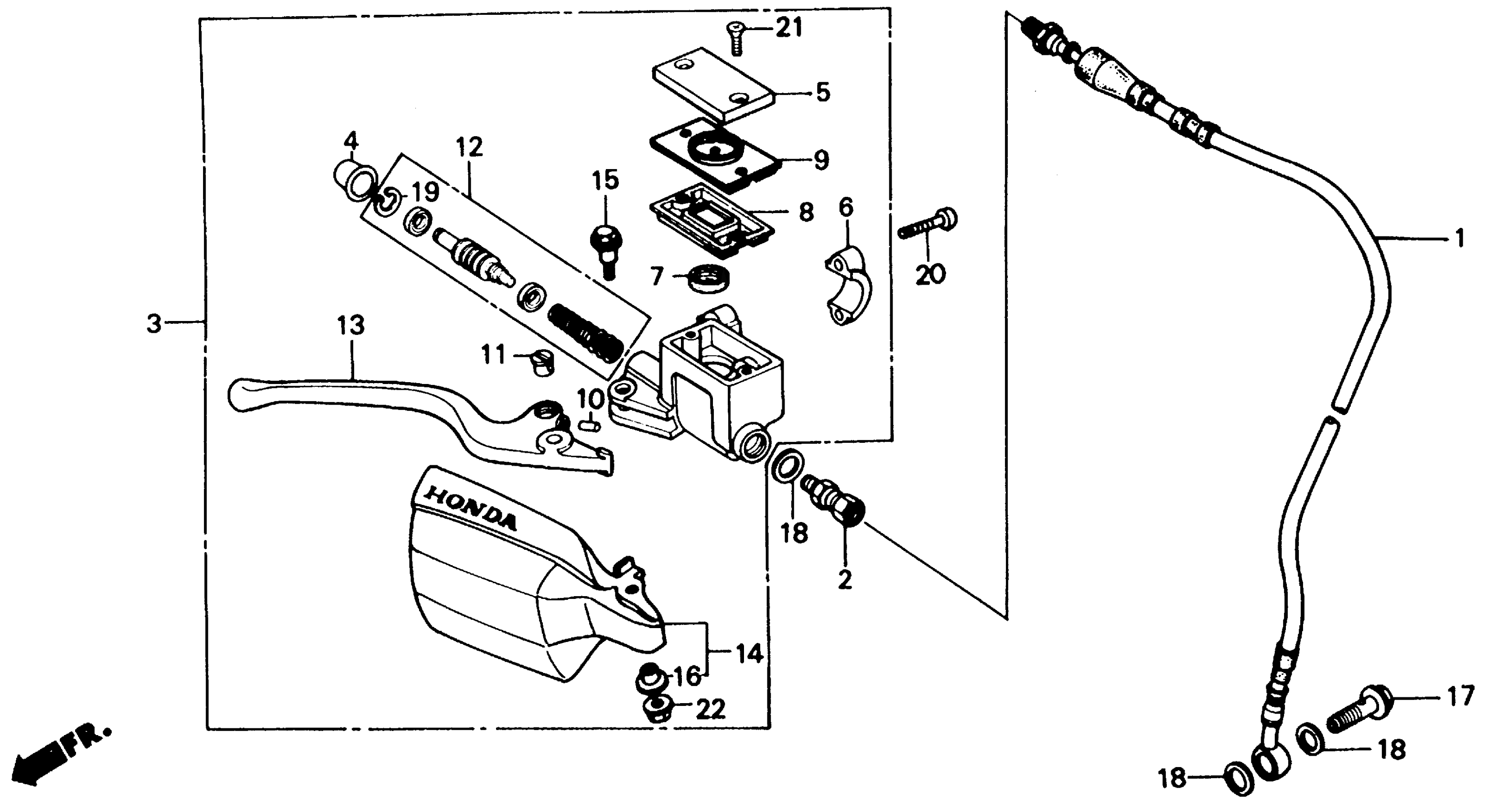

Honda XR250RA (85) MOTORCYCLE, JPN, VIN# JH2ME060-FK100003 TO JH2ME060-FK104453 FRONT BRAKE MASTER CYLINDER 84-85 Diagram

#

Description
Price

1

HOSE, FR. BRAKE This part replaces 45125-KK1-771.

45125-KK1-772

Unavailable

2

JOINT, BRAKE HOSE (NOT AVAILABLE)

45127-MG3-013

Unavailable

3

MASTER CYLINDER ASSY., FR. BRAKE *R119* (NISSIN) (FLASH RED) (NOT AVAILABLE)

45500-KK1-771ZA

Unavailable

4

BOOT

45504-410-003

$12.16

5

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

5

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

6

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

7

SEPARATOR

45518-MG3-016

$12.02

8

DIAPHRAGM

45520-MG7-006

$10.61

9

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

10

ROD, PUSH (NOT AVAILABLE)

45526-KK1-771

Unavailable

11

PIN, ADJ. (NOT AVAILABLE)

45527-MG3-006

Unavailable

12

MASTER CYLINDER SET

45530-HB9-006

Unavailable

12

MASTER CYLINDER SET This part replaces 45530-MG3-305.

45530-HB9-006

Unavailable

13

LEVER, R. HANDLEBAR This part replaces 53175-MG3-000.

53175-MG3-405

Unavailable

14

GUARD, R. KNUCKLE *R119* (FLASH RED) (NOT AVAILABLE)

53180-KF0-770ZA

Unavailable

15

BOLT, HANDLE LEVER PIVOT

90113-KF0-770

$5.73

16

COLLAR (6X4)

90127-KF0-770

$3.42

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

17

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$11.02

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, PAN (6X25)

93500-06025-0A

$1.49

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49
