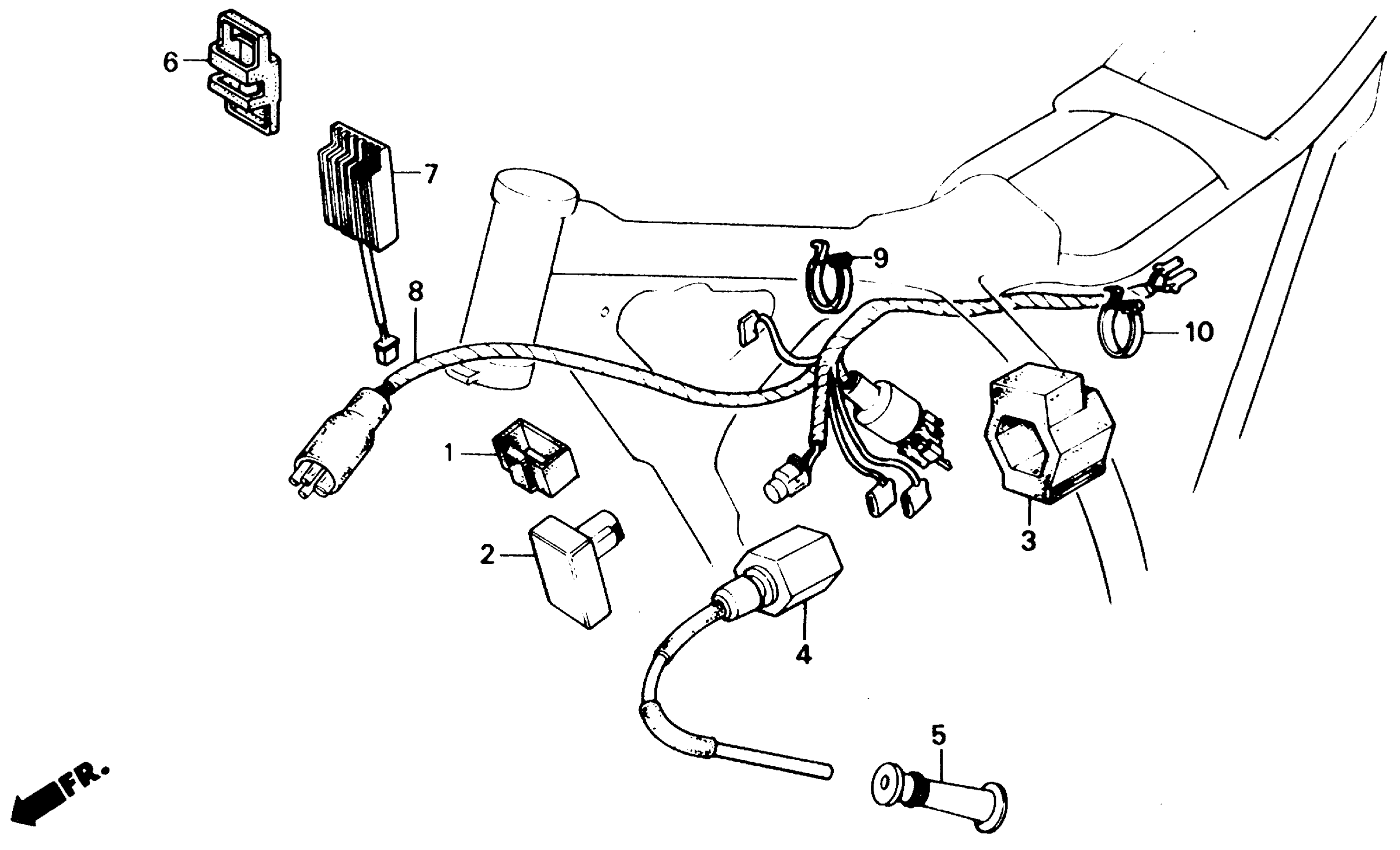

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$6.31

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KF0-010

$6.31

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KK0-003

Unavailable

3

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

4

COIL, IGNITION This part replaces 30510-KK0-000.

30510-MK4-405

$80.38

4

COIL, IGNITION

30510-MK4-405

$80.38

5

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$18.93

5

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$18.93

5

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$18.93

8

WIRE HARNESS This part replaces 32100-KK0-000.

32100-KK0-010

Unavailable

9

BAND, WIRE (NOT AVAILABLE)

32161-MA0-000

Unavailable

10

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

10

BAND B1, WIRE

32161-404-000

$2.23
