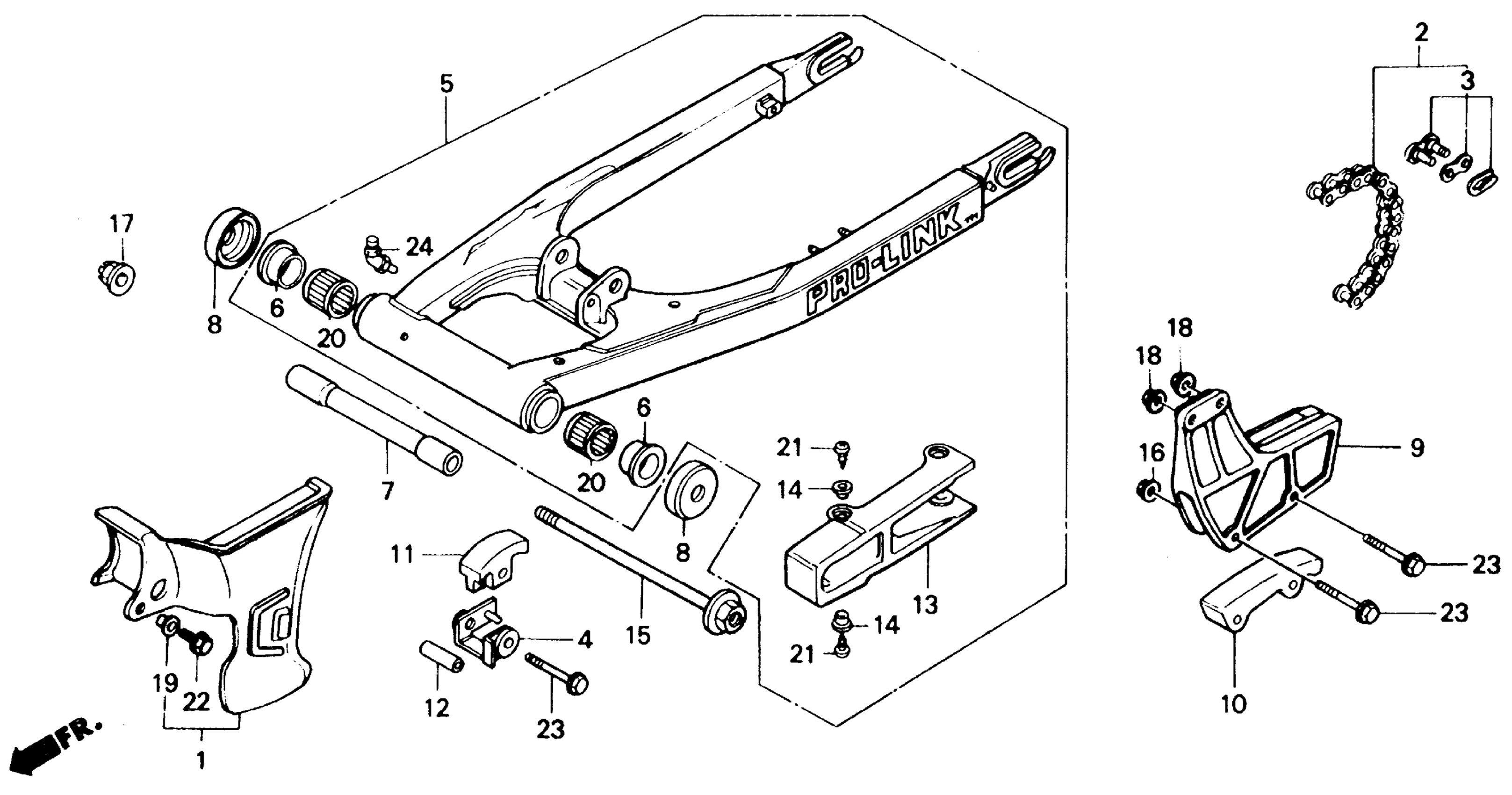

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 SWINGARM 84-85 Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-KK0-000

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KK0-003.

405W3-MN1-505

Unavailable

2

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-KK0-005.

405W3-MN1-505

Unavailable

3

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KF0-005

Unavailable

3

MASTER LINK (DAIDO)

40531-KF0-771

$5.05

4

STAY, TENSIONER

50143-MA0-770

Unavailable

5

SWINGARM ASSY., RR. (WOL) (NOT AVAILABLE)

52100-KK0-000

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-KK0-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

9

GUIDE, CHAIN

52146-KT0-770

Unavailable

9

GUIDE, CHAIN This part replaces 52146-MG3-010.

52146-KT0-770

Unavailable

10

SLIDER, CHAIN GUIDE

52147-KF0-000

$30.97

11

SLIDER, CHAIN (NOT AVAILABLE)

52155-KK0-005

Unavailable

12

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

13

SLIDER, CHAIN (OIRESU) (NOT AVAILABLE)

52170-KF0-003

Unavailable

13

SLIDER, CHAIN (OIRESU) This part replaces 52170-KF0-005.

52170-KF0-003

Unavailable

14

COLLAR, CHAIN SLIDER

52171-MC4-000

$4.99

15

BOLT, SWINGARM PIVOT (SOURCE: VINTAGE PARTS INC.)

90121-KK0-000

Unavailable

16

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

17

NUT, U (14MM)

90305-GE8-003

$3.86

18

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

18

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

19

WASHER (6X20)

90512-300-000

$3.08

20

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

20

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

21

SCREW, TAPPING (6X12)

93901-26110

$1.49

22

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

22

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

23

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

23

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

24

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
