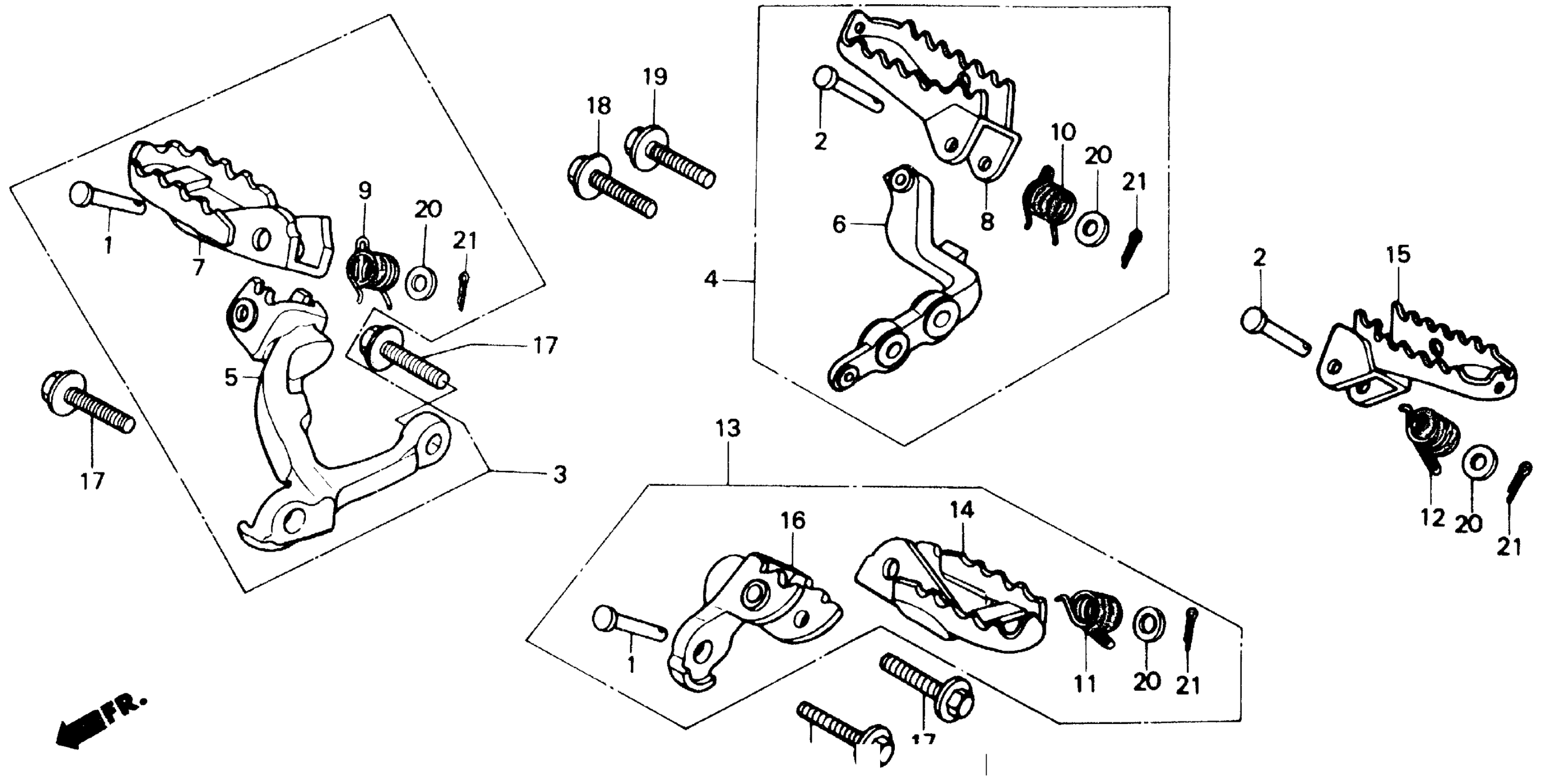

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 STEP Diagram

PIN, STEP BAR JOIN This part replaces 50603-KA3-710.

50603-KL4-000

Unavailable

PIN, STEP BAR JOIN

50603-KL4-000

Unavailable

ARM ASSY., R. STEP *R119* (FLASH RED) (NOT AVAILABLE)

50610-KK0-000ZA

Unavailable

ARM, R. STEP *R119* (FLASH RED) (NOT AVAILABLE)

50615-KK0-000ZA

Unavailable

STEP, R. (NOT AVAILABLE)

50616-KK0-000

Unavailable

SPRING, R. STEP RETURN (NOT AVAILABLE)

50617-KK0-000

Unavailable

SPRING, L. STEP RETURN (NOT AVAILABLE)

50618-KK0-000

Unavailable

ARM ASSY., L. STEP *R119* (FLASH RED) (NOT AVAILABLE)

50620-KK0-000ZA

Unavailable

STEP, L.

50626-KK0-000

Unavailable

ARM, L. STEP *R119* (FLASH RED) (NOT AVAILABLE)

50642-KK0-000ZA

Unavailable

BOLT, FLANGE (10X40) This part replaces 90211-KF0-770.

90211-KT0-770

$4.59

BOLT, FLANGE (10X45)

90211-KT0-770

$4.59

WASHER (10.2MM)

90401-430-000

$1.59

PIN, SPLIT (2.0X15)

94201-20150

$1.04
