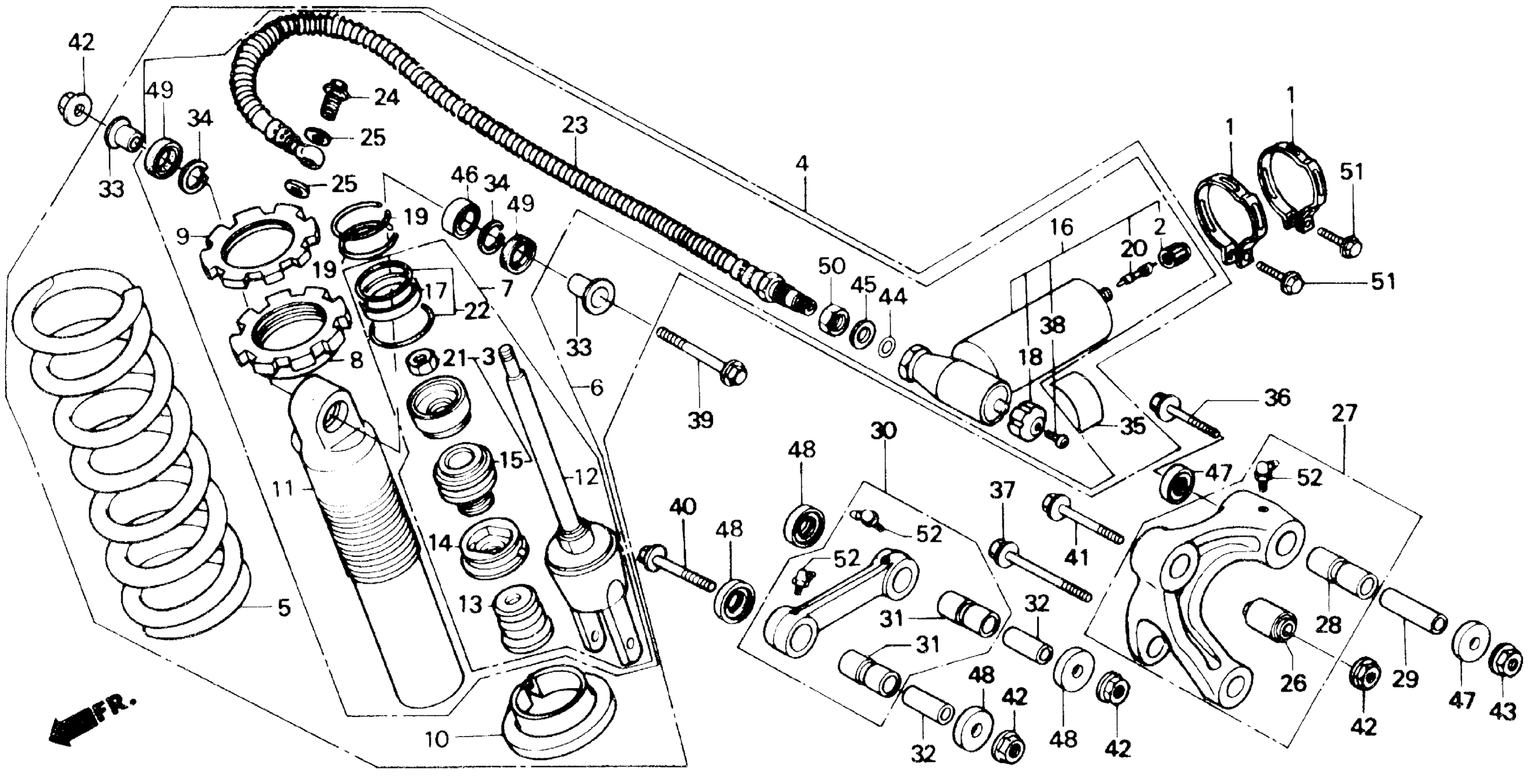

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 SHOCK ABSORBER 84-85 Diagram

BAND, SUB-TANK (NOT AVAILABLE)

50252-KK0-000

Unavailable

CAP, AIR VALVE

51453-KK0-004

$4.46

CASE & NUT SET, ROD GUIDE (NOT AVAILABLE)

524A2-KA3-731

Unavailable

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-KK1-004

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52401-KK1-004.

52401-KK1-771

Unavailable

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-KK0-004.

52410-KK0-014

Unavailable

ROD, PISTON (NOT AVAILABLE)

52421-KK0-004

Unavailable

SEAT, SPRING (UPPER) (KAYABA) (SOURCE: VINTAGE PARTS INC.)

52422-KA3-731

Unavailable

NUT, ADJUSTER (NOT AVAILABLE)

52423-KA3-731

Unavailable

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-KA3-731

Unavailable

CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)

52425-KK0-004

Unavailable

ROD (NOT AVAILABLE) This part replaces 52426-KK0-004.

52426-KT0-671

Unavailable

RUBBER, BUMPER (NOT AVAILABLE)

52427-KK0-004

Unavailable

CAP, CASE (NOT AVAILABLE)

52428-KA3-731

Unavailable

CASE, ROD GUIDE (KAYABA) (NOT AVAILABLE)

52429-KA3-731

Unavailable

SUB-TANK ASSY. (NOT AVAILABLE) This part replaces 52430-KK0-004.

52430-KK0-014

Unavailable

RING, PISTON (KAYABA) (NOT AVAILABLE)

52431-KA3-731

Unavailable

DIAL, SUB-TANK (NOT AVAILABLE)

52433-KK0-004

Unavailable

RING, SNAP (NOT AVAILABLE)

52435-KA3-731

Unavailable

CORE, VALVE

52437-KA3-731

Unavailable

NUT, HEX. (12MM)

52438-KA3-731

$3.10

O-RING SET (KAYABA) (NOT AVAILABLE) This part replaces 52439-KA3-731.

52437-KA3-832

Unavailable

HOSE, JOINT (NOT AVAILABLE)

52440-KK0-004

Unavailable

BOLT, OIL (NOT AVAILABLE)

52441-KA3-731

Unavailable

WASHER, OIL BOLT

52442-KA3-731

$2.34

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

ARM, SHOCK ABSORBER This part replaces 52460-KK0-000.

52460-KK0-010

Unavailable

BUSH, CUSHION ARM (NOT AVAILABLE)

52462-KF0-003

Unavailable

COLLAR, CUSHION ARM PIVOT (NOT AVAILABLE)

52463-KF0-000

Unavailable

ROD ASSY., RUBBER CONNECTING (NOT AVAILABLE)

52470-KF0-010

Unavailable

BUSH, CUSHION CONNECTING ROD

52472-MA0-013

$29.48

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

COLLAR, SHOCK ABSORBER (UPPER)

52486-KA3-731

Unavailable

RING, STOPPER

52487-KA3-731

Unavailable

LABEL, RR. DAMPER WARNING (NOT AVAILABLE) This part replaces 87516-KA3-741.

87516-KT1-901

Unavailable

BOLT, FLANGE (12X90) (SOURCE: VINTAGE PARTS INC.)

90128-KF0-000

Unavailable

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 90137-KK0-004.

52448-KA3-731

Unavailable

BOLT, FLANGE (10X83) (NOT AVAILABLE)

90150-KK0-000

Unavailable

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

BOLT, FLANGE (10X58)

90153-KK0-000

$7.27

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

O-RING (1.9X9.8) (NOT AVAILABLE)

90351-KK0-004

Unavailable

WASHER (10MM) This part replaces 90501-KK0-004.

90501-KK6-700

Unavailable

BEARING, SPHERICAL (14MM) This part replaces 91077-KA3-731.

91077-KN5-004

$22.62

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-711.

91262-KR8-750

Unavailable

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-712.

91262-KR8-750

Unavailable

SEAL, CUSHION ARM PIVOT (ARAI)

91262-KR8-750

Unavailable

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI) This part replaces 91262-KA3-711.

91262-KA3-712

$11.62

SEAL, CUSHION CONNECTING ROD PIVOT (ARAI)

91262-KA3-712

$11.62

DUST SEAL, RR. SHOCK (UPPER) (NOT AVAILABLE)

91351-KA3-731

Unavailable

NUT, HEX. (12MM)

94002-12000-0S

$2.06

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
